New Speaker Project: 'The Buyout Blues'

Collapse
X
  • Filter
  • Time
  • Show
Clear All
new posts

  • New Speaker Project: 'The Buyout Blues'

    A few weeks before this year's MWAF I went through all my speaker stuff and noticed that I had a lot of speakers. I got great deals on all of them, so I'm not having buyers remorse, but I told myself once I get a little better at measuring/designing crossovers, I'd make some speakers out of some of this stuff. Well the time has come.

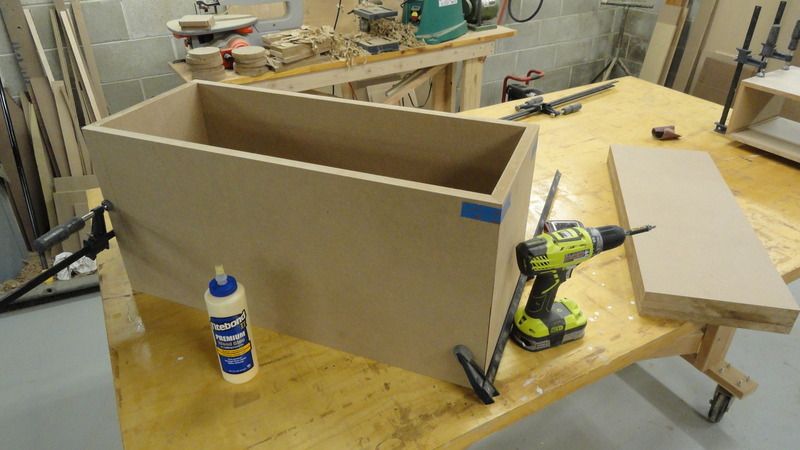

    The cabinet is about 1.4 cu. ft. with a .3 cu. ft sub-enclosure for the MTM section with the blue poly mid-woofs.



    The box on the right is actually two "L" shaped sub-enclosures sharing the same clamps. They will become the sub-enclosure for the MTM section.






    There will be one 10" woofer per speaker. I have four of the blue mid-basses and a few of the tweeters, which I know are probably not the greatest things since sliced bread... but they're part of the buyout theme, so they're getting used.

    Cool thing is I got these drivers at various tent sales from the past 4-5 years.

    10" woofs were $4/ea. Blue mid-woofs were $2.50 ea., tweets probably $1/ea. So I'll have a grand total of about $20 total in drivers in this pair.

    The woofers didn't want ported, so they will be sealed with just over 1 cu. ft of volume to work with. The system will have an F3 of 41 Hz., F6: 35 Hz, F10: 28 Hz. I guessed on some of the specs, but I figured on 50 watts power handling for the woofers and 5-6 mm. of Xmax. They don't look too bad, decent sized rubber surround, attractive cone, decent magnet. I'm glad I found these in 2011!

    I may end up putting a metal grill on these and taking them to school to put in my classroom. I ran out of Gorilla glue, so I can't go any further today, but at least I've got all the panels cut out. Tomorrow I'll get some poly glue and start assembly. 45 degree miters on the top, straight butt joints on the bottom. The front and back will just set inside the cabinet and sit flush. Probably no walnut veneer for these. :( Too expensive for school, probably just paint. Maybe I'll try duratex or cover with charcoal fabric, that stuff is pretty durable.

    This will by far be the cheapest (in drivers) pair of speakers I've ever built; I think my wife will like that.
