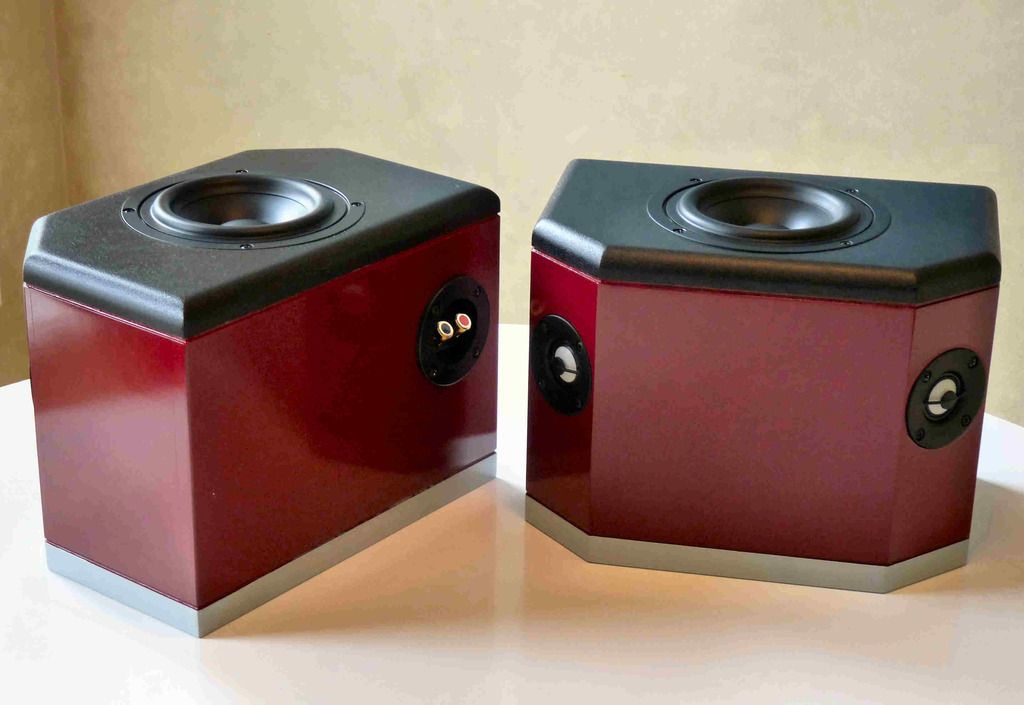

The Relexions: an Allison 4 inspired speaker design

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • The Relexions: an Allison 4 inspired speaker design

    http://projectgallery.parts-express....ts/reflexions/


    Design Goals:Driver Selection:

    Woofer: The proposed woofer is the

    Tweeter: The dual tweeters are the . These tweeters have the benefit of a very small footprint, with neodymium magnets and a small face plate and should support a crossover point in the 2.3-3 kHz range. They will be wired in series as they are nominally 4 ohm drivers.

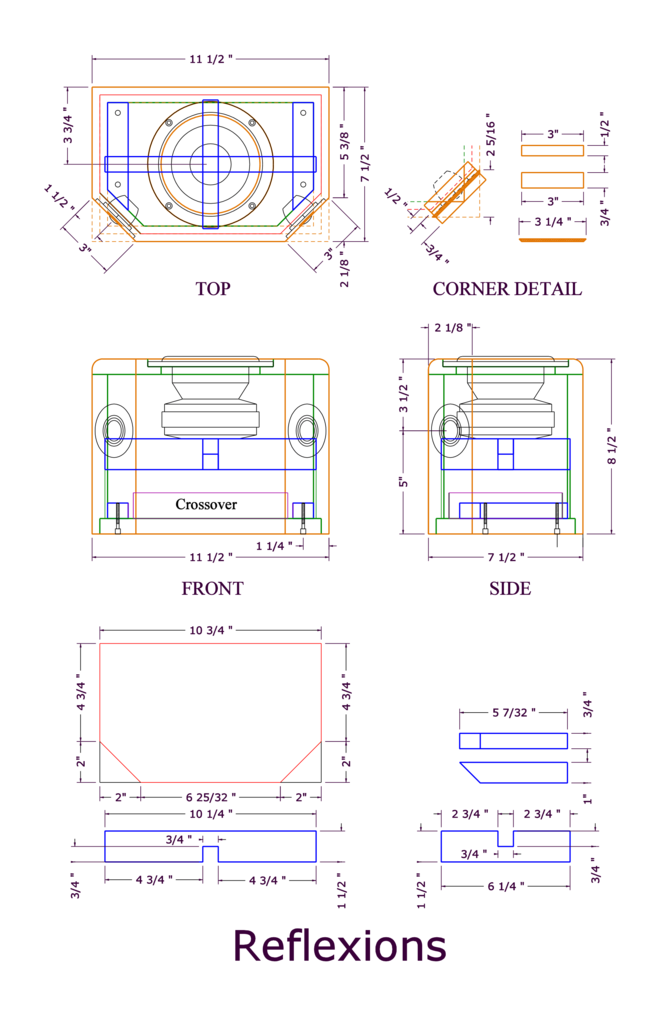

    Enclosure Design:

    Enclosure Assembly and Finish:

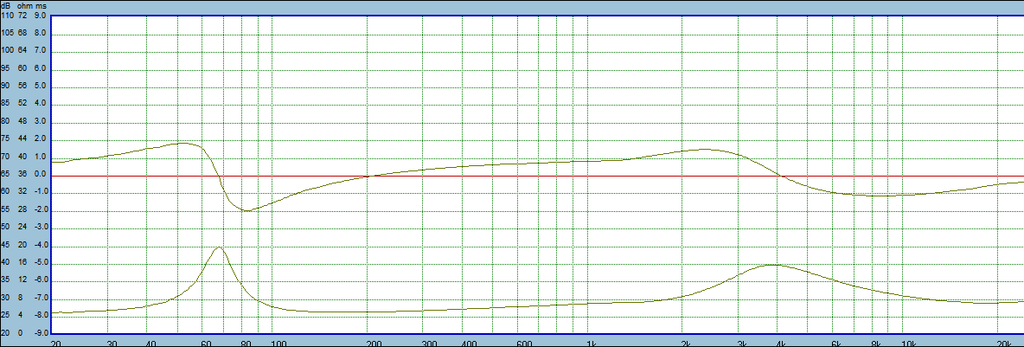

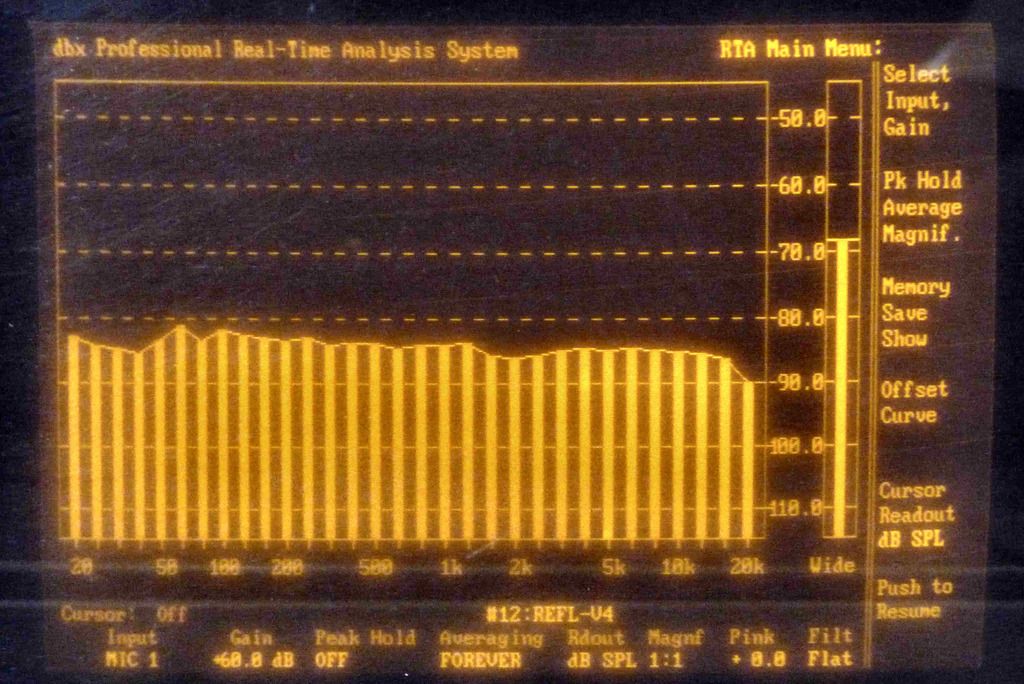

    Crossover Design:





    Conclusion:
    Dan N.

  • #2
    Those are neat. When you were gathering FR plots for the xover how did you position the mic?
    A mains
    The Ventures
    Open Invit8tions
    RSR
    Sound Troopers
    Acorns
    442
    DGBG's
    The Monuments

    Comment


    • #3
      I'm curious as well . Thanks

      Comment


      • #4
        Originally posted by 6thplanet View Post
        Those are neat. When you were gathering FR plots for the xover how did you position the mic?

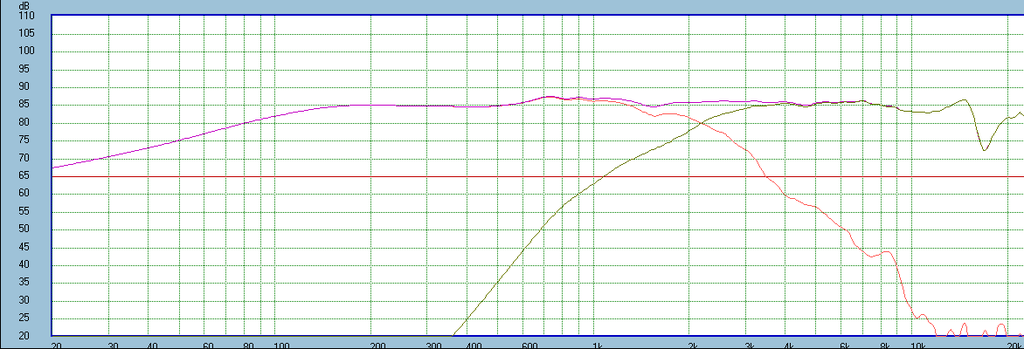

        I took MLS FR plots at the height of the woofer baffle, about 1 meter away, so they were essentially 90 degrees to the woofer.
        Dan N.

        Comment


        • #5
          Here are some additional construction pics:

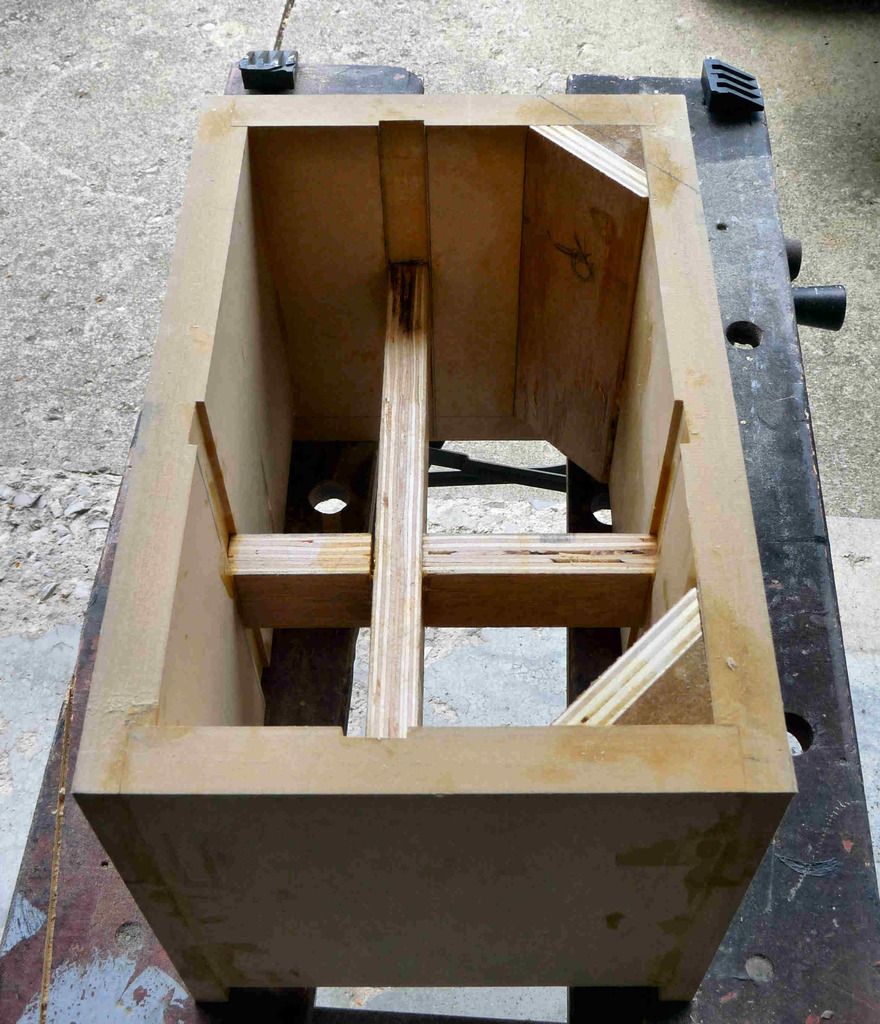

          Basic Denova box assembled with 45 degree fillers for corners glued in, cross braces in place, viewed from bottom of box.


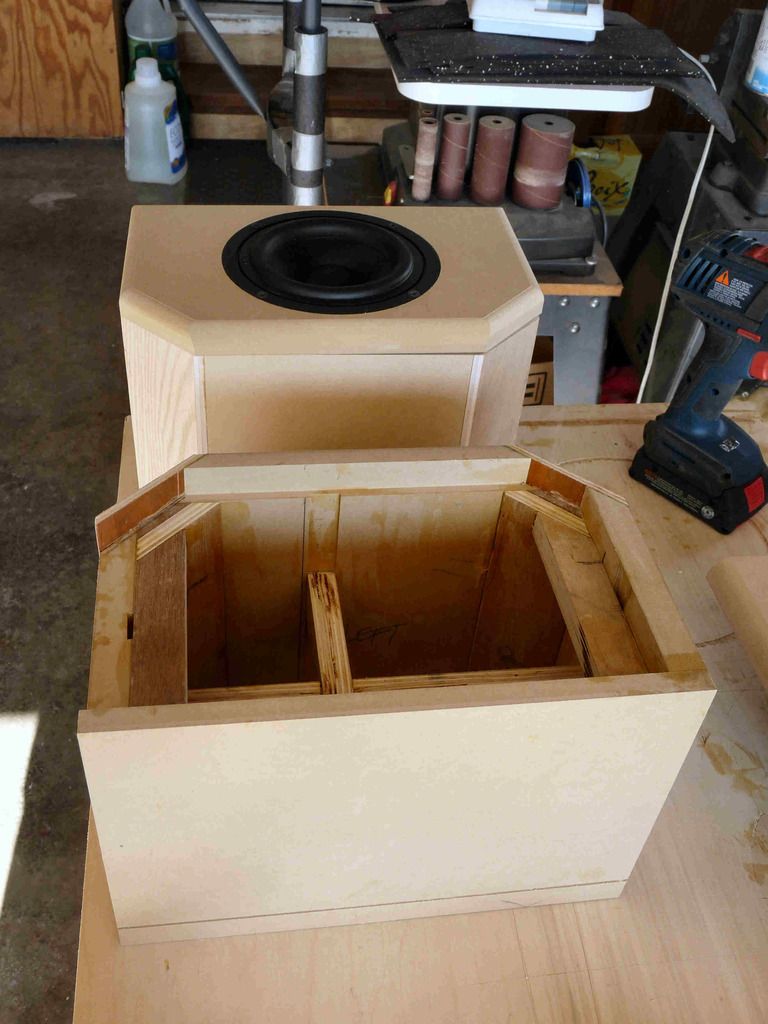

          Bottom of box with removable panel slid in place.


          Woofer baffle with coves cut to allow driver to breathe.


          Woofer baffle added with driver dropped in place.



          Dan N.

          Comment


          • #6
            So 90* to the woofer baffle, woofer pointed up and between the tweeters?
            A mains
            The Ventures
            Open Invit8tions
            RSR
            Sound Troopers
            Acorns
            442
            DGBG's
            The Monuments

            Comment


            • #7
              Right on, brotha!
              Dan N.

              Comment


              • #8
                I like it Dan , neat build!

                Comment


                • #9
                  O Sent from my iPhone using Tapatalk

                  Comment


                  • #10
                    Jacoolski Danooski, if I had three arms I'd give it three thumbs up, so your stuck with two.
                    A mains
                    The Ventures
                    Open Invit8tions
                    RSR
                    Sound Troopers
                    Acorns
                    442
                    DGBG's
                    The Monuments

                    Comment


                    • #11
                      Nice cabinet work.

                      Comment


                      • #12
                        Cool Dan! Kind of reminds me of the Sonabs my brother had back in the 70s.
                        Are you using Bondo to seal the MDF?

                        Comment


                        • #13
                          Interesting design for height speakers, too.
                          --
                          "Based on my library and laboratory research, I have concluded, as have others, that the best measures of speaker quality are frequency response and dispersion pattern. I have not found any credible research showing that most of the differences we hear among loudspeakers cannot be explained by examining these two variables." -Alvin Foster, 22 BAS Speaker 2 (May, 1999)

                          Comment


                          • #14
                            Very nice, interesting design, I remember the allison 4. How do you like those tweeters? I have a pair that I haven't even taken out of the box yet.

                            Comment


                            • #15
                              Originally posted by Pallas View Post
                              Interesting design for height speakers, too.

                              Yes, if closer to the ceiling they could be mounted with woofer down with something like a french cleat.
                              Dan N.

                              Comment
