    I got started today on my "Rock It" speaker design.

    Here is the final design I came up with. The burgundy will be wood. The light gray will be brushed stainless steel and the black will be black paint. I plan on coating all the surfaces with pour on epoxy. It will have a high gloss shine.



    Paul K. designed an MLTL for me thanks Paul. That will be in the bottom section of the speaker.



    Here is what I have in PCD. Once I build the boxes I plan on taking measurement with the drivers in the boxes and recheck my sim.




    I cut up a 3" x 6" x 9' piece of hickory for the sides but didn't quite have enough, so I cut up a 4" x 4" x 6' piece of black walnut. I put it in between the hickory to make my panels wide enough.

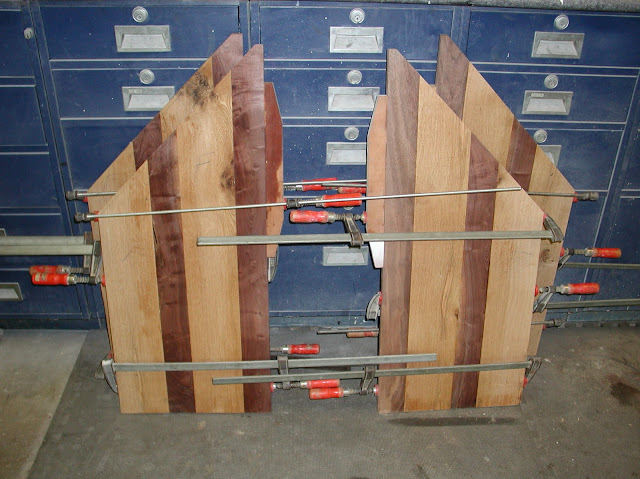

    Here they are glued up.




    This should be a fun build and a really good learning experience.
