    Originally posted by dian1511 View Post
    Wow Dave,

    How do you do it? You do difficult, multiple angled cuts, keep your workshop organized and clean, and you're fast! I really need to see my therapist. Sometimes it takes me a whole week just to obssess about how and where to drill holes for the screws.

    BTW, might there be an issue with wood movement? Perhaps I missed this in this or your design thread.

    Great work!

    Darren
    Thanks Darren. I would have to say the trickiest part of the multi angles is when I need to cut the opposite side and the miter box only flips one way. I really wish I had bought the Hitachi miter box that flips both directions. Leaves me scratching my head sometimes. I had to do a lot of the miters free hand on the table saw because of this and not enough extension to make a full cut. I will just say there were a few cuts that really made me nervous! Especially the top pieces. I will just say there was a lot of "don't try this at home cuts".
    There is a few cross grain glue ups and I am sure I will see some movement but I don't think enough to hurt anything. All the wood I used has been drying about 15 years or more and all the end glue ups are at least at 45 degree and plus cut on a 45 degree miter. I used the same wood as I did on my Mini Surround build. I did some cross grain gluing. So far no movement. With the wood grain direction change if there is some it will be hard to spot.

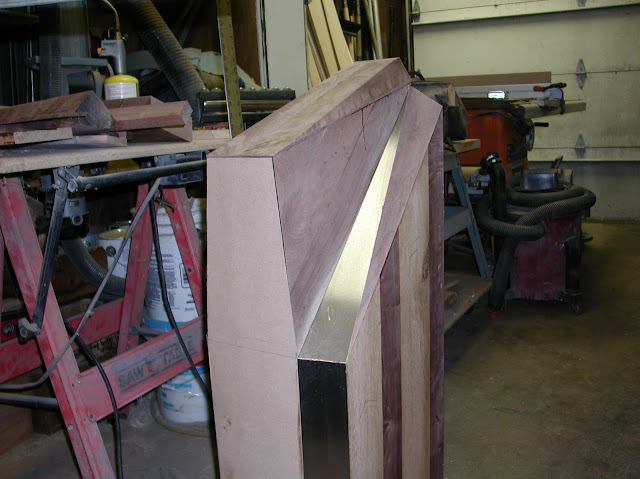

    Here are the tops cut and glued on.

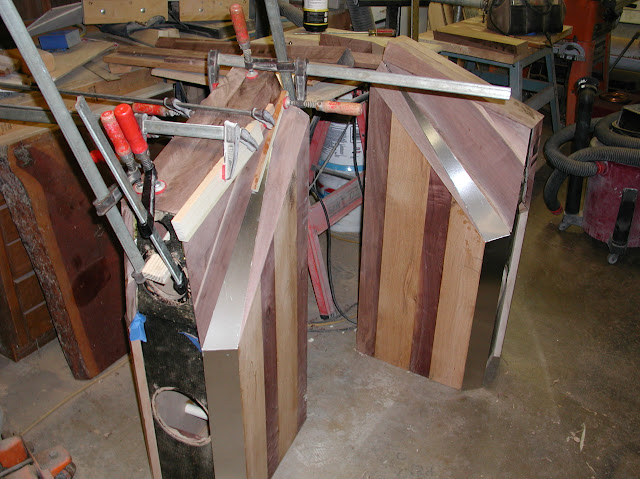

    Tops with removable baffle in place. Next I will need to shape the tops to the sides and fine tune the front baffle to fit more evenly. then cut the driver holes.

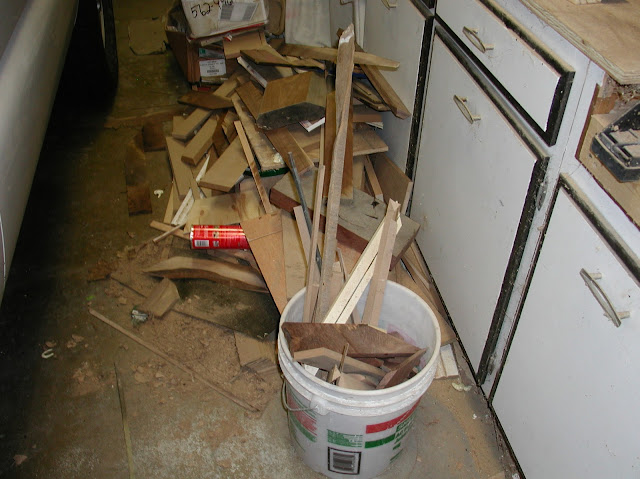

    Just so you don't get the false impression that I keep a super clean shop. This is mostly scrape from this speaker build and its going to get even uglier. I start a custom made cupola with windows for on top of a "witches hat" roof in my shop tomorrow.




    Just checked today on the stainless laminated panel since I ran short. A piece 4" x 8' runs $140. crap! I need a 3" x 20" piece. So much for this build being left over stuff from jobs.
    Dave
