    I've been commissioned to build a boombox similar to my original COUGAR but at a lower price point. Enter COUGAR II.

    The design will be very similar -- double MTMs with a sub in the middle powered by a car head unit and 4-channel auto amp. I won't be doing a slanted front baffle or flush mounting any drivers.

    Head unit - Pioneer DEH-P8400BH. Great unit with three sets of 4v RCA outs, Pandora control, CD, HD radio, Bluetooth, yada yada.

    AMP - Precision Power PPI P900.4. Class-D fullrange amp has bandpass XO capability which I will be utilizing (25hz high pass on both the MTM and SUB and perhaps a 150Hz low pass on the sub).

    The MTMs are 5.5" Seas Prestige L15RLY/P + Tang Band 25-302SH. Tuned to 47Hz via slot port in 0.40ft^3. F3 = 68Hz. Modeled with 100w it will hit 108db without excursion problems. I will also be enabling 25Hz high pass filters from the amp which will help to keep the drivers out of danger territory at frequencies below Fs. The eventual owner is a DJ, so I suspect this box will be driven very hard at times. Better safe than sorry.

    After bracing and whatnot, there's just over 2ft^3 of subwoofer volume for the JBL GTO804. The subwoofer compartment will be tuned to 30Hz via the PE buyout 11" flared port. F3 = 28Hz. Channel 3&4 of the amp will be bridged for the sub. Modeled at 200w it should output 108db with no worries.

    Since I'm not doing a slanted baffle, this is going to resemble a large monkey coffin.



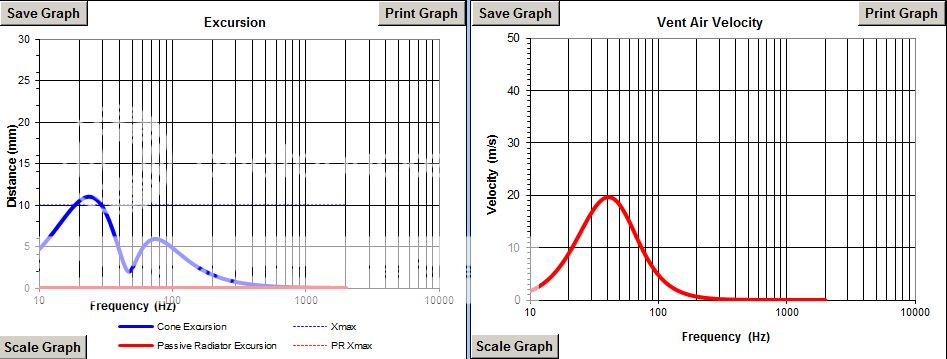

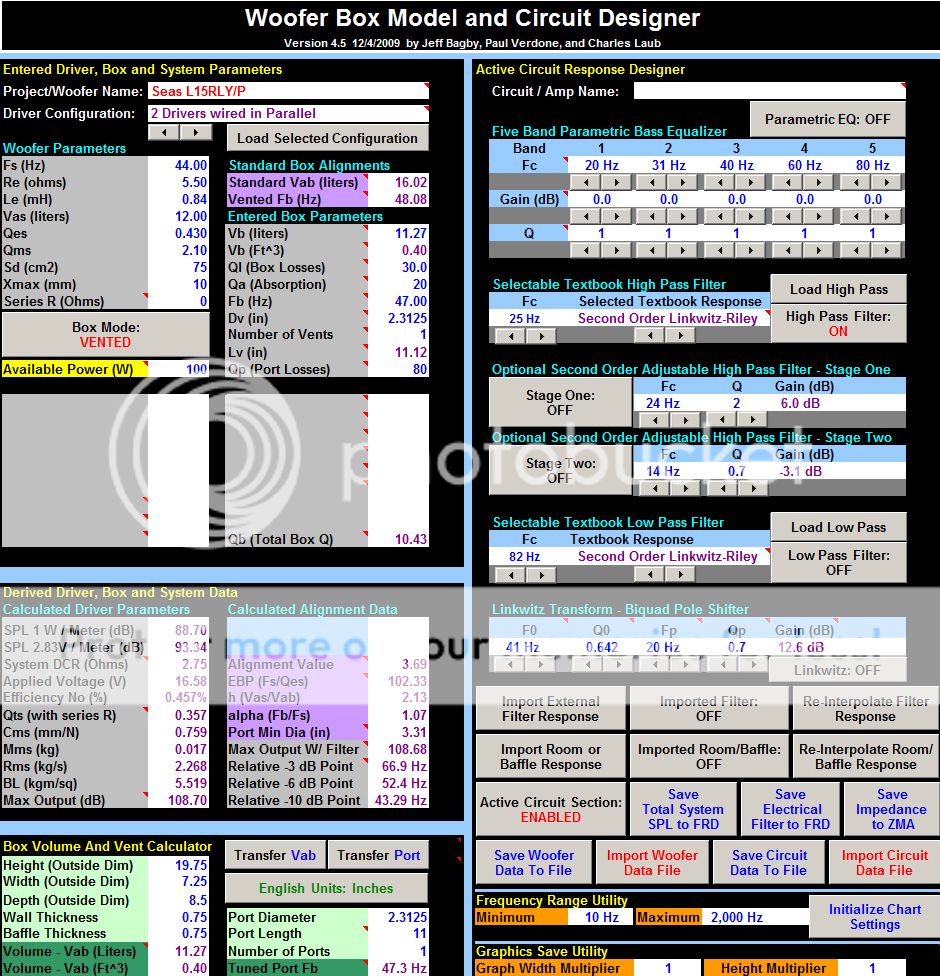

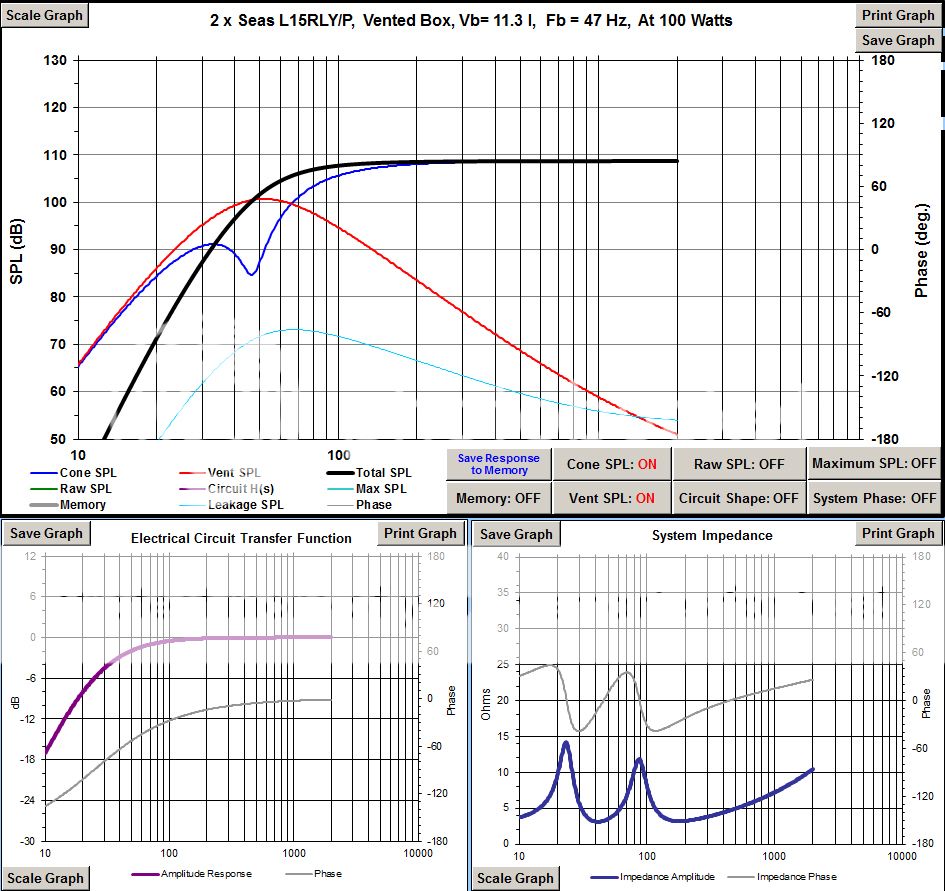

    Here are the sims - MTM





    SUB

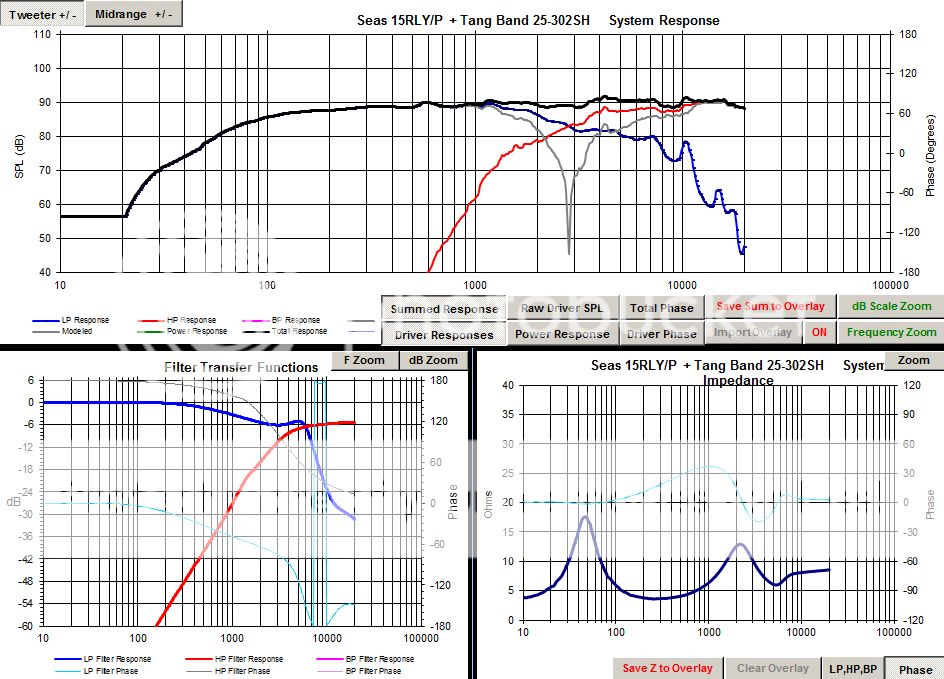

    I'm doing a second order XO at approx 2.9Khz. 9 elements in total including a notch on the woofer and L-pad on the tweeter.

    Last edited by bkeane1259; 11-26-2013, 01:05 AM.
    Bryan K.

    Midwest Audio Club

    Speedster | Sub Attachť | The Wildeman | Sean's NLA Towers | CO‹GAR, COUGAR II and CO‹GAR JR | Triton | Lithium | J-Boom | Trym MLTL | Docere MLTL

  • #2
    Re: COUGAR II - boombox build

    I'm not going to go into huge detail on the build out and bore everyone with a million pictures. The cabinet is pretty straight forward - rectangular box using 3/4" ply and 3/4" internal panels and braces. I also used some MDF for internal bracing.





    The slot ports are 11" long and the equivalent of a 2.3125" round port (5.75" x 0.75").



    A little bit of flush-trimming:



    Front of enclosure:



    Rear of enclosure:



    Using the PE 22" x 15" preformed metal grill.



    Getting ready to route out the driver holes:





    I drilled a bunch of holes in the slot port opening which I will later flush trim to the internal portion of the slot port.



    Radio mount:



    Had to notch out the subwoofer cutout so the terminals could pass thru. Wasn't expecting that.



    Finally got a REAL garage heater. No more dinky ceramic thinggy. This propane dual head jobber is amazing. I don't know why I didn't buck up for one of these years ago.



    Chamfered midbass cutouts:



    Cutout for subwoofer port and some more bracing. I did a T brace in the back which will also hold the braces for the threaded inserts so the rear panel can be removable. I cut a few 45-degree braces to tie some of the panels together. The cabinet is pretty solid.





    Routed out some rectangular openings for the Penn-Elcom spring loaded handles. The handle mounts only require like 6mm of mounting depth, so I did not cut all the way thru the side panels.




    Bryan K.

    Midwest Audio Club

    Speedster | Sub Attachť | The Wildeman | Sean's NLA Towers | CO‹GAR, COUGAR II and CO‹GAR JR | Triton | Lithium | J-Boom | Trym MLTL | Docere MLTL

    Comment


    • #3
      Re: COUGAR II - boombox build

      I might have to experiment with the subwoofer compartment stuffing a bit but I am going to use this poly-fill from an old pillow, including the mesh casing. It's about 2.5lbs of stuffing which I will jam behind the main brace and above the monster port tube.



      In the MTMs I used BH5, Ultratouch Denim from HD, and some PE Sonic Barrier. Many thanks to CraigK for tossing the BH5 my way at Iowa. You da man.



      I clamped down the front baffle and flush trimmed the MTM slot port openings.



      The Tang Band tweeter is a major PITA in so far as the cutout is concerned and I'm not even flush mounting it. It will not fit in a circular hole, so I notched out the corners and the terminals with a small flush trim bit plunged so that the bearing doesn't hit anything. I hate doing freehand router work, but it wasn't that bad at all actually.



      The tweeter flange is super thin. It almost looks flush-mounted, but nah...it ain't. The truncated faceplate makes it easy to squeeze all the drivers under the preformed metal grill. All the drivers have to fit within a 22" x 15" space.



      That's all for now. I'll post more progress in a couple days.
