    Default Details on building the speaker below

    Some expressed interest in building the powered monitors I pictured below. Here is the pic again.



    Start with the Parts Express RS722 kit. You won't use all of the crossover parts. But that's OK, the kit is still cheaper, and the baffle comes precut, it has pretty much everthing you need in it, and who can't use a few parts to put back and have on hand?

    Next pick-up a pair of these 55 Watt biamp plates from MCM (Hey, PE - you guys really need to carry something like this, or a small fullrange amp, or both. Don't make us go to MCM for this stuff )

    http://www.mcmelectronics.com/product/50-6277

    Cut your holes to mount the amplifier modules

    OK. Now after measuring the drivers on the baffle and modeling the 4th order active crossover in the plate amp I arrived at the following response shaping circuit that I placed between the amp and speakers.




    The cap on the tweeter was just for protection against any turn-on thumps, but I don't hear any from this amp, so it may not be necessary. I used it anyway though.

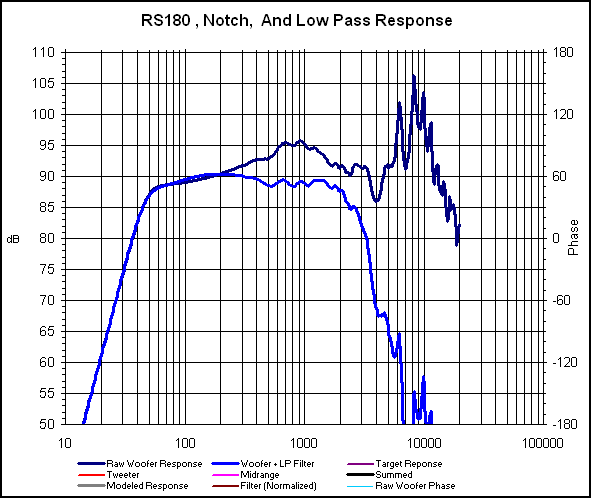

    The first notch filter on the woofer combines with the driver's response and impedance to compensate for baffle step, flatten the baffle bump at 1khz and give a little lift at 2kHz, which is needed to get a flat summation at the crossover. The second notch (.20mH and 2.2 uF) suppresses the cone break-up. However, I ended up removing it. I found that the 4th order crossover did a good job here all by itself, and I got a very flat summation without using it, and felt the midrange was at a point where I couldn't improve on it anymore anyway. The reason I left it in the schematic was because I know some people don't like to use these drivers without dealing with this area. I didn't find it necessary though.

    With everthing done I set the tweeter knob to the max and backed the woofer knob off about 2/3 of the way to get a flat response. These speakers have an exceptional midrange quality, and sound very good across the board. The only lack the deepest bass, but would work well in a home theater system with a sub.

  2. #2
    Join Date
    Nov 2006
    Location
    Chicagoland
    Posts
    4,042

    Default Re: Very cool!

    Nice step-by-step walkthrough! I never realized making a pair of biamped pair of studio monitors could be so straightforward. Thanks once again for your addition to the collective DIY knowledge!

    -Paul
    Come Get Down And Eat Best Food, Sharp. Cee? Sharp.

    Paul Carmody's DIY Audio Projects

  3. #3
    Join Date
    May 2008
    Location
    Winnipeg, Manitoba, CANADA
    Posts
    96

    Default Re: Details on building the speaker below

    Jeff,

    Very nice work. That amp module looks decent for the price. You would be hard pressed to DIY the amp for that cost.

  4. #4
    Join Date
    Sep 2005
    Location
    Kokomo, Indiana
    Posts
    7,260

    Default Re: Very cool!

    Quote Originally Posted by undefinition View Post
    Nice step-by-step walkthrough! I never realized making a pair of biamped pair of studio monitors could be so straightforward. Thanks once again for your addition to the collective DIY knowledge!

    -Paul
    All it takes to make almost any two-way work with this amp is the tuning of the parallel notch in series with the woofers, and this is pretty much a must. If you take the response of about any woofer on a baffle and apply a textbook 4th order lowpass to it you will find pretty decent bahavior at the crossover point but a broad peak will exist centered around 800-1kHz due to the baffle diffraction hump lying between the baffle step and the lowpass roll-off. Here's the response with and without the active/passive filters.



    The is the key for about any woofer on a small baffle.

    Jeff

  5. #5
    Join Date
    May 2008
    Location
    Victoria, BC
    Posts
    595

    Default Re: Details on building the speaker below

    Quote Originally Posted by Jeff B. View Post
    ...
    OK. Now after measuring the drivers on the baffle and modeling the 4th order active crossover in the plate amp I arrived at the following response shaping circuit that I placed between the amp and speakers.
    So for modelling you just used a textbook 4th order LR at 3K and went from there to design the notch(es)?

    This looks like a pretty cool project. I'm impressed with how simple the filter/crossover network is.

  6. #6
    Join Date
    Feb 2006
    Location
    Berkeley, CA
    Posts
    3,330
    Blog Entries
    3

    Default Re: Details on building the speaker below

    You might like the sound even more (and eliminate any question about need for a notch filter) if you spend a couple bucks on the necessary resistors and lower the crossover to 1600-1800 Hz. The RS180 gets quite nasty in HD above 2kHz.. while the RS28 is quite clean in that range.

    Putting the baffle step correction in the box is good if you know where the speaker is going to be placed, but for HT use many receivers have a graphic equalizer built in (I'm thinking particularly almost all the Yamahas) that can do that correction for freestanding or against-the-wall without any additional parts at all.

  7. #7
    Join Date
    Aug 2007
    Location
    Howell NJ
    Posts
    6,993

    Default Re: Details on building the speaker below

    Quote Originally Posted by gmilitano View Post
    Jeff,

    Very nice work. That amp module looks decent for the price. You would be hard pressed to DIY the amp for that cost.
    It is a great amp for the price. Phil

  8. #8
    Join Date
    Feb 2006
    Location
    Berkeley, CA
    Posts
    3,330
    Blog Entries
    3

    Default Re: Details on building the speaker below

    Quote Originally Posted by philiparcario View Post
    It is a great amp for the price. Phil
    The 3886 makes a great amp at *any* price, with enough power to drive almost any mid or tweeter. Two of them plus a LR4 crossover for less than $90 ? ? ? The result is cleaner than any amp followed by a passive crossover at any price . . .

  9. #9
    Join Date
    Aug 2007
    Location
    Howell NJ
    Posts
    6,993

    Default Re: Details on building the speaker below

    Quote Originally Posted by Deward Hastings View Post
    The 3886 makes a great amp at *any* price, with enough power to drive almost any mid or tweeter. Two of them plus a LR4 crossover for less than $90 ? ? ? The result is cleaner than any amp followed by a passive crossover at any price . . .
    But wait there is more a master volume control , a tweeter volume control , a midwoofer volume control ,complete circuit diagram for download and the nicest quality stock two hole plug power cord I have ever seen. That is why I have 5 of them with 1 more for a spare. Phil

  10. #10
    Join Date
    Sep 2005
    Location
    KY, I-75, exit 76 is where you get off...
    Posts
    1,297

    Default Re: Details on building the speaker below

    PE had one of those amps to look at for awhile. They let it go in the tent sale where I swooped it up. A thread like this may be the ticket for them to reconsider.

  11. #11

    Default Re: Details on building the speaker below

    Does anyone have a schematic for the filter circuit? And practically speaking, how easy would it be to modify the active filter circuit-anyone have a photo of the pc board/inside of these amps?

    edit-nevermind. The circuit is posted as a pdf at Jeff's link.

  12. #12
    Join Date
    Sep 2005
    Location
    Kokomo, Indiana
    Posts
    7,260

    Default Re: Details on building the speaker below

    Quote Originally Posted by Deward Hastings View Post
    You might like the sound even more (and eliminate any question about need for a notch filter) if you spend a couple bucks on the necessary resistors and lower the crossover to 1600-1800 Hz. The RS180 gets quite nasty in HD above 2kHz.. while the RS28 is quite clean in that range.

    Putting the baffle step correction in the box is good if you know where the speaker is going to be placed, but for HT use many receivers have a graphic equalizer built in (I'm thinking particularly almost all the Yamahas) that can do that correction for freestanding or against-the-wall without any additional parts at all.
    Technically, I agree with you. I also wouldn't normally cross woofers this size in an MTM over at 3khz either. However.........in this case the midrange is as good as anything I have built. I was really quite surprised at how exceptional it was, as well as the overal tonal balance. I also could not detect any audible lobing issues. I had considered the change to a 2kHz crossover, but after listening to this one the customer and myself both agreed to just leave things as they were. By the way, if I model the response with a 2khz active filter you still have to have a notch filter to deal with the peak at 800-1kHz. I don't see any way around it, unless you use an equalizer like you suggested.

    In the passive crossover I designed for this speaker I ended up with a 1.7khz crossover (I did not go with the RS722 crossover, but came up with my own instead). In my small LS3/5a updates I used the RS28a and cross it at 1.8kHz in it. It sounds fabulous there too.

    Jeff

  13. #13
    Join Date
    Nov 2005
    Location
    Raleigh, NC
    Posts
    889

    Default Nice project.

    Jeff, thanks for doing this project. This is a perfect example of why several of us have been advocates for this amp module. If someone would work up some mods to allow a few alternative crossover points, this amp could be a real asset to someone that wants a first class system but dosen't want the hassle of building their own crossover. Anyone could build the simple notch you designed. Thanks again.
    Building it big and playing it loud! Because we all know size really does matter, and a little over compensation never hurt anyone.

  14. #14
    Join Date
    Sep 2005
    Location
    Reston, VA
    Posts
    1,831

    Default Re: Nice project.

    Quote Originally Posted by Todd G. View Post
    If someone would work up some mods to allow a few alternative crossover points...
    We already did that--see this post: http://techtalk.parts-express.com/sh...1&postcount=15
    The Excel version is attached. By changing resistors you can get just about any crossover point you like.
    50-6277.zip

    Something that bothered me about that amp is that according to the schematic the crossover isn't really a 4-pole LR filter, unless I made a mistake, which is quite possible. The tweeter filter is OK: two Butterworth filters each with a Q of .71. However, the woofer circuit has two Butterworth filters each with a Q of 1.12. If this is correct, there will be a noticeable peak on the woofer side. The picture shows the textbook LR filter in orange and the response with Q = 1.12 in red.
    Click image for larger version.

Name:	q-112.jpg
Views:	196
Size:	25.0 KB
ID:	52


    A DIY version of this amp is circuit #1 at this page:
    http://home.comcast.net/~neilrdavis/Plate_amps/
    You can change the crossover of this amp by swapping in different resistor packs. The parts list has a tab that helps you select the right pack. If you want to build this, just upload the PWB file to ExpressPCB. The parts list is probably out of date because the ROHS requirements forced vendors to change a lot of part numbers (this design is about 5 years old), so you might have to do some cross-referencing.

  15. #15
    Join Date
    Nov 2005
    Location
    Raleigh, NC
    Posts
    889

    Default Re: Nice project.

    Quote Originally Posted by neildavis View Post
    We already did that--see this post: http://techtalk.parts-express.com/sh...1&postcount=15
    The Excel version is attached. By changing resistors you can get just about any crossover point you like.
    50-6277.zip

    Something that bothered me about that amp is that according to the schematic the crossover isn't really a 4-pole LR filter, unless I made a mistake, which is quite possible. The tweeter filter is OK: two Butterworth filters each with a Q of .71. However, the woofer circuit has two Butterworth filters each with a Q of 1.12. If this is correct, there will be a noticeable peak on the woofer side. The picture shows the textbook LR filter in orange and the response with Q = 1.12 in red.
    Click image for larger version.

Name:	q-112.jpg
Views:	196
Size:	25.0 KB
ID:	52


    A DIY version of this amp is circuit #1 at this page:
    http://home.comcast.net/~neilrdavis/Plate_amps/
    You can change the crossover of this amp by swapping in different resistor packs. The parts list has a tab that helps you select the right pack. If you want to build this, just upload the PWB file to ExpressPCB. The parts list is probably out of date because the ROHS requirements forced vendors to change a lot of part numbers (this design is about 5 years old), so you might have to do some cross-referencing.
    Thank you. I don't know how I missed that before.
    Building it big and playing it loud! Because we all know size really does matter, and a little over compensation never hurt anyone.

  16. #16

    Default Re: Details on building the speaker below

    Jeff...just ran across your project and am interested to know if you have or could work out a filter like the above for the Modula MT...would love to try it out with the MCM amps and maybe a Fountek ribbon tweeter...thanks

  17. #17
    Join Date
    Sep 2005
    Location
    Kokomo, Indiana
    Posts
    7,260

    Default Re: Details on building the speaker below

    Quote Originally Posted by billschulte View Post
    Jeff...just ran across your project and am interested to know if you have or could work out a filter like the above for the Modula MT...would love to try it out with the MCM amps and maybe a Fountek ribbon tweeter...thanks
    My woofer filter just flattens the response and allows the amp's filter to take over for the 3kHz crossover. The cap on the tweeter circuit is there just to protect from turn-on thump, but it is important that you have a cap when using a ribbon so the amp doesn't see a short at DC. That being said, I would use the same filter if I were just substituting the Fountek for the RS28, and then I would adjust the level to fit. By the way, I had to back down the woofers some anyway, so a more sensitive tweeter would work nicely.
    Jeff

  18. #18
    Join Date
    Aug 2007
    Location
    Howell NJ
    Posts
    6,993

    Default Re: Details on building the speaker below

    Quote Originally Posted by billschulte View Post
    Jeff...just ran across your project and am interested to know if you have or could work out a filter like the above for the Modula MT...would love to try it out with the MCM amps and maybe a Fountek ribbon tweeter...thanks
    Go ahead try it at least pick up a pair of amps better yet grab 4 to get the discount. My 5 are still working fine and 3 of them drive a 4 ohm load.

  19. #19
    Join Date
    Oct 2005
    Location
    Glen Carbon, IL
    Posts
    279

    Default Re: Details on building the speaker below

    Jeff, can you add a link to the Dayton RS722 Kits in your first post?

  20. #20
    Join Date
    Nov 2006
    Location
    Chicagoland
    Posts
    4,042

    Default Re: Details on building the speaker below

    Quote Originally Posted by billschulte View Post
    Jeff...just ran across your project and am interested to know if you have or could work out a filter like the above for the Modula MT...would love to try it out with the MCM amps and maybe a Fountek ribbon tweeter...thanks
    ?
    I don't like being a pooper, but the Modula MT is a passive design, intended to be driven with one amplifier. You can't biamp it. Also, if you swap in a Fountek ribbon, it's no longer the Modula, either.

    However, if you wanted to use the driver pair of the RS180 and the RS28a, actively powered by an MCM plate amp, that is probably doable. You'd just have to work within the constraints of the amp, as Jeff discussed earlier in the thread.
    Come Get Down And Eat Best Food, Sharp. Cee? Sharp.

    Paul Carmody's DIY Audio Projects
