    Re: Helium - a true micromonitor

    Another Helium build. Very happy with them, thank you Scott!

    In both pictures together with Wolf´s Triumph subwoofer.


    /Andreas
    Attached Files

    Comment

    • Kevin K.
      Seasoned Veteran
      • Sep 2014
      • 1872

      Re: Helium - a true micromonitor

      Originally posted by andan
      Another Helium build. Very happy with them, thank you Scott!

      In both pictures together with Wolf´s Triumph subwoofer.


      /Andreas
      Love the all white finish on those! Nice work.
      My "No-Name" CC Speaker
      Kerry's "Silverbacks"
      Ben's Synchaeta's for Mom
      The Archers
      Rick's "db" Desktop CBT Arrays
      The Gandalf's

      Comment

      • Misch
        Been Around Awhile
        • Jun 2008
        • 89

        Re: Helium - a true micromonitor

        Using Minimus7 Enclosures, needs a few more finishing touches.



        Click image for larger version

Name:	20150515_220911.jpg
Views:	1
Size:	421.7 KB
ID:	1166614

        Click image for larger version

Name:	20150515_220836.jpg
Views:	1
Size:	315.4 KB
ID:	1166613

        Comment

        • corradizo
          Been Around Awhile
          • Jan 2014
          • 112

          Re: Helium - a true micromonitor

          I brought the Heliums to my friend gtg in Plainfield, il. A bunch of avs guys were there. A great time had by all. All the guys were very impressed with the Heliums. With lots of high sensitivity designs there, they of course could not play as loud but they sure did sound really nice and clear and really threw out a wonderful image, they disappeared into the room. The only other speakers that had this disappearing effect (the sound stage and image are there, but don't seem to be coming from the speakers themselves) as I call it, were Jeff B. designed Fusion 8 towers.

          Click image for larger version

Name:	uploadfromtaptalk1435545181963.jpg
Views:	1
Size:	325.8 KB
ID:	1167221
          Sitting on top of Sentinel v2 15"
          Click image for larger version

Name:	uploadfromtaptalk1435545210025.jpg
Views:	1
Size:	366.2 KB
ID:	1167222
          On to of the 1099

          Comment

          • bkeane1259
            Seasoned Veteran
            • Mar 2011
            • 5167

            Re: Helium - a true micromonitor

            Whoa...GOT BASS? Whose HT is that?
            Bryan K.

            Midwest Audio Club
            [SIZE="1"]
            Speedster | [URL="http://techtalk.parts-express.com/showthread.php?t=229236"]Sub Attach

            Comment

            • corradizo
              Been Around Awhile
              • Jan 2014
              • 112

              Re: Helium - a true micromonitor

              My friend Mike's. He's Eng-399 on AVS. He's got a thread on the gtg which doubles as his theater build thread too. Those are 4 Stereo Integrity HT18's tuned to 16hz. His mains are Behringer B215xl's. It definitely rocks!

              Comment

              • scottsehlin
                Senior Member
                • Oct 2005
                • 994

                Re: Helium - a true micromonitor

                I love those pictures of the Heliums getting to hang out with the "big kids". Sounds like a fun weekend!
                Keep an open mind, but don't let your brain fall out.

                Sehlin Sound Solutions

                Comment

                • Herman Trivilino
                  Senior Member
                  • Sep 2010
                  • 504

                  Re: Helium - a true micromonitor

                  Originally posted by corradizo
                  I brought the Heliums to my friend gtg in Plainfield, il. A bunch of avs guys were there. A great time had by all. With lots of high sensitivity designs there, they of course could not play as loud but they sure did sound really nice and clear and really threw out a wonderful image, they disappeared into the room.
                  Did you have a sub? They really need a sub to make up for what they're missing on the low end.

                  Comment

                  • corradizo
                    Been Around Awhile
                    • Jan 2014
                    • 112

                    Re: Helium - a true micromonitor

                    Originally posted by Herman Trivilino
                    Did you have a sub? They really need a sub to make up for what they're missing on the low end.
                    We played them with and without the subs on the wall that you see in the pics.

                    Comment

                    • corradizo
                      Been Around Awhile
                      • Jan 2014
                      • 112

                      Re: Helium - a true micromonitor

                      I recently installed my Heliums on the wall next to each side of my TV which is also mounted pretty high up on the wally. As I expected the baffle step circuit greatly increased the bass all the way into the mid-bass about 200hz. I was impressed to have a solid response down to 60hz! I employed a great little app called equalizer apo on my laptop along with REW to flatten it all out. After doing so, these babies sound even better!!

                      Here is my REW file. https://www.dropbox.com/s/alwh7ae5un...%202.mdat?dl=0

                      I don't have a HPF set so i suspect they'll sound better once i get a proper receiver. I have so far eq'ed flat across the lower octaves. I noticed distortion rising towards 60hz so i'm going to need to re-eq when i get a chance.

                      hope i'm doing all this right. all measurements were at the MLP using a mic stand. I can't help but wonder if i should take measurements within a foot or so directly in front of the speaker in order to better flatten the response?

                      Comment

                      • scottsehlin
                        Senior Member
                        • Oct 2005
                        • 994

                        Re: Helium - a true micromonitor

                        If your listening position is pretty well defined, equalizing there should be the best choice. It might be worth moving the mic a few feet in each direction as a sanity check to make sure you aren't over equalizing a localized room-induced cancellation. The more sophisticated room correction algorithms average multiple mic positions.
                        Keep an open mind, but don't let your brain fall out.

                        Sehlin Sound Solutions

                        Comment

                        • corradizo
                          Been Around Awhile
                          • Jan 2014
                          • 112

                          Re: Helium - a true micromonitor

                          Thanks Scott. I will try a couple more spots on the bed to take measurements. I guess I should consider what my wife hears also... Ha!

                          Comment

                          • a_c_arnold
                            New Member
                            • Jun 2012
                            • 8

                            Re: Helium - a true micromonitor

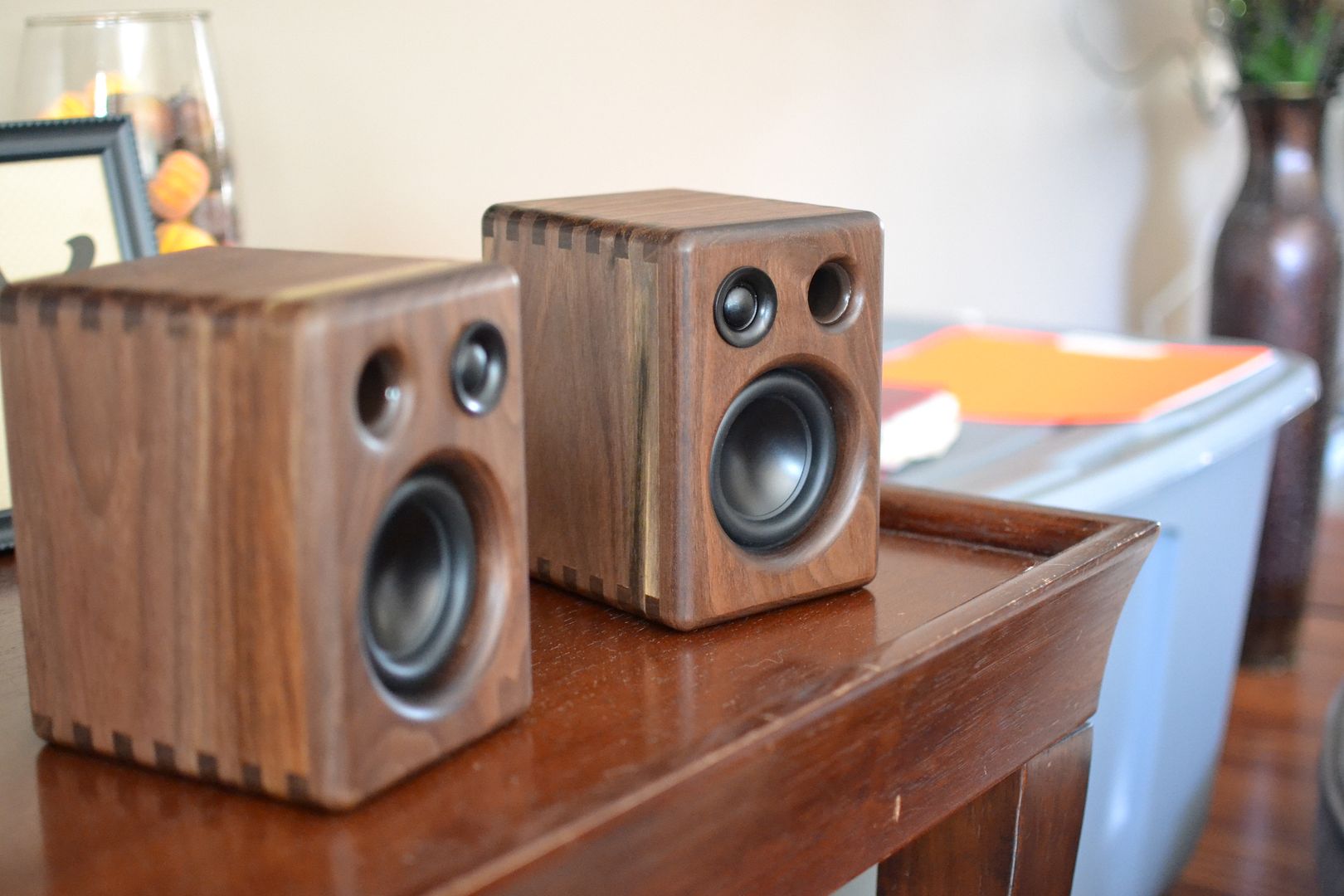

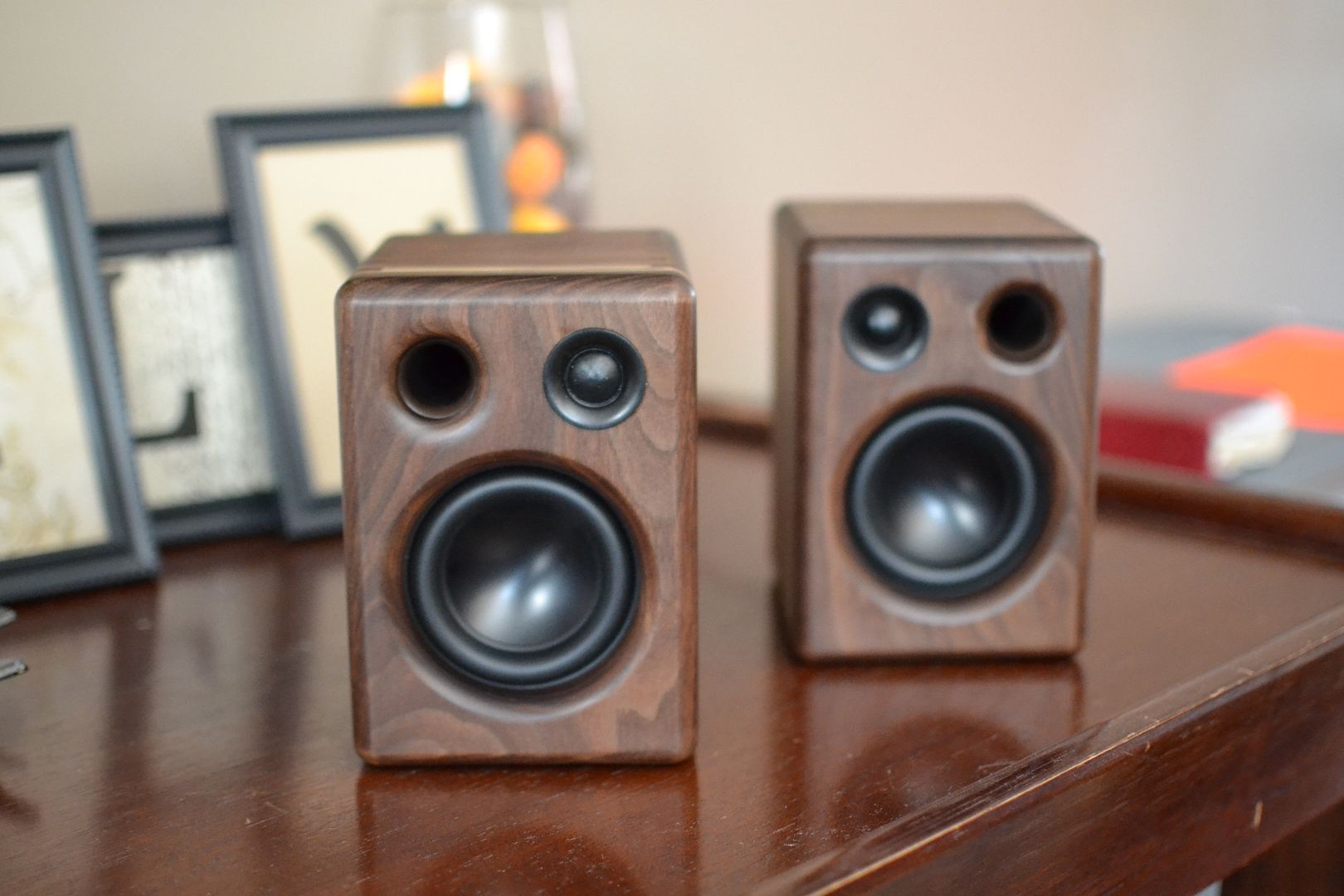

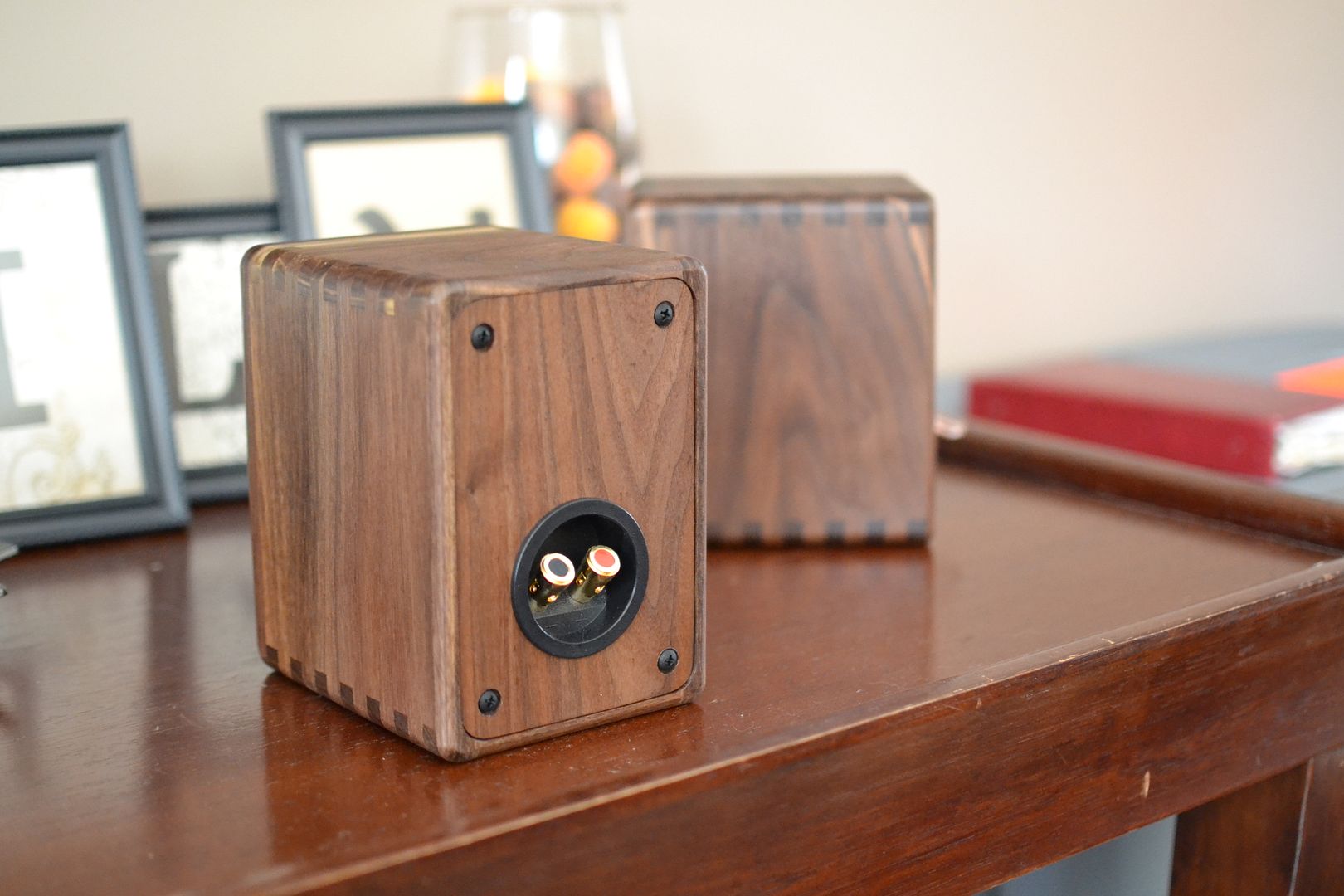

                            Another helium build. I went with solid walnut on these so we will see how they hold up. Thanks for the design Scott.



                            Comment

                            • deafaudiofile
                              New Member
                              • Jul 2013
                              • 21

                              Re: Helium - a true micromonitor

                              they look great!! need some feet or stands though. i have to learn how to make those joints:(

                              Comment

                              • Wolf
                                Obsessed & Proud of It
                                • Sep 2005
                                • 26844

                                Re: Helium - a true micromonitor

                                Very nice work, sir!
                                Just beautiful,
                                Wolf
                                "Wolf, you shall now be known as "King of the Zip ties." -Pete00t
                                "Wolf and speakers equivalent to Picasso and 'Blue'" -dantheman
                                "He is a true ambassador for this forum and speaker DIY in general." -Ed Froste
                                "We're all in this together, so keep your stick on the ice!" - Red Green aka Steve Smith
