    Since this is a full build thread, I am putting it in the forum rather than the gallery for now.

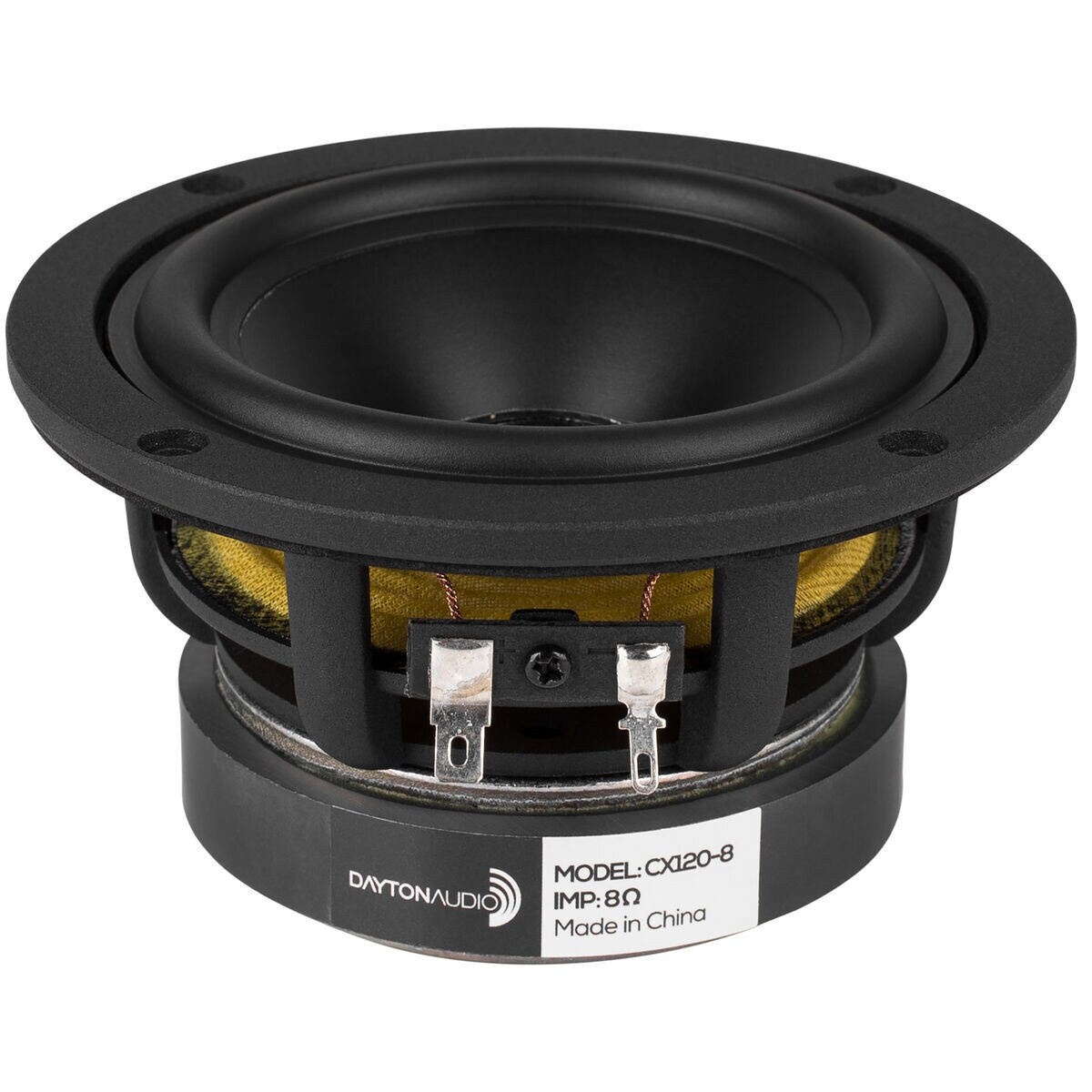

    https://www.parts-express.com/dayton...8-ohm--295-384


    I have been asked a couple of times for a PEDS center channel. I made an MTM version of one over a year ago, but it was too complicated. Plus, I never thought it was what I wanted. The MTM layout created a lot of frequency response variations in different seating positions. After PE released the CX120-8 coax driver, I thought this might work out better as far as off axis listening and indeed it does. It also has the added benefit of a simple four element crossover. So here is a center channel that has the same bass roll off as the PEDS and a smooth response no matter where you sit.

    Click image for larger version  Name:	CX120-8 box front.JPG Views:	25 Size:	424.7 KB ID:	1426475 Click image for larger version  Name:	CX120-8 box back.JPG Views:	21 Size:	438.3 KB ID:	1426476

    I have not finished the boxes yet and my crossover is still external and attaches to the cable out the back. Now that I am satisfied with it, I will move the XO into the box and paint it. But that a project for Christmas vacation.

    The box is mostly 1/2 inch MDF and is 5.25" H X 9" W X 5" D. The front baffle is 3/4 inches thick.

    Now on to the design.
    Last edited by BOBinGA; 12-08-2019, 09:25 PM.
    -Bob

    The PEDS 2.1 mini system
    My A7 Project - another small desktop speaker
    The B3 Hybrid Dipole - thread incomplete and outdated

  • #2

    This was a bit difficult to get working well. I first measured the T/S parameters of the one I received. It was a little off of the published specs, but it still modeled just like the published specs.
    Published Fs = 87.5 hz Qts = 0.48 Vas = 3.0 liters
    Measured sample Fs = 88.8 Qts = 0.53 Vas = 1.71

    Its not unusual for drivers to have higher than spec Qts and lower Vas. Indeed, this was the case, but for this closed box it worked out to the same volume of 0.066 cu ft (114 cu in).

    Click image for larger version

Name:	CX120-8 measured closed and ported.PNG
Views:	1383
Size:	288.4 KB
ID:	1426479

    The Box size was pretty much determined by the height needed to allow the driver to fit the front. Using a regular rectangular box, we get a Qtc of 0.69 with full stuffing. Indeed, measuring the final box with my DATv2, I get a Qtc = 0.71 and an Fb = 118 hz. That's pretty close to predicted.

    The WinISD graph above also includes a ported box 225 cu in with a 1.5"PVC port (1.59" actual diameter) X 7.25" length. You can see this will give you output down to 70 hz, but the size is double.

    Here is my notebook page with the box details:

    Click image for larger version

Name:	IMG_0685 small.jpg
Views:	1219
Size:	180.0 KB
ID:	1426480

    I didn't build the ported version, so that's up to you to try. I will be using the close box with a sub.

    -Bob

    The PEDS 2.1 mini system
    My A7 Project - another small desktop speaker
    The B3 Hybrid Dipole - thread incomplete and outdated

    Comment


    • #3
      You can see the different crossover versions I tried. The increased bass version was a little too bassy and lacked highs. The flat version is what I would use if it will be out from the wall a couple of feet on stands used as a stereo pair. The reduced BSC version works best when used directly below a large TV screen or when placed on a shelf close to a wall.

      To illustrate the difficulties getting to make these work, here is the measured response in my large room. First the woofer:

      Click image for larger version

Name:	woofer response WinPCD.PNG
Views:	1222
Size:	473.4 KB
ID:	1426483

      You can see that the in box, in room uncorrected response has a large hump at 1700 hz followed by a big dip down to 4k hz followed by the cone breakup going back up to 8k hz. Luckily, this was massaged into a pretty close to 2nd order butterworth low pass slope at 2300 hz with just the 1.2 mH inductor and 4.7 mf capacitor.

      Here is the tweeter:

      Click image for larger version

Name:	tweeter response WinPCD.PNG
Views:	1192
Size:	443.5 KB
ID:	1426484

      The unmodified response is about 5db higher than the final woofer response. Again, I was fortunate to get the down to match the woofer with only a 3.3 mf capacitor and a 3.0 ohm resistor. This resulted in a 4th order butterworth high pass at 2800 hz.

      Now finally, here is the predicted system response using the flat crossover:

      Click image for larger version

Name:	Full BSC combined response WinPCD.PNG
Views:	1219
Size:	316.6 KB
ID:	1426485

      You will notice that there is a small dip in the response at 2500 hz. This is because the woofer and tweeter crossover points are different - 2300 and 2800 hz. There was simply no way to get them closer together since these are the limits for the individual drivers. Fortunately, this crossover only creates a 3db dip, which is not even noticeable in use.

      -Bob

      The PEDS 2.1 mini system
      My A7 Project - another small desktop speaker
      The B3 Hybrid Dipole - thread incomplete and outdated

      Comment


      • #4
        Finally, here are the actual measured response of the finished speaker using the flat and reduced BSC XO circuits. (Disregard the stuff below 70 hz. I left my subwoofer on set to a 50 hz crossover for my regular speakers.)

        First, with 1/3 octave smoothing to show you the response warts ad all.

        Click image for larger version

Name:	CX120-8 low and full BSC 1-3 octave.png
Views:	1191
Size:	18.4 KB
ID:	1426487

        You can see that there are lots of room modes below 600 hz. I could try gating them out in the measurements, but I find it somewhat easier to just mentally average out the peaks and dips to get a response that is closer to what I hear. The peak/dip/peak above 10k hz is a product of the coaxial tweeter and is not really audible.

        To get an idea of any response problems that I can work out in the crossover, I also look at the one octave smoothed response. Its obviously not as accurate, but it gives you a better sense of the octave to octave balance and is pretty indicative of what you actually hear. Here it is:

        Click image for larger version

Name:	CX120-8 one octave smoothing.png
Views:	1157
Size:	17.6 KB
ID:	1426488

        How about them apples! Pretty close to dead flat with only four crossover parts. I don't think you can do any better.
        -Bob

        The PEDS 2.1 mini system
        My A7 Project - another small desktop speaker
        The B3 Hybrid Dipole - thread incomplete and outdated

        Comment


        • #5
          Finally for tonight, here are some shots of the crossovers I made using the PE small perforated boards. Even on the small 3" X 5" boards, I mounted both the flat and low BSC crossovers at each end of one board. I didn't have exactly the parts I needed, so I had to create them by paralleling some parts. But the actual values are all standard values that you should be able to source at PE.

          Click image for larger version

Name:	XO layout small.jpg
Views:	1204
Size:	172.2 KB
ID:	1426490

          I will try to add an actual wiring diagram later, but that's all I have time for tonight. Let me know if you have questions.
          -Bob

          The PEDS 2.1 mini system
          My A7 Project - another small desktop speaker
          The B3 Hybrid Dipole - thread incomplete and outdated

          Comment


          • #6
            This is fantastic Bob! I have a plan in my head for one of these CX120's with a pair of 4" woofers flanking it for my someday HT build. I'll have to bookmark this for a starting point of the mid to tweeter crossover.
            Electronics engineer, woofer enthusiast, and musician.
            Wogg Music
            Published projects: PPA100 Bass Guitar Amp, ISO El-Cheapo Sub, Indy 8 2.1 powered sub, MicroSat, SuperNova Minimus

            Comment


            • #7
              I too am looking at using this driver for a center channel (and maybe mated to a larger woofer for L/R speakers) except I am in a huge room with 20’ ceilings. So I’d like to build a center shaped more like a sound bar with a quartet of 5.25”-6” woofers using the Dayton Designer series paper cones. Let me know if you have any ideas concerning this.

              Comment


              • #8
                I have been using this as my living room center channel with the PEDS as left and right, PS95s as rears and an 8” sub I have not documented since the driver is long discontinued. It works great for this purpose since my wife and I don’t listen too loud. But the CX120 center does exactly what I need - it makes dialog very easy to understand.

                I have considered using the CX120 in a LCR sound bar. I think that would be good high value build with a subwoofer and an inexpensive 5.1 AVR. But I don’t need this now, so I will leave that to others.
                -Bob

                The PEDS 2.1 mini system
                My A7 Project - another small desktop speaker
                The B3 Hybrid Dipole - thread incomplete and outdated

                Comment


                • #9
                  Did you ever post the complete xover schematic?

                  Comment


                  • #10
                    Click image for larger version

Name:	CX120-8 as built photo.png
Views:	962
Size:	649.4 KB
ID:	1452888 Here is the final XO:
                    Click image for larger version  Name:	CX120-8 as built large.jpg Views:	0 Size:	19.3 KB ID:	1452883
                    It has a very slight 1 to 2db upward bias in the 800 to 2000hz range to help with voice intelligibility. Otherwise, its flat.
                    C1= 3.3uF
                    R1= 3.0 ohms
                    L1= 1.2mH
                    C2= 4.7uF
                    Last edited by BOBinGA; 09-29-2020, 02:45 PM.
                    -Bob

                    The PEDS 2.1 mini system
                    My A7 Project - another small desktop speaker
                    The B3 Hybrid Dipole - thread incomplete and outdated

                    Comment


                    • #11
                      Wow, that's way simpler than I expected! Well done Bob.
                      Electronics engineer, woofer enthusiast, and musician.
                      Wogg Music
                      Published projects: PPA100 Bass Guitar Amp, ISO El-Cheapo Sub, Indy 8 2.1 powered sub, MicroSat, SuperNova Minimus

                      Comment


                      • #12
                        This project wasn't in my mind until BOBingGA posted the XO. Always wanted to do a coax, so here's the last build this season. I won't do a build thread, just post a few pics here. Prebuilt the innards, the actual driver is back ordered for a month. Some fairly nice 1/2" ply, veneer with a 1/4" MDF baffle on all or part of the front. I plan to get them all built and waiting for the drivers in the next week. This is a pair of ported speakers for a 2.1 setup, the original being a single center channel.

                        Click image for larger version  Name:	IMG_0002.JPG Views:	0 Size:	449.9 KB ID:	1453225

                        Click image for larger version  Name:	IMG_0003.JPG Views:	41 Size:	866.0 KB ID:	1453243

                        PSA mahogany veneer left from last year Zingers build. 1/2" MDF baffle, glued to 1/2" ply front panel, 1" baffle, overkill.

                        Click image for larger version  Name:	IMG_0004.JPG Views:	0 Size:	445.9 KB ID:	1453406

                        CX120s should be here today.

                        Click image for larger version  Name:	IMG_0005.JPG Views:	0 Size:	920.2 KB ID:	1453497

                        Click image for larger version

Name:	IMG_0006.JPG
Views:	727
Size:	950.5 KB
ID:	1453524
                        Last edited by djg; 10-07-2020, 07:06 PM.

                        Comment


                        • #13
                          I hope they come back in stock. The similar CX150 seems to be discontinued, but Meniscus still has a few. I was planning to use the CX150s for atmos height speakers, but maybe they will be stocked again. If not, I guess I will use SB’s. But that’s a project for next year.
                          -Bob

                          The PEDS 2.1 mini system
                          My A7 Project - another small desktop speaker
                          The B3 Hybrid Dipole - thread incomplete and outdated

                          Comment


                          • djg
                            djg commented
                            Editing a comment
                            Well, the product page says 11/06. Orphan boxes, hope not.

                          • djg
                            djg commented
                            Editing a comment
                            BOB, I just ordered 2 from Meniscus, thanks.

                        • #14
                          Baffles drying, maybe tomorrow. Excited to hear a coax speaker.

                          Click image for larger version

Name:	IMG_0007.JPG
Views:	736
Size:	419.5 KB
ID:	1453660

                          Comment


                          • #15
                            Yes it would be really nice to be able to purchase the S2000 woofers individually and use the coax in WCW arrangement for the center and CWW arrangement for the L/R in a soundbar.

                            I haven't found anything else that uses that same frame or basket.
