    Re: RSS315HF-4 as the anchor of a 3-way???

    Well I got some listening done with one of the cabinets, just to get an impression of the capabilities. I pulled out the old Sansui G8000, a very generous 130W capability with power meters to give me an idea where the output is to keep it clean. Nothing fancy for the source, just headphone output from the laptop into the Sansui, running WAV format for the music in Media Player. Far from optimal.

    I adjusted the output so that the meter was hovering around 10W.

    The cabinet will need some cross bracing for the side panels. The baffle doesn't need anything to stiffen it up. Solid as a rock. Even as large as the side panels are, the nature of the build has created really stiff walls that don't move very much. But from a simple touch test, I could tell that a brace or two would improve things.

    That said, after I spent an hour listening to some cuts, I got around to playing Allison Krauss, "Deeper than Crying" and was just mesmerized. I think the mid and tweet are so close to right that I don't know that any more tweaking will improve anything. And without the stereo pair in their final places in the listening room, it's tough to tell if the overall bass levels are right. But during Hotel California - Live/Acoustic, the big drum and bass seemed to be all there, with a real visceral quality to the lows. I can't wait to get the second one up for final voicing.
    ....and I can't wait to hear the pair at some future gathering. The raw cabinets sure were impressive when I saw them in April.

    Jeff
    Click here for Jeff Bagby's Loudspeaker Design Software

    Comment


    • #77
      Re: RSS315HF-4 as the anchor of a 3-way???

      There's becoming no doubt in my mind about the musical quality of the RSS subs. They really are woofers, and can be considered such, remaining articulate to well beyond sub range. Dan's HOSS and BassLines have that awesome low end, but he's done both actively, with separate amps. It's really neat to find out how the subs do in a passive XO, and they really do shine.

      Right now, they're crossed at 200Hz using 8mH iron core and 100uF film capacitor. I sure do like what I hear so far. I took care of some leaks around the PR this morning and bass sure tightened up afterward.

      I decided that the XO will be outboard. There's some left over veneer which an be used to cover the XO enclosures. So the drivers all have their own 5-way binding posts on the rear bottom, just below the PR. That sure will make playing with various XO implementations an easy proposition.

      One thing I want to try is using an impedance compensation circuit for the tweeter. Modeling suggests that better phase tracking is possible using it. It does add 3 more components however. But since it's easy enough to try, why not?

      And for the next few hours, I'm just going to run a 40W sine wave at 12Hz through them. Both the PR and RSS are moving near Xmax, and there's nary a sound from them. I do hear just a touch of the 2nd harmonic at 24Hz but at 2" p-p excursion on both the PR and woofer, I'm not surprised. It is barely audible.
      R = h/(2*pi*m*c) and don't you forget it! || Periodic Table as redrawn by Marshall Freerks and Ignatius Schumacher || King Crimson Radio
      Byzantium Project & Build Thread || MiniByzy Build Thread || 3 x Peerless 850439 HDS 3-way || 8" 2-way - RS28A/B&C8BG51

      95% of Climate Models Agree: The Observations Must be Wrong
      "Gravitational systems are the ashes of prior electrical systems.". - Hannes Alfven, Nobel Laureate, Plasma physicist.

      Comment


      • #78
        Re: RSS315HF-4 as the anchor of a 3-way???

        Dan's HOSS and BassLines have that awesome low end, but he's done both actively, with separate amps. It's really neat to find out how the subs do in a passive XO, and they really do shine.
        Pete- the BassLines had TD12H in them, and they were passive.

        The 'Blades' had an active RSS265 in the bottom.

        Later,
        Wolf
        "Wolf, you shall now be known as "King of the Zip ties." -Pete00t
        "Wolf and speakers equivalent to Picasso and 'Blue'" -dantheman
        "He is a true ambassador for this forum and speaker DIY in general." -Ed Froste
        "We're all in this together, so keep your stick on the ice!" - Red Green aka Steve Smith

        *InDIYana event website*

        Photobucket pages:
        https://app.photobucket.com/u/wolf_teeth_speaker

        My blog/writeups/thoughts here at PE:
        http://techtalk.parts-express.com/blog.php?u=4102

        Comment


        • #79
          Re: RSS315HF-4 as the anchor of a 3-way???

          Hey Pete, here's a measurement of the 15W/4831g00 ... is that smooth enough for ya ;)
          Attached Files
          Vapor Audio

          Comment


          • #80
            Re: RSS315HF-4 as the anchor of a 3-way???

            Originally posted by DoubleTap View Post
            Hey Pete, here's a measurement of the 15W/4831g00 ... is that smooth enough for ya ;)
            Wow . . .

            That's the nicest behavior I've ever seen from a midrange of any flavor.

            Believe me, I'm having fun auditioning them. :D

            Got any off axis data?

            And what size baffle is that on?
            Last edited by Pete Schumacher; 06-07-2010, 01:25 AM.
            R = h/(2*pi*m*c) and don't you forget it! || Periodic Table as redrawn by Marshall Freerks and Ignatius Schumacher || King Crimson Radio
            Byzantium Project & Build Thread || MiniByzy Build Thread || 3 x Peerless 850439 HDS 3-way || 8" 2-way - RS28A/B&C8BG51

            95% of Climate Models Agree: The Observations Must be Wrong
            "Gravitational systems are the ashes of prior electrical systems.". - Hannes Alfven, Nobel Laureate, Plasma physicist.

            Comment


            • #81
              Re: RSS315HF-4 as the anchor of a 3-way???

              Originally posted by Wolf View Post
              Pete- the BassLines had TD12H in them, and they were passive.

              The 'Blades' had an active RSS265 in the bottom.

              Later,
              Wolf
              Oops, got all them B's crossed up.

              thanks for the correction.
              R = h/(2*pi*m*c) and don't you forget it! || Periodic Table as redrawn by Marshall Freerks and Ignatius Schumacher || King Crimson Radio
              Byzantium Project & Build Thread || MiniByzy Build Thread || 3 x Peerless 850439 HDS 3-way || 8" 2-way - RS28A/B&C8BG51

              95% of Climate Models Agree: The Observations Must be Wrong
              "Gravitational systems are the ashes of prior electrical systems.". - Hannes Alfven, Nobel Laureate, Plasma physicist.

              Comment


              • #82
                Re: RSS315HF-4 as the anchor of a 3-way???

                Wow . . .

                That's the nicest behavior I've ever seen from a midrange of any flavor.

                Believe me, I'm having fun auditioning them. :D

                Got any off axis data?

                And what size baffle is that on?
                Sure Pete, here ya go ;)

                http://www.madisound.com/catalog/PDF/15W_4531G00.pdf
                Vapor Audio

                Comment


                • #83
                  Re: RSS315HF-4 as the anchor of a 3-way???

                  Added a bit of padding to the mid/tweet section today. The current implementation on the Scan is a 2nd order HP using 3mH and 120uF and a 1st order LP using .7mH and a 6.2uF plus 4 Ohm zobel. To this, I added 1.2 Ohm in series with the 15ga input inductor.

                  Tweeter HP is 6uF and .5mH shunt, with 1.2 Ohm in series with the RS28. This combines with the mid for a very wide range overlap centered at 2900Hz, LR2 acoustic slopes.

                  Woofer XO still 8mH and 100uF, for a total of 11 components so far.

                  I think I'll build the second XO to match this one to do the stereo voicing with speakers in place.

                  So far, these are turning out to meet the aural expectations I've had from the beginning.
                  R = h/(2*pi*m*c) and don't you forget it! || Periodic Table as redrawn by Marshall Freerks and Ignatius Schumacher || King Crimson Radio
                  Byzantium Project & Build Thread || MiniByzy Build Thread || 3 x Peerless 850439 HDS 3-way || 8" 2-way - RS28A/B&C8BG51

                  95% of Climate Models Agree: The Observations Must be Wrong
                  "Gravitational systems are the ashes of prior electrical systems.". - Hannes Alfven, Nobel Laureate, Plasma physicist.

                  Comment


                  • #84
                    Re: RSS315HF-4 as the anchor of a 3-way???

                    Another day of listening yesterday. Still haven't quite got the woof/mid XO right. The upright bass just didn't sound "there" like it usually does in Dianna Krall's rendition of "Cry Me a River."

                    So, back to PCD to see what a slight relaxation of the woofer XO capacitor does. 100uF to 66uF pushes the XO from 200Hz, to 250Hz, with only slight changes to the FR, so in goes the change.

                    Suddenly, the life has come back into the upright basses!!! The "chesty" feel in voices is better now as well. Now I have to watch the breakup in the RSS more closely as the filter is still only second order. I may have to add a notch to hear for any differences, but that comes later.

                    Might try just a tad less tweet level as well, but only after a few more hours of listening. Crossover right now is right around 2800, with shallow slopes, and a very wide v-shaped reverse null.

                    11 components in the XO still.
                    R = h/(2*pi*m*c) and don't you forget it! || Periodic Table as redrawn by Marshall Freerks and Ignatius Schumacher || King Crimson Radio
                    Byzantium Project & Build Thread || MiniByzy Build Thread || 3 x Peerless 850439 HDS 3-way || 8" 2-way - RS28A/B&C8BG51

                    95% of Climate Models Agree: The Observations Must be Wrong
                    "Gravitational systems are the ashes of prior electrical systems.". - Hannes Alfven, Nobel Laureate, Plasma physicist.

                    Comment


                    • #85
                      Re: RSS315HF-4 as the anchor of a 3-way???

                      Another day of listening yesterday. Still haven't quite got the woof/mid XO right. The upright bass just didn't sound "there" like it usually does in Dianna Krall's rendition of "Cry Me a River."

                      So, back to PCD to see what a slight relaxation of the woofer XO capacitor does. 100uF to 66uF pushes the XO from 200Hz, to 250Hz, with only slight changes to the FR, so in goes the change.

                      Suddenly, the life has come back into the upright basses!!! The "chesty" feel in voices is better now as well. Now I have to watch the breakup in the RSS more closely as the filter is still only second order. I may have to add a notch to hear for any differences, but that comes later.

                      Might try just a tad less tweet level as well, but only after a few more hours of listening. Crossover right now is right around 2800, with shallow slopes, and a very wide v-shaped reverse null.

                      11 components in the XO still.
                      Ah! I was wondering what the difference may be in changing woofer/ mid cross from 200 up to 300. I wasn't sure what to listen for.
                      Dave
                      http://www.pellegreneacoustics.com/

                      Trench Seam Method for MDF
                      https://picasaweb.google.com/101632266659473725850

                      Comment


                      • #86
                        Re: RSS315HF-4 as the anchor of a 3-way???

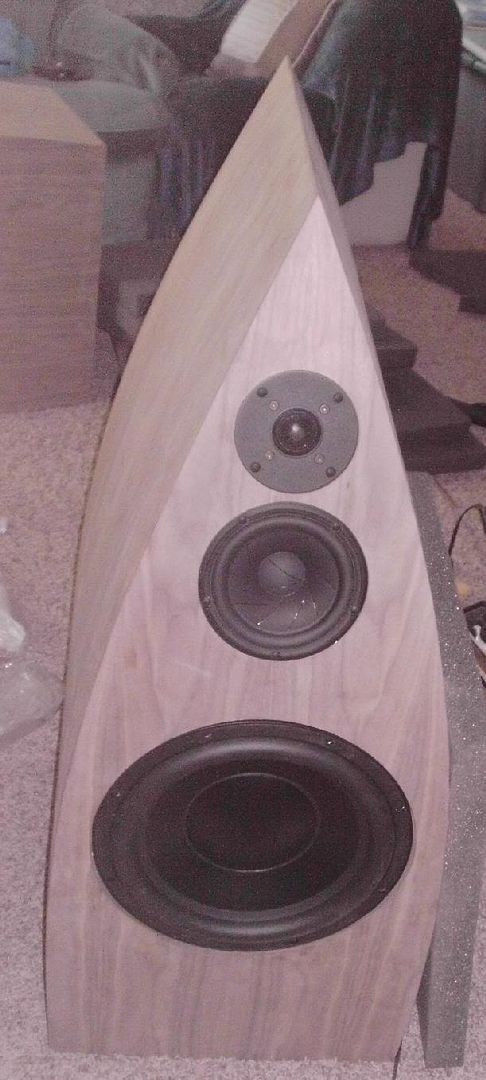

                        Here's what I'm listening to at the moment.

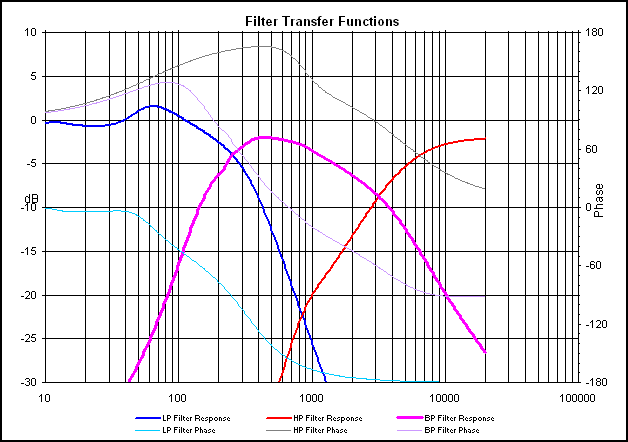

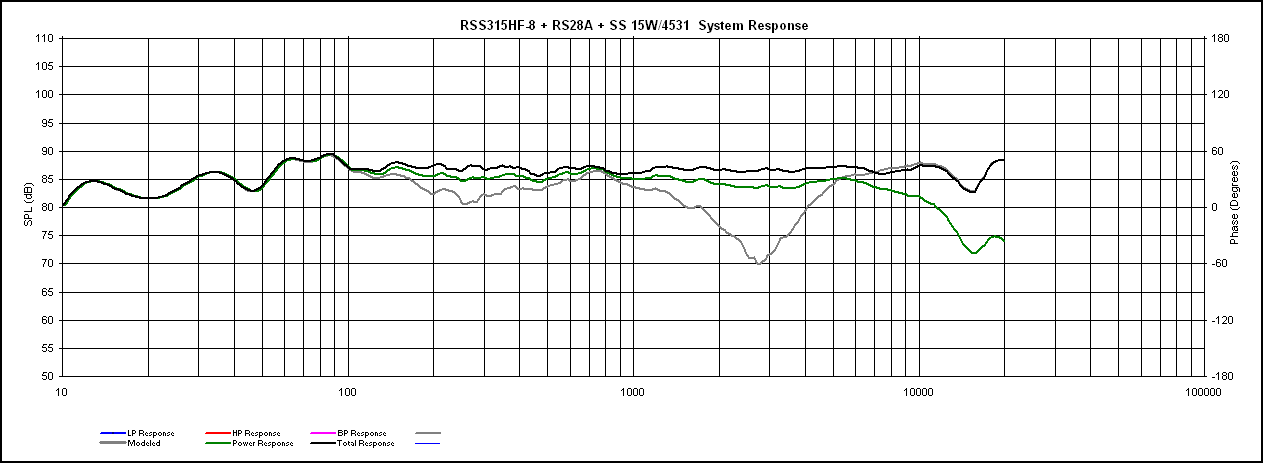

                        I'm really liking the looks of the transfer functions. XO points are currently at 250 and 2800, second order.
