  • "Knuckle Head" Speak Build

    I started building boxes today from Harley Speaker Build thread. I came to the conclusion that I all I was after was a speaker box that someone would look at and say " that looks like a motor cycle engine". Point being I wanted to simplify the build so I can have it done before Christmas and not spend every free moment working on it.

    I found this pic to get some inspiration from. That's were the name came from or maybe the builder or both. anyway here is the start.

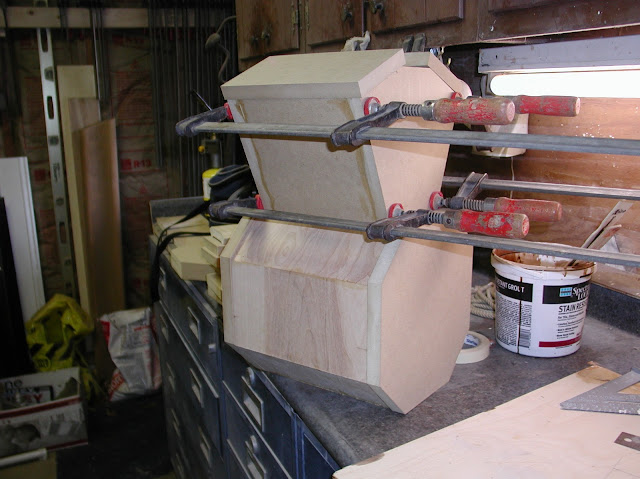

    I got a few hours today to start cutting up some wood. Looks like I can build these out of all scrap I have.

    Front and rear panels will get a large round over and probably bolted on with real bolts counter sunk into the round over. Probably the same for the top covers.





    This should be fun!
    Dave
    http://www.pellegreneacoustics.com/

    Trench Seam Method for MDF
    https://picasaweb.google.com/101632266659473725850

  • #2
    Re: "Knuckle Head" Speak Build

    looking good!:D

    Comment


    • #3

      Comment


      • #4
        Re: "Knuckle Head" Speak Build

        Looking good Dave, are they going to have an oil leak? :D

        Comment


        • #5
          Re: "Knuckle Head" Speak Build

          Originally posted by theLinks View Post
          Looking good Dave, are they going to have an oil leak? :D
          My dad just bought a 2005 Electra-glide Classic, and the dang thing left an oil stain on my driveway. It is a 2005, I thought H-D had addressed that problem?

          Dave, those are going to be a very neat build and I look forward to seeing how they progress.
          Don't listen to me - I have not sold any $150,000 speakers.

          Comment


          • #6
            Re: "Knuckle Head" Speak Build

            Nice , that will be interesting when it's done.
            Thanks ,
            JB

            Comment


            • #7
              Re: "Knuckle Head" Speak Build

              you are only limited to your imagination. let er rip. maybe you can put the tweeter in a sissy bar.
              " To me, the soundstage presentation is more about phase and distortion and less about size. However, when you talk about bass extension, there's no replacement for displacement". Tyger23. 4.2015

              Quote Originally Posted by hongrn. Oct 2014
              Do you realize that being an American is like winning the biggest jackpot ever??

              http://www.midwestaudioclub.com/spot...owell-simpson/
              http://s413.photobucket.com/albums/pp216/arlis/

              Comment


              • #8
                Re: "Knuckle Head" Speak Build

                Originally posted by [email protected] View Post
                you are only limited to your imagination. let er rip. maybe you can put the tweeter in a sissy bar.
                :D
                Don't listen to me - I have not sold any $150,000 speakers.

                Comment


                • #9
                  Re: "Knuckle Head" Speak Build

                  it might also be fun to mount the tweeter in an air cleaner inclosure.
                  " To me, the soundstage presentation is more about phase and distortion and less about size. However, when you talk about bass extension, there's no replacement for displacement". Tyger23. 4.2015

                  Quote Originally Posted by hongrn. Oct 2014
                  Do you realize that being an American is like winning the biggest jackpot ever??

                  http://www.midwestaudioclub.com/spot...owell-simpson/
                  http://s413.photobucket.com/albums/pp216/arlis/

                  Comment


                  • #10
                    Re: "Knuckle Head" Speak Build

                    Originally posted by davepellegrene View Post


                    I've only been in this hobby a few years, but this is definitely the first time I've ever seen someone build a speaker cabinet like that! Take lots of pics of this one!
                    Isn't it about time we started answering rhetorical questions?

                    Paul Carmody's DIY Audio Projects
                    Twitter: @undefinition1

                    Comment


                    • #11
                      Re: "Knuckle Head" Speak Build

                      Yeah, I haven't given up on the cooling fins yet so I left the sides flat so I can add them if it works out. Just not sure how I want to do it. I'll get the round overs done first and see from there. I have put a lot of thought into it from plowing out grooves with a stacked dado blade to a router groove to making individual fins to using plastic corrugated pipe as a form for pouring resin in to. It would even be cool just to find some fins to bolt on. What would really be cool is to get Frost's guy to air brush an engine on them. Again I'm trying to keep it simple and fun so I may not do anything. I just want to have them done in time for Christmas.
                      Dave
                      http://www.pellegreneacoustics.com/

                      Trench Seam Method for MDF
                      https://picasaweb.google.com/101632266659473725850

                      Comment


                      • #12
                        Re: "Knuckle Head" Speak Build

                        Originally posted by [email protected] View Post
                        you are only limited to your imagination. let er rip. maybe you can put the tweeter in a sissy bar.
                        I do enjoy the creativity of it all. Not sure about the sissy bar but I do need to come up with a port yet. I've been looking at the pipe coming out of the side of the head on the pic I posted and thought that may be a cool way to do it.
                        http://www.pellegreneacoustics.com/

                        Trench Seam Method for MDF
                        https://picasaweb.google.com/101632266659473725850

                        Comment


                        • #13
                          Re: "Knuckle Head" Speak Build

                          You may be able to bend the pvc to the header shape you want with patience and a heat gun

                          Comment


                          • #14
                            Re: "Knuckle Head" Speak Build

                            Originally posted by davepellegrene View Post
                            Yeah, I haven't given up on the cooling fins yet so I left the sides flat so I can add them if it works out.
                            How about chipset heatsinks? http://www.newegg.com/Product/Produc...e=&srchInDesc=
                            "He who fights with monsters should look to it that he himself does not become a monster. And when you gaze long into an abyss the abyss also gazes into you." Friedrich Nietzsche

                            http://www.diy-ny.com/

                            Comment


                            • #15
                              Re: "Knuckle Head" Speak Build

                              Originally posted by 2leftthumbs View Post
                              You may be able to bend the pvc to the header shape you want with patience and a heat gun
                              I have actually experimented with that on another build. I didn't have much luck bending it but I could flare it pretty well.
                              http://www.pellegreneacoustics.com/

                              Trench Seam Method for MDF
                              https://picasaweb.google.com/101632266659473725850

                              Comment
