  • Dave_W
    replied
    Re: Cabinet / Baffle CNC Service

    A couple of items I finished up today.

    Custom baffles for B&G NEO3 and Zaph ZA14W08 woofer.





    Baffle For a Bill Fitzmaurice Short Line Array. Customer is going to apply roundovers to the front and the speakers will be rear mounted. Should look pretty cool when it's finished. The odd shaped flanges were no match for the CNC. It took 32 minutes to cut both line arrays.







    Leave a comment:


  • Dave_W
    replied
    Re: Cabinet / Baffle CNC Service

    Couple more pics. Just finished up a Cerberus sub. Customer is going to apply the round-over to the baffle. It is not glued together, I just set it up for the picture.





    Leave a comment:


  • Dave_W
    replied
    Re: Cabinet / Baffle CNC Service

    Originally posted by nikbrewer View Post
    ive been running mine for abotu 3 yrs now. Its a lot of work to keep her running. I swithced over to rack and pinion drives for the x axis.

    I also run a 3.5hp PC router, but may go to a smaller router after i burn this one up

    Whats your cutting area? i have abiut 30" x 56"

    Also, in the center cutouts, no need to hold them in place, they may move a little after they are free, but only every rear once in a while will one bounce out of the hole
    Thanks for the tip on the cutouts, it will save some time.

    I use a Hitachi M12VC in mine. I like it a lot. It's quiet, has a 6 year warranty, and it's cheap!

    Cutting area on the machine is ~50"x100". I built it to handle a 49"x97" piece of MDF.

    I have a R&P on my x as well, I haven;t touched it since it started running. I use screw drives on the Y and Z. The Z doesn't give me any problems. The y axis though I'm constantly fighting dust on the screws and have had the motor couplers come loose on me a couple of times. Switching to R&P on the Y is a high priority,

    Leave a comment:


  • nikbrewer
    replied
    Re: Cabinet / Baffle CNC Service

    ive been running mine for abotu 3 yrs now. Its a lot of work to keep her running. I swithced over to rack and pinion drives for the x axis.

    I also run a 3.5hp PC router, but may go to a smaller router after i burn this one up

    Whats your cutting area? i have abiut 30" x 56"

    Also, in the center cutouts, no need to hold them in place, they may move a little after they are free, but only every rear once in a while will one bounce out of the hole

    Leave a comment:


  • Dave_W
    replied
    Re: Cabinet / Baffle CNC Service

    Originally posted by Steve Henry View Post
    Quality work, indeed!
    Thanks. They were a challenge!

    Originally posted by nikbrewer View Post
    why do you pocket cut your through cuts for the drivers. That creates a lot more dust and time

    What g-code software are you using? I run sheetcam on mine

    You running mach3?

    Whats your max IMP for cut and job? Just curious as i built my own cnc a few yrs back

    I used to cut a lot of stuff for guys on here, but i cant keep up with the car audio side of my orders even, and the home audio always takes more time
    That will be the last time I pocket something that large. I usually do pocketing for smaller cutouts since then I don't have to worry about holding the leftover part in place. Your right though, the large cutouts just take forever and create a lot of dust.

    I use CAMBAM to generate my g-code. I also use Mach3, seems to be very popular for the PC/machine control crowd.

    My IPM depends on what I'm cutting. For Ply and MDF I rough and profile at 120IPM with a depth of cut from 3/16" to 1/4". My finish passes are usually .050" and 60IPM. It keeps any deflection under control and gives a nice smooth finish. I could rapid close to 200 IPM, but it really doesn't get me anything with this sort of cutting.

    Good luck with the CNC, I've been having fun with mine. It's a hobby that has turned into more projects and hobbies!

    Leave a comment:


  • nikbrewer
    replied
    Re: Cabinet / Baffle CNC Service

    why do you pocket cut your through cuts for the drivers. That creates a lot more dust and time

    What g-code software are you using? I run sheetcam on mine

    You running mach3?

    Whats your max IMP for cut and job? Just curious as i built my own cnc a few yrs back

    I used to cut a lot of stuff for guys on here, but i cant keep up with the car audio side of my orders even, and the home audio always takes more time

    Leave a comment:


  • Steve Henry
    replied
    Re: Cabinet / Baffle CNC Service

    Quality work, indeed!

    Leave a comment:


  • Dave_W
    replied
    NaO Note Baffles

    Thought I'd share the latest product.

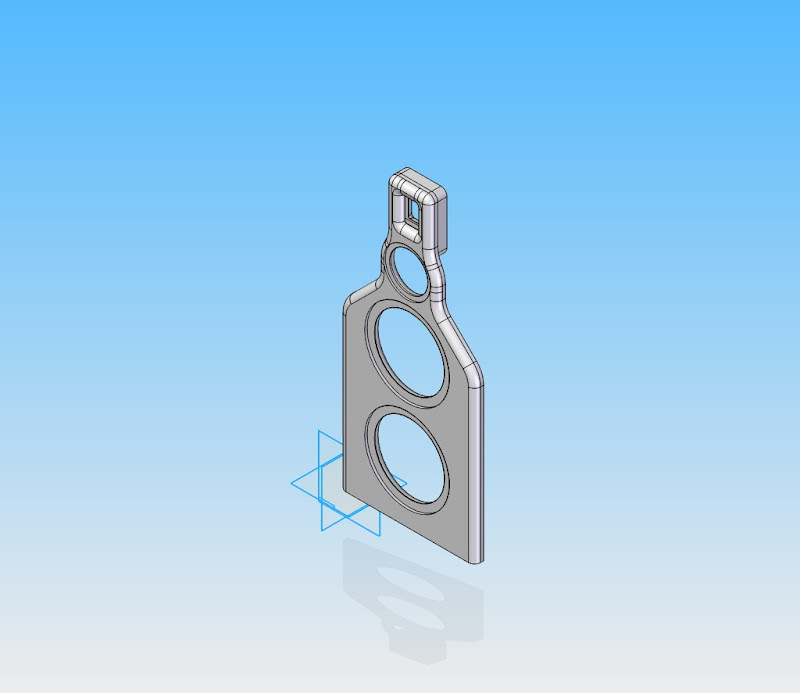

    From this:



    To this:



    To This:

    Time lapse video

    To this:




    Needs a little sanding to clean up the fuzzies.



    Up next is a Cerberus sub. Pictures to come!
    Last edited by Dave_W; 01-19-2011, 11:07 AM. Reason: Borken link.

    Leave a comment:


  • Dave_W
    replied
    Re: Cabinet / Baffle CNC Service

    Finger joints and dovetails are actually really difficult to do on a flatbed CNC. The problem is that the cutter leaves a round corner in the joint so it doesn't fit tight. The workaround to that in a box joint is to use dog-bone corners, but that presents a problem for speakers in that there are now two little gaps in each joint. Not so good for speakers.


    You can also set up a jig to hold the piece on end so the cutter leaves square corners, but its not something I anticipate setting up anytime soon.

    Those finger joints were cut on a laser machine which doesn't have those problems.



    Originally posted by spasticteapot View Post
    Hmm. How about finger joints?



    Also, can you take payment in the form of speaker parts? Goodness knows I have too many. :P

    Leave a comment:


  • Taterworks
    replied
    Re: Cabinet / Baffle CNC Service

    Hey, wow! It looks like someone else uses IronCAD! I've got IronCAD 10; I could just send you models.

    Leave a comment:


  • spasticteapot
    replied
    Re: Cabinet / Baffle CNC Service

    Originally posted by Dave_W View Post
    No, but I can for a little extra.

    My thought was that it would be best to do the round overs after the cabinet is constructed to account for any misalignment during construction.
    Hmm. How about finger joints?



    Also, can you take payment in the form of speaker parts? Goodness knows I have too many. :P

    Leave a comment:


  • Dave_W
    replied
    Re: Cabinet / Baffle CNC Service

    Dan,
    THe cabinets I've been describing use regular bu++ joints. I can do rabbets. I built the cabinets for my ZA5.2's like that. Although I'm not sure it's worth the effort. I don't plan to do it for anything else I build for myself. I think good quality glue along with a brad-nailer is just as fast and strong. It also keeps the cost down since there is less machine time.

    I can pretty much handle the design however you want. However if I had my preference CAD drawings would be first, followed by a sketch with dimensions on it, and then a written description. It seems that the more specific things are the less opportunity for errors in translation there are. This goes for more than speaker cabinets...

    Originally posted by DanP View Post
    Do your panels incorporate rabbet joints or just bu++ joints? What is your preferred format for information transfer for custom cabinets - drawings, written description, CAD, etc.?

    Dan

    Leave a comment:


  • DanP
    replied
    Re: Cabinet / Baffle CNC Service

    Originally posted by Dave_W View Post
    No, but I can for a little extra.

    My thought was that it would be best to do the round overs after the cabinet is constructed to account for any misalignment during construction.
    Do your panels incorporate rabbet joints or just bu++ joints? What is your preferred format for information transfer for custom cabinets - drawings, written description, CAD, etc.?

    Dan

    Leave a comment:


  • Dave_W
    replied
    Re: Cabinet / Baffle CNC Service

    No, but I can for a little extra.

    My thought was that it would be best to do the round overs after the cabinet is constructed to account for any misalignment during construction.



    Originally posted by spasticteapot View Post
    Does this price include roundovers?

    Leave a comment:


  • Dave_W
    replied
    Re: Cabinet / Baffle CNC Service

    Basically, yes. There are a couple of limitations, but if I can draw it, I can cut it. For example: I typically use a 1/4" end mill, so any inside corners have to have at least a 1/8" radius. Also, super intricate design with thin sections are prone to breaking out, although I doubt any speaker cabinets would have this issue.

    Thanks for the compliment on the braces. I spent a couple of hours last night laying those out...

    Originally posted by [email protected] View Post
    so, if you can draw it, you can cut it? those braces are wicked.

    Leave a comment:
