  • Re: MiniByzy (Mini Byzantium) Build Thread

    Originally posted by TN Allen View Post
    It's attractive! I thought perhaps there was an advantage over flush mounting the woofer.
    Recessing it like that allows for a better acoustic center alignment, since the guide offsets the tweeter by 2" and the slant, even further back. It also allows the woofer to simply be clamped down by the baffle face and the inner baffle the woofer sits on.

    With the baffle vertical, flush mounting to the baffle front would be a great way to go. The L.O.K.I. project will do just that.
    R = h/(2*pi*m*c) and don't you forget it! || Periodic Table as redrawn by Marshall Freerks and Ignatius Schumacher || King Crimson Radio
    Byzantium Project & Build Thread || MiniByzy Build Thread || 3 x Peerless 850439 HDS 3-way || 8" 2-way - RS28A/B&C8BG51

    95% of Climate Models Agree: The Observations Must be Wrong
    "Gravitational systems are the ashes of prior electrical systems.". - Hannes Alfven, Nobel Laureate, Plasma physicist.

    Comment


    • Re: MiniByzy (Mini Byzantium) Build Thread

      just a great build pete. a great colaboration also. thanks for the great documentation as well. look forward to see where else you go with this waveguide.
      " To me, the soundstage presentation is more about phase and distortion and less about size. However, when you talk about bass extension, there's no replacement for displacement". Tyger23. 4.2015

      Quote Originally Posted by hongrn. Oct 2014
      Do you realize that being an American is like winning the biggest jackpot ever??

      http://www.midwestaudioclub.com/spot...owell-simpson/
      http://s413.photobucket.com/albums/pp216/arlis/

      Comment


      • Re: MiniByzy (Mini Byzantium) Build Thread

        They look even better in person. Cabinets are real works of art. And dead dead dead.

        Pete has said he's tweaked the sound since I heard it, and wow did what I hear impress me. Really put waveguide on the map for me (admittedly a newbie to speaker design).

        Comment


        • Re: MiniByzy (Mini Byzantium) Build Thread

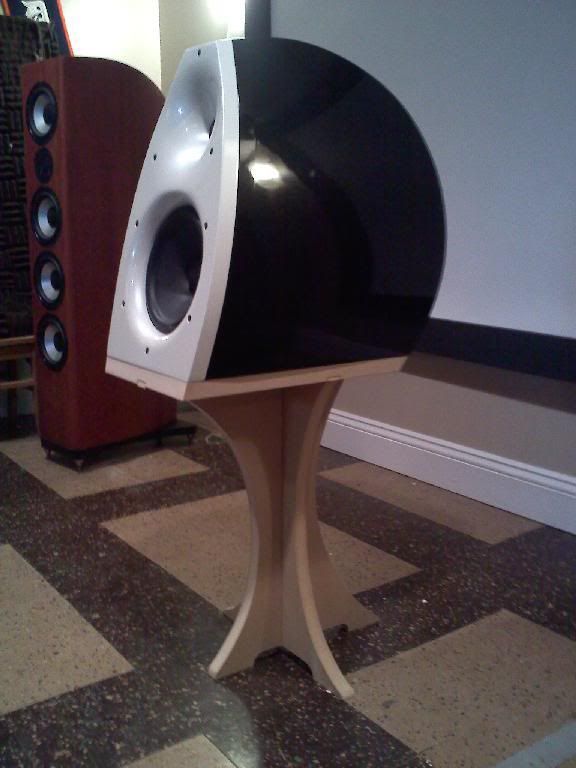

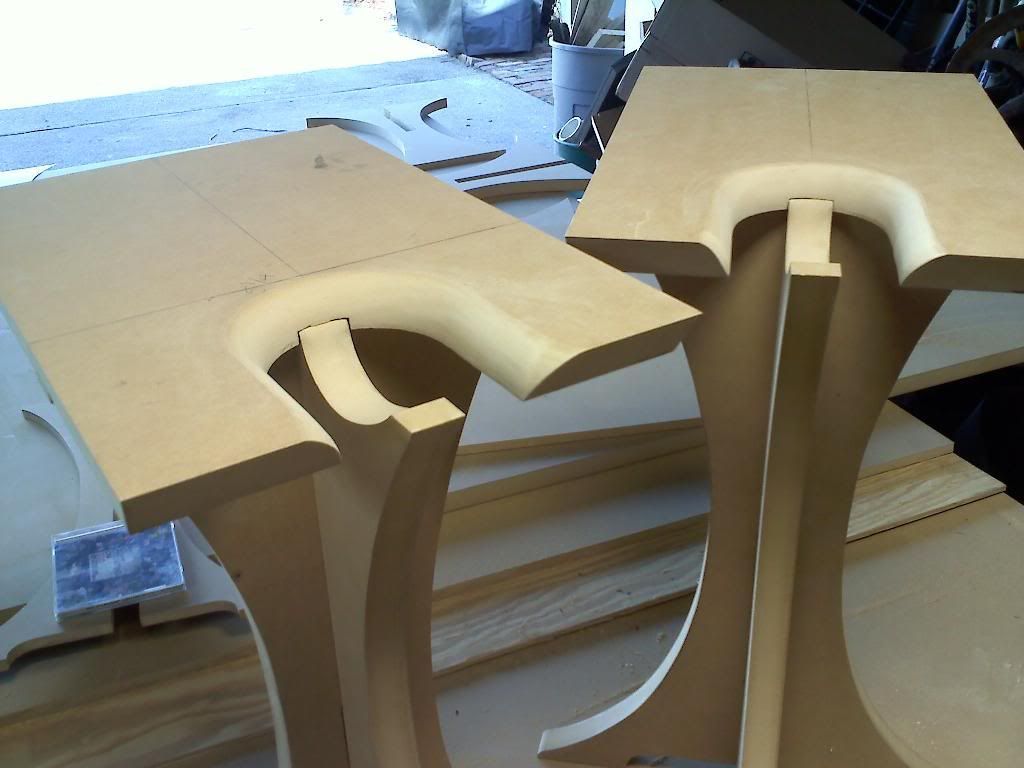

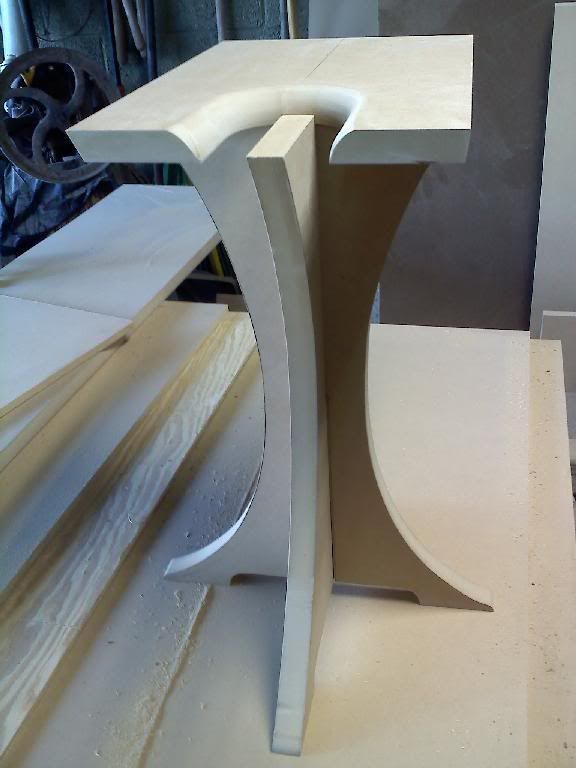

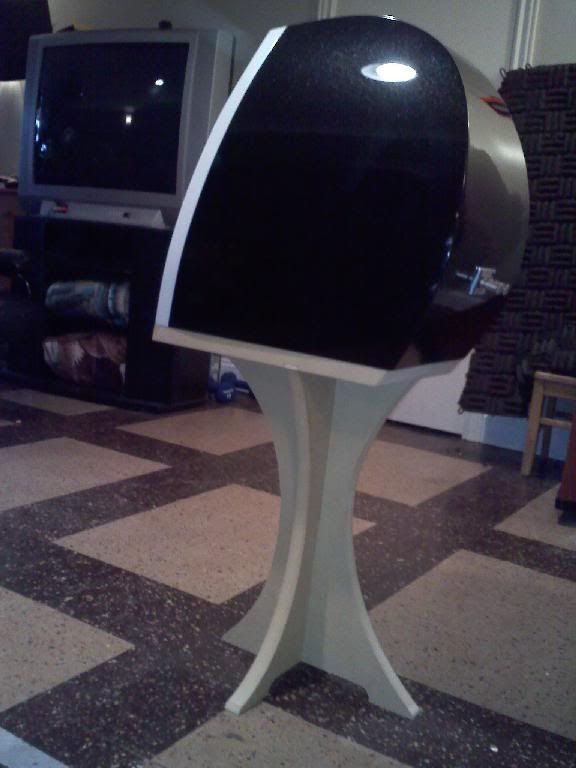

          Ed's making some matching stands. The unfinished prototypes are below. He's scooping out just a bit more material on the upright piece below the vent.

          The upright pieces are to be painted to match the cabinet sides, the top, to match the cabinet baffle.

          What do you guys think?







          Last edited by Pete Schumacher; 03-10-2012, 04:28 PM.
          R = h/(2*pi*m*c) and don't you forget it! || Periodic Table as redrawn by Marshall Freerks and Ignatius Schumacher || King Crimson Radio
          Byzantium Project & Build Thread || MiniByzy Build Thread || 3 x Peerless 850439 HDS 3-way || 8" 2-way - RS28A/B&C8BG51

          95% of Climate Models Agree: The Observations Must be Wrong
          "Gravitational systems are the ashes of prior electrical systems.". - Hannes Alfven, Nobel Laureate, Plasma physicist.

          Comment


          • Re: MiniByzy (Mini Byzantium) Build Thread

            Ed's making some matching stands. The unfinished prototypes are below. He's scooping out just a bit more material on the upright piece below the vent.

            The upright pieces are to be painted to match the cabinet sides, the top, to match the cabinet baffle.

            What do you guys think?
            My first impression is they're beautiful by themselves but don't integrate as well as they could with the speaker's design.

            I think they should coninue the lines of the enclosure to the floor, and the back leg does this well.

            The front and side legs need to have a little better "flow".

            Make sense?

            EDIT:

            The more I look at it, the more I like it.

            I think if you moved the "toe" of the front leg further forward and made the curve like a bass clef, you'd be right there.

            https://www.facebook.com/lowecustomguitar

            www.lowecustomguitars.com

            Comment


            • Re: MiniByzy (Mini Byzantium) Build Thread

              Originally posted by BeeTL View Post
              They're beautiful by themselves but don't integrate well with the speaker's design.

              I think they should coninue the lines of the enclosure to the floor, and the back leg does this well.

              The front and side legs need to have a little better "flow".

              Make sense?
              Once the uprights are that same Cadillac Black Diamond, they'll visually become harder to distinguish, and form a more solid shape. I'm anxious to see how that affects the look.
              R = h/(2*pi*m*c) and don't you forget it! || Periodic Table as redrawn by Marshall Freerks and Ignatius Schumacher || King Crimson Radio
              Byzantium Project & Build Thread || MiniByzy Build Thread || 3 x Peerless 850439 HDS 3-way || 8" 2-way - RS28A/B&C8BG51

              95% of Climate Models Agree: The Observations Must be Wrong
              "Gravitational systems are the ashes of prior electrical systems.". - Hannes Alfven, Nobel Laureate, Plasma physicist.

              Comment


              • Re: MiniByzy (Mini Byzantium) Build Thread

                Once the uprights are that same Cadillac Black Diamond, they'll visually become harder to distinguish, and form a more solid shape. I'm anxious to see how that affects the look.
                I don't know I've I've said it before, but the MiniByzy is one of the most visually strking design objects I've ever seen...period.

                I really think they're something special.
                https://www.facebook.com/lowecustomguitar

                www.lowecustomguitars.com

                Comment


                • Re: MiniByzy (Mini Byzantium) Build Thread

                  Originally posted by BeeTL View Post
                  My first impression is they're beautiful by themselves but don't integrate as well as they could with the speaker's design.

                  I think they should coninue the lines of the enclosure to the floor, and the back leg does this well.

                  The front and side legs need to have a little better "flow".

                  Make sense?

                  EDIT:

                  The more I look at it, the more I like it.

                  I think if you moved the "toe" of the front leg further forward and made the curve like a bass clef, you'd be right there.

                  I'll have to pass along your suggestion. It would certainly follow the line a bit better, but the protruding beam might pose some other "tripping" issues. The center of mass of that cabinet is in the back half, actually directly over the vertical beam that runs side to side.

                  But I get your idea . . .
                  R = h/(2*pi*m*c) and don't you forget it! || Periodic Table as redrawn by Marshall Freerks and Ignatius Schumacher || King Crimson Radio
                  Byzantium Project & Build Thread || MiniByzy Build Thread || 3 x Peerless 850439 HDS 3-way || 8" 2-way - RS28A/B&C8BG51

                  95% of Climate Models Agree: The Observations Must be Wrong
                  "Gravitational systems are the ashes of prior electrical systems.". - Hannes Alfven, Nobel Laureate, Plasma physicist.

                  Comment


                  • Re: MiniByzy (Mini Byzantium) Build Thread

                    Pete, I like the style, but they look very tipsy, considering the weight they support! The bottom of the base just looks too narrow in the pics to be stable when bumped by a child.

                    I have always been a bit concerned with my own Modula MTs on a relatively tall stand.....heavy speaker with little mass under it.....a formula for disaster if there are children in the home. If there are never children around, it may not be a concern, but few homes are always without visiting (if not resident) children.

                    Marv

                    Comment


                    • Re: MiniByzy (Mini Byzantium) Build Thread

                      Besides them looking like a hippo balancing on a bar stool, they don't appear to flow either.
                      "He who fights with monsters should look to it that he himself does not become a monster. And when you gaze long into an abyss the abyss also gazes into you." Friedrich Nietzsche

                      http://www.diy-ny.com/

                      Comment


                      • Re: MiniByzy (Mini Byzantium) Build Thread

                        I'm with everybody else.
                        Where's the 'substance' or 'heft' that
                        the cabinets inspire or beg the stands to have?

                        I would be leery of putting those cabs on those stands.

                        Later,
                        Wolf
                        "Wolf, you shall now be known as "King of the Zip ties." -Pete00t
                        "Wolf and speakers equivalent to Picasso and 'Blue'" -dantheman
                        "He is a true ambassador for this forum and speaker DIY in general." -Ed Froste
                        "We're all in this together, so keep your stick on the ice!" - Red Green aka Steve Smith

                        *InDIYana event website*

                        Photobucket pages:
                        https://app.photobucket.com/u/wolf_teeth_speaker

                        My blog/writeups/thoughts here at PE:
                        http://techtalk.parts-express.com/blog.php?u=4102

                        Comment


                        • Re: MiniByzy (Mini Byzantium) Build Thread

                          I'll have to pass along your suggestion. It would certainly follow the line a bit better, but the protruding beam might pose some other "tripping" issues. The center of mass of that cabinet is in the back half, actually directly over the vertical beam that runs side to side.

                          But I get your idea . . .
                          When I first saw them it took me a long time to realize the front baffle was flat and not curved like the other surfaces.

                          I'd suggest the tip of the "clef" should end where the baffle would touch the floor if the plane were extended.

                          It's hard to tell from the angle of the photo if the side and back legs continue the curves that end just above them, but if not, I'd suggest they should.

                          The speakers deserve a stand that equals and complements their beauty.

                          https://www.facebook.com/lowecustomguitar

                          www.lowecustomguitars.com

                          Comment


                          • Re: MiniByzy (Mini Byzantium) Build Thread

                            OUCH!!! A hippo balancing on a bar stool? HA! I was trying to minimize the stands mass; the speaker shape is "heavy" enough. I've tried different shaped bases; some 2 tube to 3 tube design ideas; nothing seems to fit the Aurora until this one. It may look "flimsy" but it actually is made from 1" thick Plumcreek MDF. Its more like an I beam than a speaker stand. I think it'll hold at least 300lbs. I'll see where it breaks at; I have 700 lbs of weights here. I think it'll hold it all. I'll spray the prototypes black and take pics of them holding up their "Hippos". I think the black will work better than the raw MDF. Funny you should mention the bass cleft; my first design was that exact shape with 2 tubes running vertically through it to hold the top and bottom apart. I couldn't bend 1/8th hardboard that severely. I put too much time in the speakers; spending another 20 hours on fiberglass for stands isn't in the cards.
                            The Past is history. The Future is a mystery. Today is a gift; that's why its called the Present. (Grand Master Oogway, Kung Fu Panda)

                            Comment


                            • Re: MiniByzy (Mini Byzantium) Build Thread

                              I like the look of the stand. If you want to take away some of the "hippo" look maybe beefing up the feet a little bit.

                              This is a crude paint drawing but gives you the idea.

                              Dave
                              Attached Files
                              http://www.pellegreneacoustics.com/

                              Trench Seam Method for MDF
                              https://picasaweb.google.com/101632266659473725850

                              Comment


                              • Re: MiniByzy (Mini Byzantium) Build Thread

                                What I like about the Clef idea is that you would then have something paralleling the angle of the baffle.

                                Comment
