MiniByzy (Mini Byzantium) Build Thread

[Pete Schumacher]

Re: MiniByzy (Mini Byzantium) Build Thread

Should have used "mini" passive radiators instead :D

We actually thought about it. The only place to really put it is on the bottom, which is usually a difficult placement for a PR.

But the tuning isn't that low, and the port won't be that long. It will easily fit within the enclosure with plenty of clearance to any surface. We'll tune it in place, with a surface below the feet, which should reduce the port length even further. Even with 100W driving the woofer, port velocity at 34Hz won't exceed 30m/s. Could realistically get away with 2.5" port, 6.5" long, which pushes up self resonance from 675Hz to 1000Hz at the penalty of slightly more port noise at ridiculous power levels.

But where do you find a nice looking 2.5" diameter port? The precision port with the flare is pretty nice looking, but I'd rather see the flare cut into the MDF and painted for a seamless surface. This one is OK, but what I'd rather have is some 2.5" diameter plastic stock PVC that I could mount in a recess in the bottom piece, and then turn a 1" roundover at the exit.

[czag]

Re: MiniByzy (Mini Byzantium) Build Thread

But where do you find a nice looking 2.5" diameter port?

I have had good luck gluing two of these together using 2 part epoxy. I cut each down to half the needed length and file down the inside flare's ribs down so I can take the whole thing out if necessary. Just a thought for the future. Much cheaper than the Precision ports.

Chris

[Pete Schumacher]

Re: MiniByzy (Mini Byzantium) Build Thread

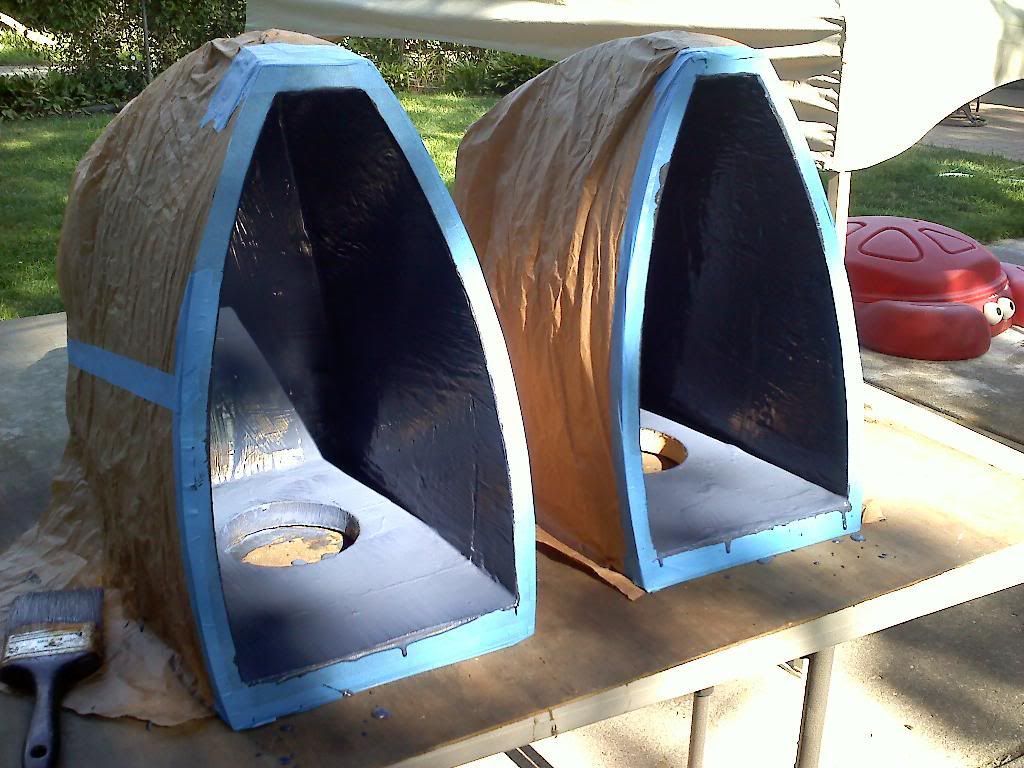

Ed is applying a few layers of CAE VB1x to the aluminum backed rubber that was applied to the walls. PE part number 268-256. Here's the first coat sitting and waiting to dry.

[DanP]

Re: MiniByzy (Mini Byzantium) Build Thread

But where do you find a nice looking 2.5" diameter port? The precision port with the flare is pretty nice looking, but I'd rather see the flare cut into the MDF and painted for a seamless surface. This one is OK, but what I'd rather have is some 2.5" diameter plastic stock PVC that I could mount in a recess in the bottom piece, and then turn a 1" roundover at the exit.

There's a separate section at Lowes (I assume HD as well, but I refuse to step foot in there) for electrical conduit PVC that has some different sizes, one of which is 2.5" ID.

Those enclosures are going to be very impressive when they're done. I saw the Byzantium Sr. enclosures at InDIYana 2 years ago and they looked incredible, but I have a feeling this smaller scale version is going to be even more attractive. Well done guys.

Dan

[Pete Schumacher]

Re: MiniByzy (Mini Byzantium) Build Thread

There's a separate section at Lowes (I assume HD as well, but I refuse to step foot in there) for electrical conduit PVC that has some different sizes, one of which is 2.5" ID.

Those enclosures are going to be very impressive when they're done. I saw the Byzantium Sr. enclosures at InDIYana 2 years ago and they looked incredible, but I have a feeling this smaller scale version is going to be even more attractive. Well done guys.

Dan

Thanks for the idea on where to find it.

You should swing by Ed's for a first hand look. He's in Eastpointe, right there near Detroit.

[Pete Schumacher]

Re: MiniByzy (Mini Byzantium) Build Thread

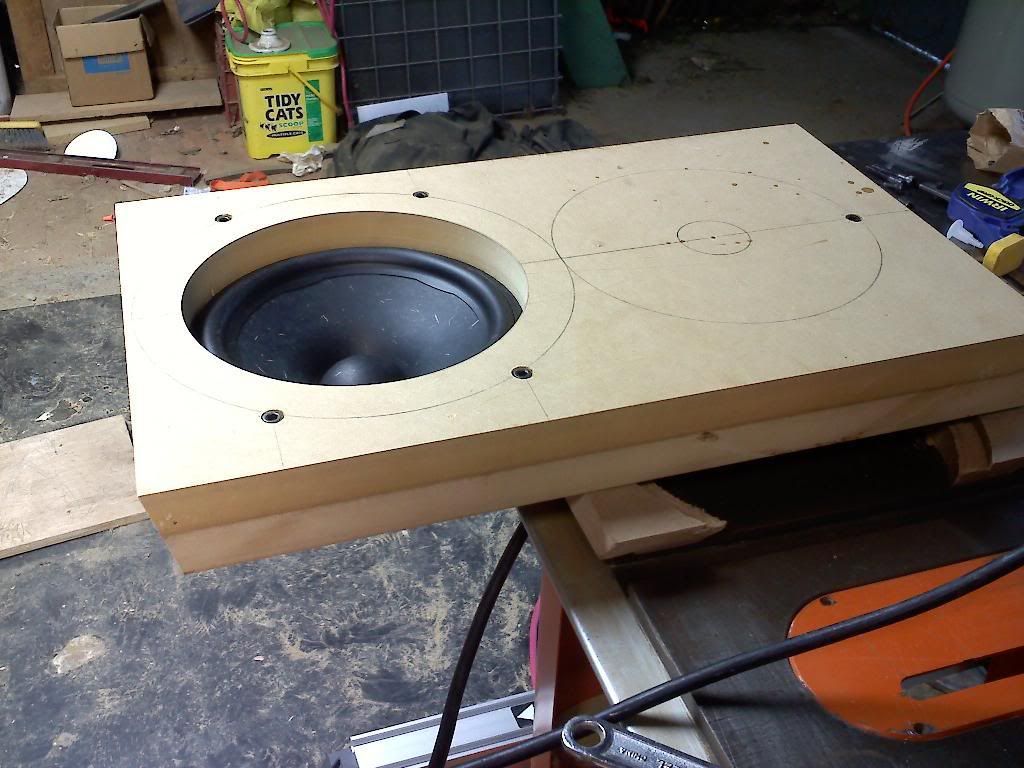

Woofer holes are cut. Next step will be adding a 1" radius round over on the woofer holes. Then, onto the radarcarve for waveguide forming.

[Pete Schumacher]

Re: MiniByzy (Mini Byzantium) Build Thread

Here's a shot of the look with the roundover applied to the through hole.

[Pete Schumacher]

Re: MiniByzy (Mini Byzantium) Build Thread

Inching closer to completed cabinets.

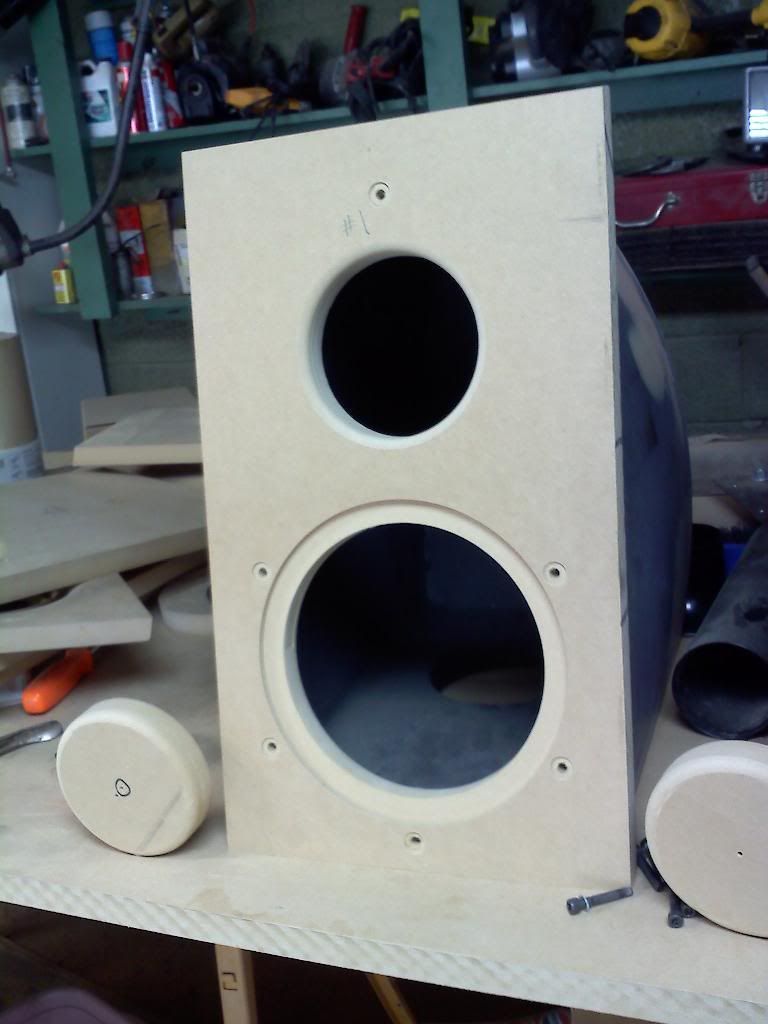

The inner baffle below has the recess that accepts the NE225W. On top of that will be placed the outer baffle, holding the woofer down by sandwiching it between the baffles. The hole in the tweeter spot is there to accept the waveguide which will consist of a disc mounted to the outer baffle, shown at the bottom of the picture.

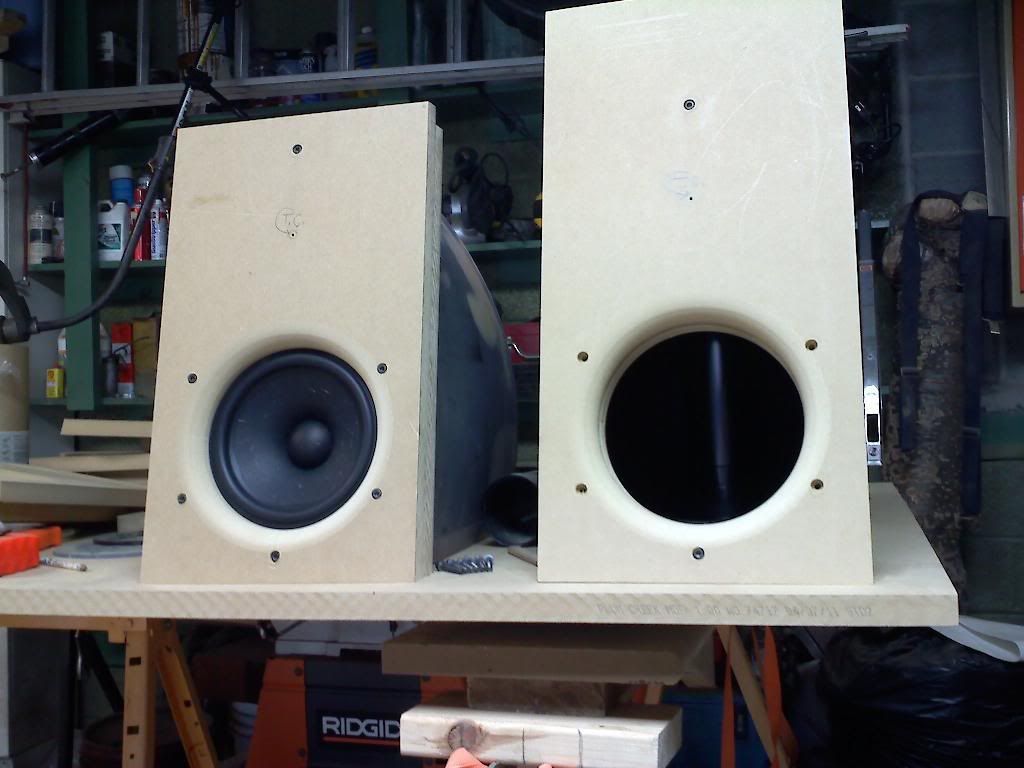

The matched pair.



Next up, carving the waveguides into the baffle.

[Pete Schumacher]

Re: MiniByzy (Mini Byzantium) Build Thread

Oh man, these are looking fantastic.

[Pete Schumacher]

Re: MiniByzy (Mini Byzantium) Build Thread

Outer baffle from both sides. Tweeter, probably the RS28F, will be mounted by its flange to the disc.

[ssyfert]

Re: MiniByzy (Mini Byzantium) Build Thread

Pete, is it the NE225W-04 that's on sale, or the -08?

This thread is really fun to watch, I keep staring at the cabinets saying 'is there some way I could make a simpler version of these, something more attainable for a novice?' I just can't see it yet, maybe you could offer some tips for others who might want to build these.

[Pete Schumacher]

Re: MiniByzy (Mini Byzantium) Build Thread

Pete, is it the NE225W-04 that's on sale, or the -08?

This thread is really fun to watch, I keep staring at the cabinets saying 'is there some way I could make a simpler version of these, something more attainable for a novice?' I just can't see it yet, maybe you could offer some tips for others who might want to build these.

The 4 Ohm version.

As for a simpler version of the cabinet? I'm hoping the waveguide test mule works out, a baffle made to fit the PE .75cf cabinet. Ed might make those baffles available to the DIY here if the price for his time and effort is right.

More on that as testing actually begins.

[Pete Schumacher]

Re: MiniByzy (Mini Byzantium) Build Thread

Ed just sent me a shot of the back side of the inner baffle. No one will see this of course, as the baffle will be epoxied into place. :D :eek:

[Pete Schumacher]

Re: MiniByzy (Mini Byzantium) Build Thread

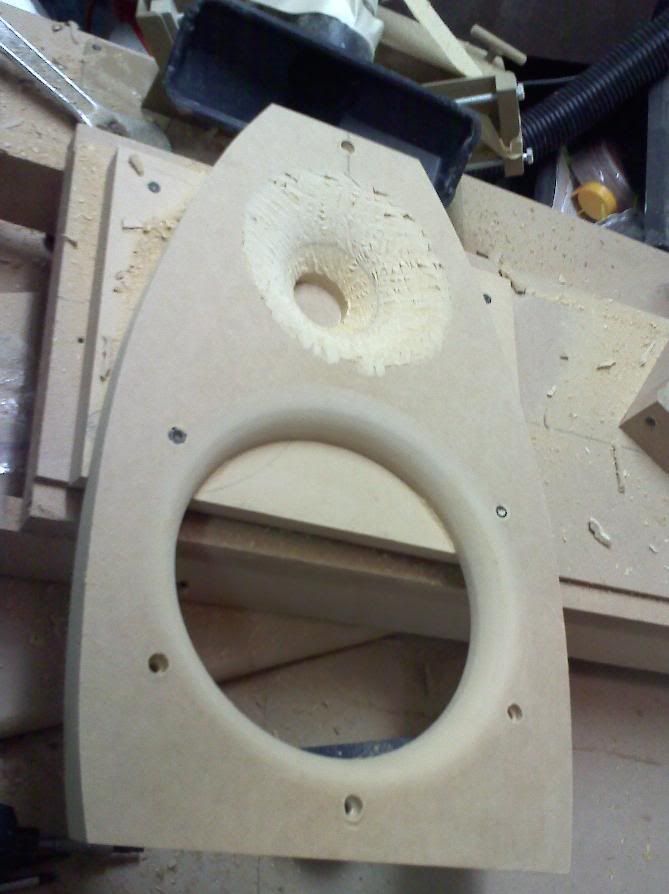

Waveguide rough cut. 2nd pass takes the clutter off.

He says the first one is done with the 2nd pass and he's starting on the second one now.

[killersoundz]

Re: MiniByzy (Mini Byzantium) Build Thread

These are crazy!!!!!!
