  • Big nipples

    PE only had 2 of the 1009 diaphragms in stock, so it may be a while before I can finish this. But at least I'm done with the smell of burning steel. It uses a column of 5/8" neo magnets that go in the inner pipe.

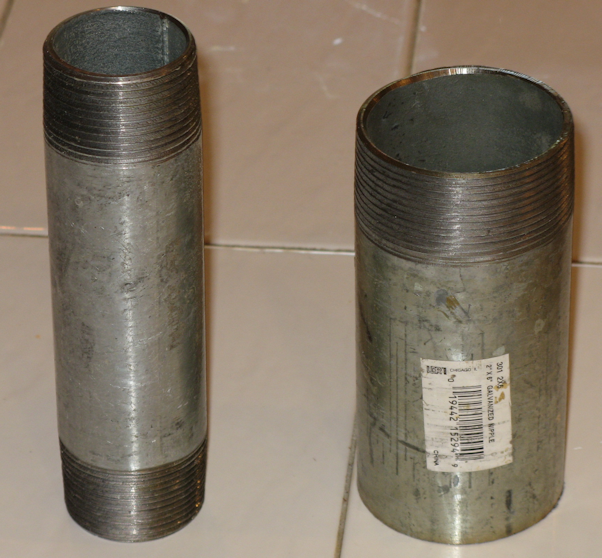

    Uncut nipples:

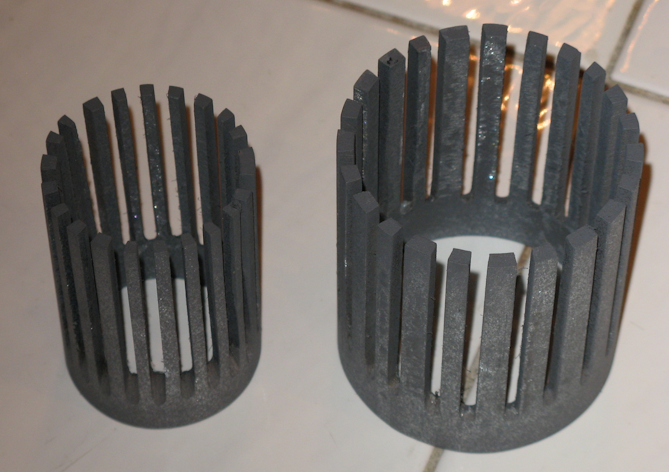

    Cut and primed:

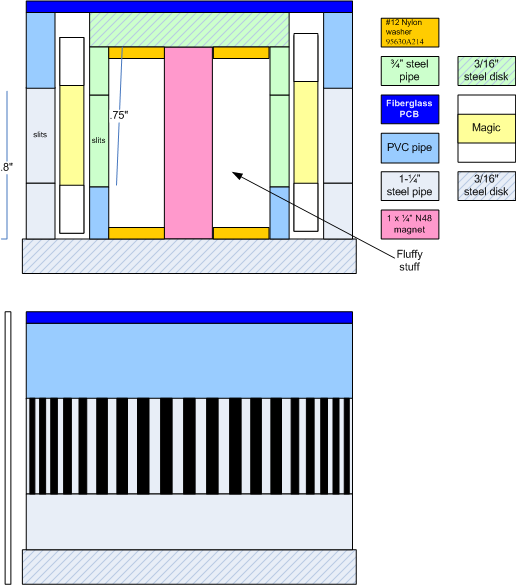

    This is the design that uses smaller nipples.
    Free Passive Speaker Designer Lite (PSD-Lite) -- http://www.audiodevelopers.com/Softw...Lite/setup.exe

  • #2
    Re: Big nipples

    Who's going to be the first to ask, "What the heck is this?"
    Tritrix HT:http://techtalk.parts-express.com/sh...d.php?t=222519
    Dayton 12" Subwoofer: http://techtalk.parts-express.com/sh...d.php?t=222930
    Overnight Sensations: http://techtalk.parts-express.com/sh...d.php?t=223751
    Cerberus sub: http://techtalk.parts-express.com/sh...hlight=cerebus
    Duellatis: http://techtalk.parts-express.com/sh...d.php?t=224943
    NTN's: http://techtalk.parts-express.com/sh...d.php?t=227902

    Comment


    • #3
      Re: Big nipples

      Originally posted by Soundslike View Post
      Who's going to be the first to ask, "What the heck is this?"
      I'm seeing an omnidirectional tweeter, but the "magic" is escaping me. Accordian, maybe, like a circular AMT?
      "It suggests that there is something that is happening in the real system that is not quite captured in the models."

      Comment


      • #4
        Re: Big nipples

        Originally posted by Soundslike View Post
        Who's going to be the first to ask, "What the heck is this?"
        Looks like the start of a DIY quasi-omnidirectional tweeter, a cylindrical ribbon radiator. That's my guess.

        Edit: Deward beat me to it...


        .
        "Our Nation’s interests are best served by fostering a peaceful global system comprised
        of interdependent networks of trade, finance, information, law, people and governance."
        - from the October 2007 U.S. Naval capstone doctrine
        A Cooperative Strategy for 21st Century Seapower
        (a lofty notion since removed in the March 2015 revision)

        Comment


        • #5
          Re: Big nipples

          Originally posted by Deward Hastings View Post
          ...Accordian, maybe, like a circular AMT?
          See figure 11:
          http://www.google.com/patents?id=Yjw...page&q&f=false

          For this design, the magic will just be 4 of the 1109 diaphragms, wrapped around the inner structure:


          I actually wanted to make a much larger one using 8 low-cost diaphragms from Hygeia (for the RT-5001), but I'm having some language barrier problems. If anyone speaks Chinese and wants to help, send me a PM :o.

          I've got a diaphragm ready to etch for the small nipple version, but it's been sitting around for a couple of years :(. I thought maybe doing the larger version would get me motivated to finish off the micro version.

          The magnet structure for the small version is on the left:
          Click image for larger version

Name:	microtweeter2.jpg
Views:	5
Size:	81.3 KB
ID:	1135224
          Free Passive Speaker Designer Lite (PSD-Lite) -- http://www.audiodevelopers.com/Softw...Lite/setup.exe

          Comment


          • #6
            Re: Big nipples

            Originally posted by Soundslike View Post
            Who's going to be the first to ask, "What the heck is this?"
            A 360 degree dispersion AMT. He's been talking about for quite a while now.

            A 'clone' of the attached below...

            Later,
            Wolf
            Attached Files
            "Wolf, you shall now be known as "King of the Zip ties." -Pete00t
            "Wolf and speakers equivalent to Picasso and 'Blue'" -dantheman
            "He is a true ambassador for this forum and speaker DIY in general." -Ed Froste
            "We're all in this together, so keep your stick on the ice!" - Red Green aka Steve Smith

            *InDIYana event website*

            Photobucket pages:
            https://app.photobucket.com/u/wolf_teeth_speaker

            My blog/writeups/thoughts here at PE:
            http://techtalk.parts-express.com/blog.php?u=4102

            Comment


            • #7
              Re: Big nipples

              Originally posted by Wolf View Post
              A 360 degree dispersion AMT. He's been talking about for quite a while now.
              I've made many, many Heils, and even wrote a DIY "how-to" back in 1974 for AA (see the link). But I sort of got burnt out on them, and I've had trouble getting motivated to finish that micro version. But I'll get there eventually.
              http://www.audiodevelopers.com/misc/...icle/index.htm

              My wife got me a a rather large lathe for Christmas (1948 vintage), so I've been thinking about cylindrical speakers lately :D Once I gear it down it should be able to turn 12" cylinders.

              A 'clone' of the attached below...
              Nope...that is a true ribbon, not an AMT. Hygeia makes Heil drivers that they call "Aero Striction Tweeters", but nothing circular. I don't know of anyone who has made a cylindrical Heil. And I don't think anyone has tried making an omnidirectional "micro Heil".
              Free Passive Speaker Designer Lite (PSD-Lite) -- http://www.audiodevelopers.com/Softw...Lite/setup.exe

              Comment


              • #8
                Re: Big nipples

                Very interesting..., thanks gentlemen, to all who offered an explanation..

                Ron
                Tritrix HT:http://techtalk.parts-express.com/sh...d.php?t=222519
                Dayton 12" Subwoofer: http://techtalk.parts-express.com/sh...d.php?t=222930
                Overnight Sensations: http://techtalk.parts-express.com/sh...d.php?t=223751
                Cerberus sub: http://techtalk.parts-express.com/sh...hlight=cerebus
                Duellatis: http://techtalk.parts-express.com/sh...d.php?t=224943
                NTN's: http://techtalk.parts-express.com/sh...d.php?t=227902

                Comment


                • #9
                  Re: Big nipples

                  Neil,
                  How would you compare/contrast the diaphragms PE sells with the Beyma TPL-150 diaphragm?

                  I'm thinking a flat neo motor would be a piece of cake, but I sure don't want to tangle with the diaphragms like you did! I was blown away when I first read your article in the 70's.
                  Paul

                  Comment


                  • #10
                    Re: Big nipples

                    Originally posted by Paul W View Post
                    Neil,
                    How would you compare/contrast the diaphragms PE sells with the Beyma TPL-150 diaphragm?
                    It looks like the Beyma units use a Kapton film, which will result in better power handling (very high melting point). The PE units are either polyethylene or mylar--actually I haven't even opened them up to look at them. My preference is for the softer polyethylene material due to better internal damping. As long as the material is fairly thin and lightweight, the sound should be comparable, although some people claim to hear differences (ESS used all 3 materials through the years).

                    The diaphragms I wanted to get are the ones made by Hygeia--$18 vs $70 for the units from PE (1107). But after several rounds of emails, each time asking how many units I wanted to buy, I gave up on Hygeia, at least for now.

                    I'm thinking a flat neo motor would be a piece of cake...
                    Paul
                    I've made a number of flat ones, and they are usually fairly easy. However, probably the easiest uses 2"x3" steel bar stock. See http://home.comcast.net/~neilandbarb...DIY1/index.htm.

                    The mini-Heil shown below is also fairly easy to build.


                    ...but I sure don't want to tangle with the diaphragms like you did! I was blown away when I first read your article in the 70's.
                    Paul
                    I had some fairly good success with etching the diaphragms, but for some reason I just can't get motivated to make some more. I even had a template manufactured so that I could UV-cure etch resist, but I've never used it...
                    Free Passive Speaker Designer Lite (PSD-Lite) -- http://www.audiodevelopers.com/Softw...Lite/setup.exe

                    Comment


                    • #11
                      Re: Big nipples

                      What is pleat depth of the different diaphragms? (PE 1107, 1108, Beyma, Hygeia)

                      Comment


                      • #12
                        Re: Big nipples

                        Originally posted by Paul W View Post
                        What is pleat depth of the different diaphragms? (PE 1107, 1108, Beyma, Hygeia)
                        That's a good question. If I'm going to use a factory-made diaphragm I usually just buy one and make the gap in the magnet structure to fit. But it would be nice to know before buying. :rolleyes:

                        In general, the larger diaphragms use thicker traces and are deeper as a result. I'll measure my 1109's when I get back home. I don't have a 1107 or 1108 right now.

                        When I was looking at using standard pipe sizes I found 3 combinations that would work to make a cylindrical Heil--see the chart below. Obviously, knowing the diaphragm depth would help. Hygeia finally got back to me about the small diaphragms that they use in the RT2002--about $3, with an apology about the high price due to the small quantity that I wanted. :D So I'm kinda jazzed--a high-quality omnidirectional Heil tweeter that can be build on a low budget is exciting stuff.

                        BTW, the magnet structure in the first pictures of this thread uses the 2" and 1-1/4" pipe nipples. I wanted to build the version with the 4" pipe, but 8 of the 1109 ESS diaphragms were too expensive for a prototype, so I scaled back.

                        Click image for larger version

Name:	pipes.jpg
Views:	1
Size:	25.1 KB
ID:	1135253
                        Free Passive Speaker Designer Lite (PSD-Lite) -- http://www.audiodevelopers.com/Softw...Lite/setup.exe
