  • #61
    Re: "Trichotomy"- an oddly non-disparate design...

    Wolf--Any chance that we could see FR of Before/After the final tweak, which addressed the sibilance issue?

    Comment


    • #62
      Re: "Trichotomy"- an oddly non-disparate design...

      Originally posted by PassingInterest View Post
      Wolf--Any chance that we could see FR of Before/After the final tweak, which addressed the sibilance issue?
      I'll do that later when i get home.
      Later,
      Wolf
      "Wolf, you shall now be known as "King of the Zip ties." -Pete00t
      "Wolf and speakers equivalent to Picasso and 'Blue'" -dantheman
      "He is a true ambassador for this forum and speaker DIY in general." -Ed Froste
      "We're all in this together, so keep your stick on the ice!" - Red Green aka Steve Smith

      *InDIYana event website*

      Photobucket pages:
      https://app.photobucket.com/u/wolf_teeth_speaker

      My blog/writeups/thoughts here at PE:
      http://techtalk.parts-express.com/blog.php?u=4102

      Comment


      • #63
        Re: "Trichotomy"- Painting almost complete!

        Let's just say that I got what I wanted out of the finish this time around, and I will post pics when I get them reassembled. I have to wait a couple more hours before I can apply the clearcoat and wait a few days to final cure.

        Stay tuned!
        Wolf

        Oh yeah- And I will be trying the 'Spiral-horn' port thingy with these too. Just an A/B mostly.
        "Wolf, you shall now be known as "King of the Zip ties." -Pete00t
        "Wolf and speakers equivalent to Picasso and 'Blue'" -dantheman
        "He is a true ambassador for this forum and speaker DIY in general." -Ed Froste
        "We're all in this together, so keep your stick on the ice!" - Red Green aka Steve Smith

        *InDIYana event website*

        Photobucket pages:
        https://app.photobucket.com/u/wolf_teeth_speaker

        My blog/writeups/thoughts here at PE:
        http://techtalk.parts-express.com/blog.php?u=4102

        Comment


        • #64
          Re: "Trichotomy"- an oddly non-disparate design...

          I'm really looking forward to seeing your latest creation. I saw the photos from Chicago -- very interesting look.
          Tritrix HT:http://techtalk.parts-express.com/sh...d.php?t=222519
          Dayton 12" Subwoofer: http://techtalk.parts-express.com/sh...d.php?t=222930
          Overnight Sensations: http://techtalk.parts-express.com/sh...d.php?t=223751
          Cerberus sub: http://techtalk.parts-express.com/sh...hlight=cerebus
          Duellatis: http://techtalk.parts-express.com/sh...d.php?t=224943
          NTN's: http://techtalk.parts-express.com/sh...d.php?t=227902

          Comment


          • #65
            Re: "Trichotomy"- Finishes and an added tweak...

            Argh!!, but a mild one. The painter's tape took off a bit of clear-coat in spots. I'll wait until Spring to finish it, or touch it up/repair. It may be that the Polycrylic and Chalkboard paint weren't the most friendly bonding paints, but only a few places were less than ideal.

            I used my usual Duplicolor High-Build Filler Primer, and then proceeded with Krylon chalkboard paint for a thicker application and semi-flat finish. Then I topcoated with Polycrylic Spray.

            Waited a couple days, and then masked the entire cabinet off to apply the color onto the side-panels. I used Scotch's Blue Painter's tape this time (when I've always used Duck before, but the Scotch had a less-strong adhesive so I figured it would pull off easier, and it took some clear-coat off the chalkboard paint with it), since I had so much area to cover.

            I then lightly hand-sanded the inner panels, and wiped out the dust. I applied Rustoleum (only maker that had the colors, or it woulda been Krylon) Antique Brass Metallic, waited for it to set, then applied American Accents Stone "Mineral Brown" on top. I applied about 2-3 coats of the Brass, and same on the stone, so the brass sheen comes through the rich stone-colored texture. It looks really good against the black majority, marble baffle, and kevlar/paper midbasses.

            Tweak:
            I'm currently awaiting E6000 adhesive to set on the rear of my BG's to hold the 3/8" thick sport-florring rubber pads (shredded tires). This was a tweak I did in the Attitudes on the chamber cups for the Usher midranges. I applied a square there that had the corners touching the perimeter, and that is how most had heard them. It had such a profound change on the sound that it must have damped the plastic's resonances that were formerly emitted under operation. While I know that the BG's likely have some damping internally, I couldn't let it go completely without trying this to appease my mind of probable causes. (Also let it be known that I had to seal my BG's with E6000 previously; both from the cabinet volume to the cap and through the faceplate. Just a perimeter application is all that was needed there. It squeaked without it.) I figured the dark character typically established in the Neo3 could be nothing more than an undamped chamber or one that oscillated with internal pressures.

            I'll let you all know my findings on this! Pictures will be posted soon....

            Later,
            Wolf

            In addition, a note from Mark at Meniscus about their preference in mounting the BG Neo3:

            We like to pop
            the stock back cup off and use a deeper, sealed cavity behind the tweeter
            - about 2 inches depth, built up from behind the baffle with scrap wood. >Yes, usually a bit of Dacron will do for fill.

            Regards,
            Mark
            "Wolf, you shall now be known as "King of the Zip ties." -Pete00t
            "Wolf and speakers equivalent to Picasso and 'Blue'" -dantheman
            "He is a true ambassador for this forum and speaker DIY in general." -Ed Froste
            "We're all in this together, so keep your stick on the ice!" - Red Green aka Steve Smith

            *InDIYana event website*

            Photobucket pages:
            https://app.photobucket.com/u/wolf_teeth_speaker

            My blog/writeups/thoughts here at PE:
            http://techtalk.parts-express.com/blog.php?u=4102

            Comment


            • #66
              Re: "Trichotomy"- PICTURES!

              Added mass:


              Side-shot:


              rear-shot with my second light source reflecting in the port flare:


              Angle shot, drivers mounted!


              I'll update the xover schematic, and show the changed sim of the tweaked top-end shortly...

              Later,
              Wolf

              PS- can you see the peeled clear-coat?
              "Wolf, you shall now be known as "King of the Zip ties." -Pete00t
              "Wolf and speakers equivalent to Picasso and 'Blue'" -dantheman
              "He is a true ambassador for this forum and speaker DIY in general." -Ed Froste
              "We're all in this together, so keep your stick on the ice!" - Red Green aka Steve Smith

              *InDIYana event website*

              Photobucket pages:
              https://app.photobucket.com/u/wolf_teeth_speaker

              My blog/writeups/thoughts here at PE:
              http://techtalk.parts-express.com/blog.php?u=4102

              Comment


              • #67
                Re: "Trichotomy"- an oddly non-disparate design...

                That is one crazy lookin' speaker, man, looks good, though.

                You can barely see it, but I'm on a 42" screen right now, lol.

                रेतुर्न तो थे स्रोत
                return to the source
                leviathan system thread
                deadhorse thread
                shockwave build thread

                instagram :: greywarden_13

                in war, victory . . . in peace, vigilance . . . in death, sacrifice.

                Comment


                • #68
                  Re: "Trichotomy"- Final Simulation and schematics...

                  I overlayed the FR plots of before and after the tweaks on the topend of the response, since PassingInterest asked. Its change includes both the resistor and zobel across the BG. You can see the tilt, and the level change.
                  Rev5-Final:

                  Rev5-Final:


                  Thanks for looking!
                  Wolf
                  "Wolf, you shall now be known as "King of the Zip ties." -Pete00t
                  "Wolf and speakers equivalent to Picasso and 'Blue'" -dantheman
                  "He is a true ambassador for this forum and speaker DIY in general." -Ed Froste
                  "We're all in this together, so keep your stick on the ice!" - Red Green aka Steve Smith

                  *InDIYana event website*

                  Photobucket pages:
                  https://app.photobucket.com/u/wolf_teeth_speaker

                  My blog/writeups/thoughts here at PE:
                  http://techtalk.parts-express.com/blog.php?u=4102

                  Comment


                  • #69
                    Re: "Trichotomy"- an oddly non-disparate design...

                    Originally posted by greywarden View Post
                    That is one crazy lookin' speaker, man, looks good, though.

                    You can barely see it, but I'm on a 42" screen right now, lol.
                    Looks just fine in person and on my 23" screen right now! ;)

                    Thanks for the compliment though!
                    Glad you like 'em,
                    Wolf
                    "Wolf, you shall now be known as "King of the Zip ties." -Pete00t
                    "Wolf and speakers equivalent to Picasso and 'Blue'" -dantheman
                    "He is a true ambassador for this forum and speaker DIY in general." -Ed Froste
                    "We're all in this together, so keep your stick on the ice!" - Red Green aka Steve Smith

                    *InDIYana event website*

                    Photobucket pages:
                    https://app.photobucket.com/u/wolf_teeth_speaker

                    My blog/writeups/thoughts here at PE:
                    http://techtalk.parts-express.com/blog.php?u=4102

                    Comment


                    • #70
                      Re: "Trichotomy"- PICTURES!

                      Originally posted by Wolf View Post
                      ...
                      PS- can you see the peeled clear-coat?
                      Wolf, the only person who'll notice is you... nice job!

                      Comment


                      • #71
                        Re: "Trichotomy"- PICTURES!

                        Originally posted by fbov View Post
                        Wolf, the only person who'll notice is you... nice job!
                        Thanks, Frank! You may be right though...
                        We'll see if they notice next weekend at CKY-DIY.
                        Later,
                        Wolf
                        "Wolf, you shall now be known as "King of the Zip ties." -Pete00t
                        "Wolf and speakers equivalent to Picasso and 'Blue'" -dantheman
                        "He is a true ambassador for this forum and speaker DIY in general." -Ed Froste
                        "We're all in this together, so keep your stick on the ice!" - Red Green aka Steve Smith

                        *InDIYana event website*

                        Photobucket pages:
                        https://app.photobucket.com/u/wolf_teeth_speaker

                        My blog/writeups/thoughts here at PE:
                        http://techtalk.parts-express.com/blog.php?u=4102

                        Comment


                        • #72
                          Re: "Trichotomy"- an oddly non-disparate design...

                          The paint turned out great nice job once again Wolf.

                          Take it easy
                          Jay
                          "I like Brewski's threads, they always end up being hybrid beer/speaker threads based on the name of his newest creation." - Greywarden

                          Breakfast Stout - HiVi RT2 II/Aurasound NS6
                          Imperial Russian Stout - Vifa DX25/Fountek FW146/(2) Fountek FW168s - Built by Fastbike
                          Ruination 2.5 way - Vifa DX25/Fountek FW168
                          Levitation TM
                          - Vifa BC25SG15/Fountek FW168

                          Comment


                          • #73
                            Re: "Trichotomy"- an oddly non-disparate design...

                            The loudspeaker as sculpture -- very innovative design Wolf. Those can't fail to draw a lot of attention, even when they're not playing. They look great...
                            Tritrix HT:http://techtalk.parts-express.com/sh...d.php?t=222519
                            Dayton 12" Subwoofer: http://techtalk.parts-express.com/sh...d.php?t=222930
                            Overnight Sensations: http://techtalk.parts-express.com/sh...d.php?t=223751
                            Cerberus sub: http://techtalk.parts-express.com/sh...hlight=cerebus
                            Duellatis: http://techtalk.parts-express.com/sh...d.php?t=224943
                            NTN's: http://techtalk.parts-express.com/sh...d.php?t=227902

                            Comment


                            • #74
                              Re: "Trichotomy"- an oddly non-disparate design...

                              Ron- if you and Mark make it out here next Spring, you can hear them too! :D
                              Jay- Yeah, It came out okay!

                              Thanks for the comments, fellas. These were more of a challenge to build than many others I've done. I suppose 'speakers as art' really does apply here.
                              It's a shame I didn't take pictures when they covered in masking tape.....

                              Later,
                              Wolf
                              "Wolf, you shall now be known as "King of the Zip ties." -Pete00t
                              "Wolf and speakers equivalent to Picasso and 'Blue'" -dantheman
                              "He is a true ambassador for this forum and speaker DIY in general." -Ed Froste
                              "We're all in this together, so keep your stick on the ice!" - Red Green aka Steve Smith

                              *InDIYana event website*

                              Photobucket pages:
                              https://app.photobucket.com/u/wolf_teeth_speaker

                              My blog/writeups/thoughts here at PE:
                              http://techtalk.parts-express.com/blog.php?u=4102

                              Comment


                              • #75
                                Re: "Trichotomy"- an oddly non-disparate design...

                                Holy crap, bro!!! I was wondering how you were going to finish these and they look fantastic! You nailed it......That's a great mix of paints and it blends well with the baffle. Great job, as always. ....and it was a real pleasure getting to audition these before the Chicago DIY. :D



                                Quite a transformation :eek:

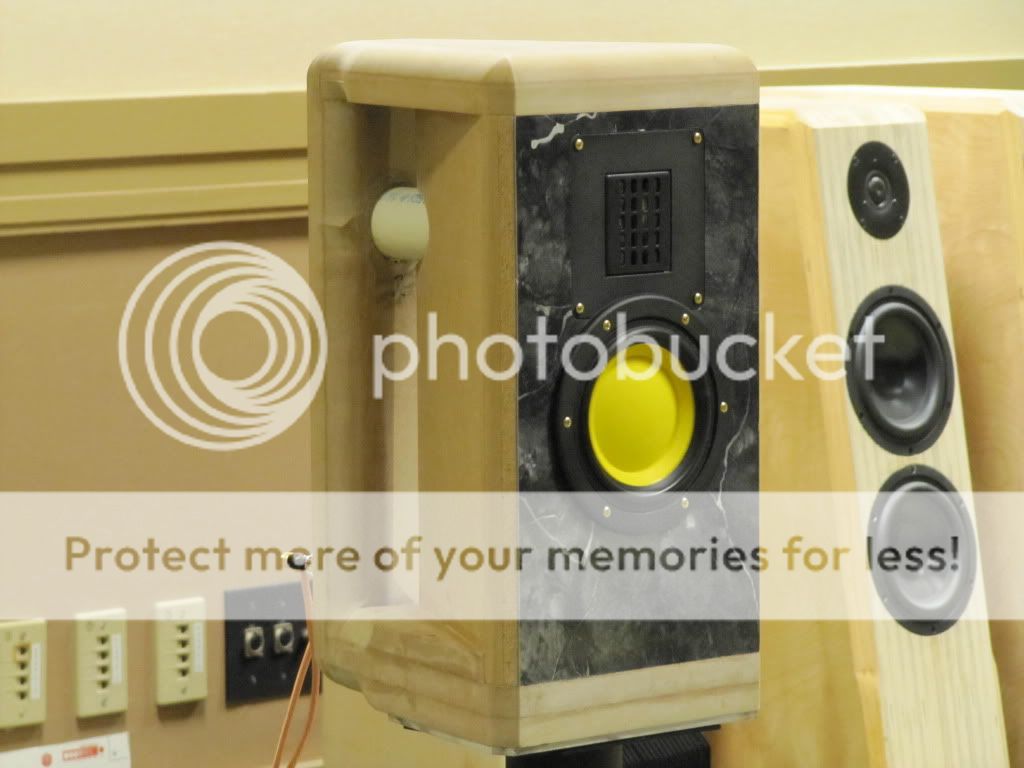

                                BEFORE-



                                AFTER-

                                Bryan K.

                                Midwest Audio Club

                                Speedster | | The Wildeman | Sean's NLA Towers | , COUGAR II and | Triton | Lithium | J-Boom | Trym MLTL | Docere MLTL
