  • Erich H
    replied
    Re: Event Horizon: a slim, wall-mounted WMTMW

    Signing up for the thread.

    These look great!

    Leave a comment:


  • KLR
    replied
    Re: Event Horizon: a slim, wall-mounted WMTMW

    Originally posted by tdv View Post
    Paul, nice project. Another option for rear mounting with no exposed screws on the front baffle, just bent up some aluminum clips out of flat stock.
    Tim
    Wow! Nice work!

    Leave a comment:


  • Paul Carmody
    replied
    Re: Event Horizon: a slim, wall-mounted WMTMW

    Chris,
    Thanks very much for that.

    I'm a bit disheartened here. I tested the T/S parameters of my ND105-4 last night (attached) and it turns out that Dayton's spec sheets weren't quite what they were cooked up to be.

    See, if you use the specs on Dayton's sheets, the ND105-4 models almost exactly like the HiVi B4N. This got me very excited, because pretty much no other driver out there models like the B4N in terms of squeezing out a big bass sound out of a small box (the only exception I know of is the Seas Excel W12CY001).

    I mean, it's not the end of the world... the ND105-4 just needs a little bit bigger box than I'd planned. It models very similarly most of the other great 4" or 4.5" woofers (Dayton RS125, Seas L12, TB W4-1720, etc) That is, it needs at least 5.5 Liters to really come to life.

    So... back to the project at-hand. I did some RTA measurements of the Event Horizons, and I'm getting an F3 in the upper 50 Hz range. Is this workable? Of course. I was just hoping for an F3 in the mid 40s. But I guess if I really want that kind of bass response, I'll have to use the Seas Excel W12 :rolleyes: or do a HiVi version.
    Attached Files

    Leave a comment:


  • Chris Roemer
    replied
    Re: Event Horizon: a slim, wall-mounted WMTMW

    Originally posted by Paul Carmody View Post
    Dave,
    I'd be glad to share some measurements with you. For my projects, I tend to take measurements from a single point on the listening axis, but I can easily go back and take some more of just that driver.

    What's a JD box?

    By the way, did you measure the T/S of the ND105-4? Did anyone? Usually, Dayton's spec sheets are pretty accurate, but I never verified it with this driver myself.
    try

    http://techtalk.parts-express.com/sh...-4#post1705829

    Leave a comment:


  • tdv
    replied
    Re: Event Horizon: a slim, wall-mounted WMTMW

    Paul, nice project. Another option for rear mounting with no exposed screws on the front baffle, just bent up some aluminum clips out of flat stock.
    Tim

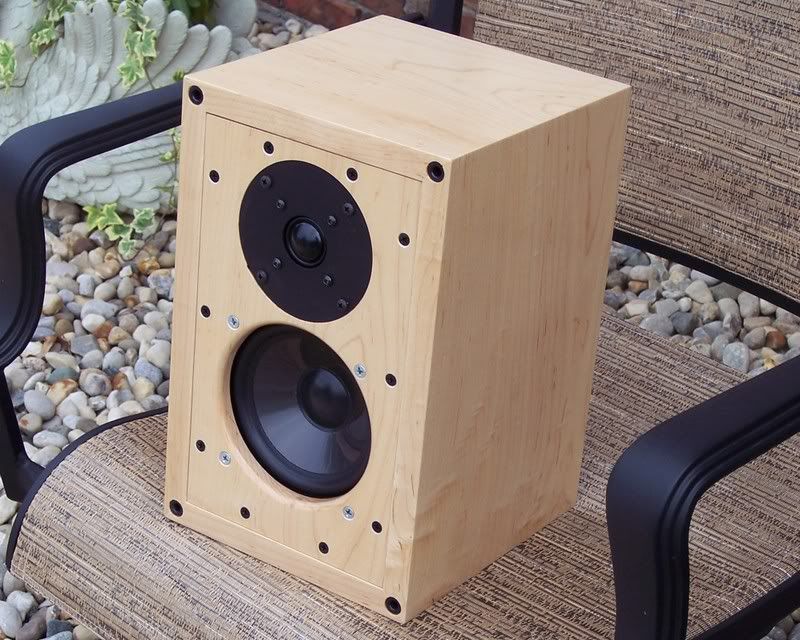

    Attached Files

    Leave a comment:


  • johnnyrichards
    replied
    Re: Event Horizon: a slim, wall-mounted WMTMW

    Paul, this looks like another project that is going to get you some serious email

    Well done, so far. Like the concept, like the execution. Sometimes I wish I could talk my wife into letting me go in/on-wall but she likes big speakers:D

    Leave a comment:


  • Paul Carmody
    replied
    Re: Event Horizon: a slim, wall-mounted WMTMW

    Originally posted by DDF View Post
    Paul, looks like a fun system! Do you have ND105-4 measurements (on/off axis) you can share? Looking to compare to some results I took in a JD box.
    Dave,
    I'd be glad to share some measurements with you. For my projects, I tend to take measurements from a single point on the listening axis, but I can easily go back and take some more of just that driver.

    What's a JD box?

    By the way, did you measure the T/S of the ND105-4? Did anyone? Usually, Dayton's spec sheets are pretty accurate, but I never verified it with this driver myself.

    Leave a comment:


  • michiganpat
    replied
    Re: Event Horizon: a slim, wall-mounted WMTMW

    dumb thought, but if you need/want a little more volume, instead of perpendicular sides, could you make the cabinet a trapezoid, with like 15 degree sides? the 5" in front (with a 6" wide baffle as you show) would flare out to 7.3" in the back, and would give you another 50% in volume.

    conversely, if you could do the same idea and make them a little shallower to get the volume out of it. (say, 3" internal, with 25 or 30 degree sides)

    Leave a comment:


  • Jeff B.
    replied
    Re: Event Horizon: a slim, wall-mounted WMTMW

    Originally posted by Paul Carmody View Post
    Coming soon... to a living room in my house ;)



    It uses the Dayton ND105-4 + Dayton ND90 + Dayton ND20FB, all rear-mounted. (Yes I finally figured out a way to take the ugly out of those damned pincushion frames. More on that in a bit. For now, here's a teaser)


    This project was an idea generated by my wife. She wanted something slim and wall-mounted for our living room. Believe it or not, she wanted lots of drivers--a mini line array, if possible!
    This created a laundry list of challenges:
    1. The enclosure had to be small, and maximize its use of space. Anything wider and deeper than 6" was too much. But you can't get too long, either, or it just looks silly. I decided no longer than 32". So, that limits our total box volume to something around 11 Liters, max.
    2. There are very few drivers out there that will put out any sort of respectable bass in 11 Liters. A 5" woofer is way too much; a single 5" driver needs that much space on its own to get decent bass. 3" woofers might work, if you get enough of them. But even the venerable Aura-derived NS3 (Dayton ND90) could only get down to the mid-50 Hz range. What's left? 4" drivers; and even those are a push, though there are a few that can get respectable bass.
    3. Everything has to be as lightweight as possible. 3/4" MDF creates very heavy cabinets--great for floorstanders, not so good for wall-hanging. Plus, that thick stock eats up valuable interior space: so 1/2" MDF it is. As for drivers, if I could find neodymium motors, that'd be a plus, since they're lighter in weight (this was before the neodymium fiasco we are now witnessing)

    One driver I thought would work would be the Dayton ND105-4 and/or the ND90. But I had to find a way to hide those ugly frames. I searched around this board and the internet to see if any DIYers had found ways to mask it, and finally found someone who had the right idea (I apologize that I don't remember who it was. But I remember he had converted an old Minimus-7 to use an ND90 and cleverly rear-mounted the driver with just the right amount of recess so it didn't look silly.) And that's just what I did. I used the ND20FB to complete the ensemble. (Oh, and I just freehand-routered the bits around the nuts--a step which ended up being unnecessary)





    .

    You have seen these before, haven't you?




    I love this approach to dealing with those odd shaped frames.

    I also love the name - Event Horizon. Nice job.

    Leave a comment:


  • brianbunge
    replied
    Re: Event Horizon: a slim, wall-mounted WMTMW

    Originally posted by Paul Carmody View Post
    Well, OK... I honestly hadn't thought of that situation. :eek: My recommendation would be to make the enclosures longer to give the woofers more volume. In this cabinet, the ND105-4 can do some bass, but I can tell they'd like to be set free to dig nice and deep. :D
    How about making the cabinet 50"H and just add 2 more ND105-4's per side? ;)

    Leave a comment:


  • moosespeaker
    replied
    Re: Event Horizon: a slim, wall-mounted WMTMW

    Somewhat similar to a design by Dave Thomas I found when I entered this mad world of DIY. The design was not widely discussed. It is a MMMTTMMM sealed configuration. Following Zaph's comments regarding the B3N I XO to the subs at 150 Hz. Obviously, your design digs much lower. As seen in the photographs, I had to wall mount the L/R speakers.

    The L/R are simple 3/4 inch MDF boxes 5W x 9D x 35 H. Added side bracing, lined with egg crate foam and light stuffed. Box is over sized so added wood blocks to reduce volume.

    The speakers has 6 HiVi B3N's and 2 Dayton neos in hand routed recesses on baffle back to bring the tweets flush with front of baffle.

    Center took a little more work with the angled baffle being the challenge for mounting and sealing (sealed enclosure).



    Leave a comment:


  • Wembley2000
    replied
    Re: Event Horizon: a slim, wall-mounted WMTMW

    Very nice speaker! Would it be a deal breaker to go ahead and flush mount the drivers, if anything other than me being lazy?

    BTW, I love my overnight sensations.

    Thanks for your contributions to all of us.

    Wem

    Leave a comment:


  • DDF
    replied
    Re: Event Horizon: a slim, wall-mounted WMTMW

    Paul, looks like a fun system! Do you have ND105-4 measurements (on/off axis) you can share? Looking to compare to some results I took in a JD box.


    Thanks,

    Dave

    Leave a comment:


  • Paul Carmody
    replied
    Re: Event Horizon: a slim, wall-mounted WMTMW

    Originally posted by brianbunge View Post
    Are you making the back (or baffle) removable so that you can install/remove the drivers?
    The front baffles will be removable. I just haven't drilled the holes and installed the T-nuts yet. (I've just had them clamped in place) It might be possible to do a removable back, but that mid chamber might be a bit cramped to fit your hand and a wrench.

    I wonder if they'd look odd on either side of a 92" screen...
    Well, OK... I honestly hadn't thought of that situation. :eek: My recommendation would be to make the enclosures longer to give the woofers more volume. In this cabinet, the ND105-4 can do some bass, but I can tell they'd like to be set free to dig nice and deep. :D

    Originally posted by lunchmoney View Post
    Any concern that the mdf is very thin where the drivers are mounted?
    I was concerned about that initially. However, after my own rough handling of the baffles, and playing lots of music through them, I think it's OK. I've created my share of cabinets with weak spots, so I've learned to scope out those kind of problems. With larger drivers (especially with ferrite magnets), the thinness of the baffle would be a genuine concern, and probably easy to notice as well. But as it is, holding the baffle "fully loaded" with drivers and ports weighs very little.

    Leave a comment:


  • lunchmoney
    replied
    Re: Event Horizon: a slim, wall-mounted WMTMW

    Any concern that the mdf is very thin where the drivers are mounted?

    Leave a comment:
