    Re: Anyone interested in a 10 x 17 baffle with W.G.

    [QUOTE=critofur;1776048]
    It seems that the interface (the small/back end of the waveguide) between the waveguide & tweeter is quite important and I'm not sure what the criteria are for a good design.... But, it seems likely that given something to evaluate you might well suggest improved criteria and configurations.

    I'm happy to take measurements, maybe willing to try other tweeters if requested, and, there are a few different woofers I have in mind/inventory that I would be happy to design a crossover for with the wg/tweeter combination:... that's fine do what you think makes sense, modify what I send to suit.


    If you sent me a waveguide turned from a porous material...seal it as you find necessary. There is no need to return it.

    Perhaps we can start with what I have on hand and can send in a day or so. Given your address, I'll put one in the mail this week. You can look it over and decide what you would suggest to improve it. It's a place to start and I'd be happy to consider suggestions for new turnings.

    I don't know enough about the engineering/abstract criteria, but can presently, easily turn round waveguides producing a cross section that is an arc.

    I am also a bit closer to waveguides milled to more exotic configurations on the CNC machine. I should know later this week if the tool path I generated for an elongated waveguide succeeds. If so, this will open up a much richer field of possibilities.

    I look forward to your response and suggestions. tna

    Comment

    • #77
      Re: Anyone interested in a 10 x 17 baffle with W.G.

      I am also a bit closer to waveguides milled to more exotic configurations on the CNC machine. I should know later this week if the tool path I generated for an elongated waveguide succeeds. If so, this will open up a much richer field of possibilities.

      thats great news!
      " To me, the soundstage presentation is more about phase and distortion and less about size. However, when you talk about bass extension, there's no replacement for displacement". Tyger23. 4.2015

      Quote Originally Posted by hongrn. Oct 2014
      Do you realize that being an American is like winning the biggest jackpot ever??

      http://www.midwestaudioclub.com/spot...owell-simpson/
      http://s413.photobucket.com/albums/pp216/arlis/

      Comment

      • #78
        Re: Anyone interested in a 10 x 17 baffle with W.G.

        Hey guys. Sorry for the horrible delay. Petes been trying to cover for me. I don't need to get too much into it, but I've just made it back from Arizona. I lost my mom, very unexpectedly, and its been tough.
        I plan on bringing baffles with wave guides to the Chicago DIY. Who wants a set, and what size baffle? I was planning on a standard 10x17, but if someone needs something special, just drop me a note. I'll have to charge a little more for larger sizes. I am giving a set of 10x17s away as a door prize to make up for all the delay. Its gonna be a great show!!!
        The Past is history. The Future is a mystery. Today is a gift; that's why its called the Present. (Grand Master Oogway, Kung Fu Panda)

        Comment

        • #79
          Re: Anyone interested in a 10 x 17 baffle with W.G.

          That's very sad.
          " To me, the soundstage presentation is more about phase and distortion and less about size. However, when you talk about bass extension, there's no replacement for displacement". Tyger23. 4.2015

          Quote Originally Posted by hongrn. Oct 2014
          Do you realize that being an American is like winning the biggest jackpot ever??

          http://www.midwestaudioclub.com/spot...owell-simpson/
          http://s413.photobucket.com/albums/pp216/arlis/

          Comment

          • #80
            Re: Anyone interested in a 10 x 17 baffle with W.G.

            D,
            Sometimes words aren't enough but I'm sorry for your loss. If I'm not mistaken DIY Chicago is this weekend, I hope that it is a welcome break for you.

            I sent a PM, when you get a chance please respond and we can go from there. As we have already discussed, I'm in no hurry due to my situation.
            Thanks,
            Aaron

            Comment

            • #81
              Re: Anyone interested in a 10 x 17 baffle with W.G.

              Ed
              When you get caught up with things I would take a pair 11" x 22".

              Sorry about the unexpected loss of your Mother. Hope time is a source of healing for you and your family.
              Tim

              Comment

              • #82
                Re: Anyone interested in a 10 x 17 baffle with W.G.

                Ed
                Any progress on the waveguide?
                Tim

                Comment

                • #83
                  Re: Anyone interested in a 10 x 17 baffle with W.G.

                  I'll jump in for Ed here . . .

                  Currently, he's up at the Rosenquist homestead in northern Michigan, trying to slay a Bambi or two.

                  I'm pretty sure he was going to be making a bunch of baffles when he got back later this week.
                  R = h/(2*pi*m*c) and don't you forget it! || Periodic Table as redrawn by Marshall Freerks and Ignatius Schumacher || King Crimson Radio
                  Byzantium Project & Build Thread || MiniByzy Build Thread || 3 x Peerless 850439 HDS 3-way || 8" 2-way - RS28A/B&C8BG51
                  95% of Climate Models Agree: The Observations Must be Wrong
                  "Gravitational systems are the ashes of prior electrical systems.". - Hannes Alfven, Nobel Laureate, Plasma physicist.

                  Comment

                  • #84
                    Re: Anyone interested in a 10 x 17 baffle with W.G.

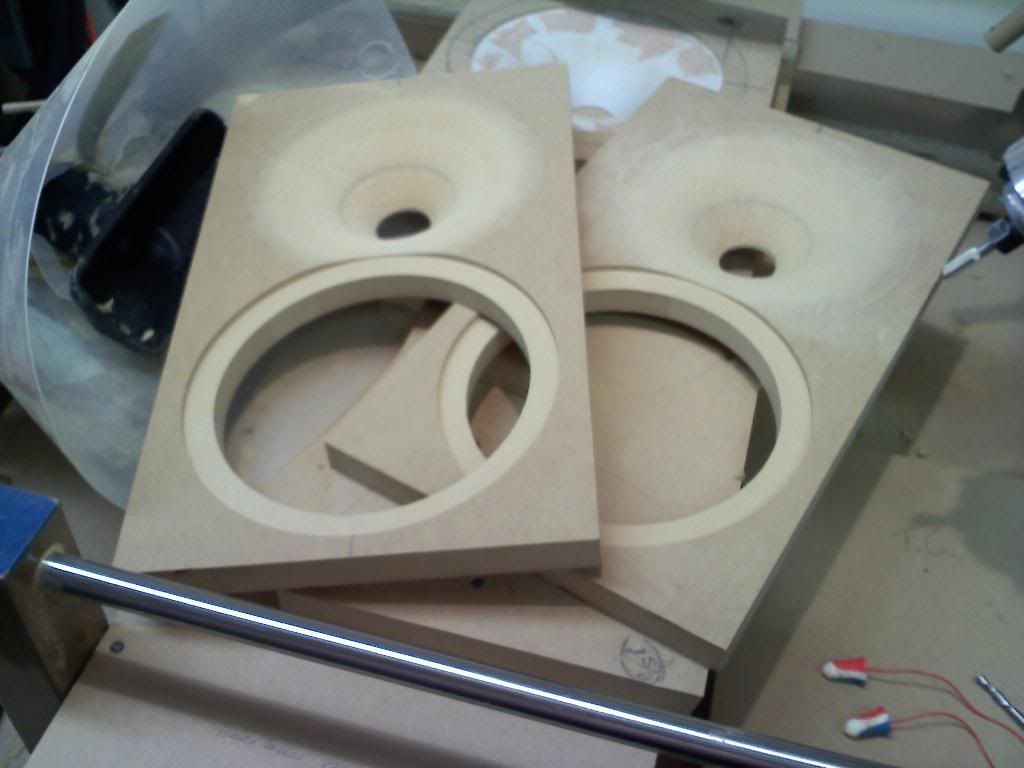

                    Ed's started turning out some baffles. Sent me this picture of Jonasz set cut for the SEAS W22.

                    R = h/(2*pi*m*c) and don't you forget it! || Periodic Table as redrawn by Marshall Freerks and Ignatius Schumacher || King Crimson Radio
                    Byzantium Project & Build Thread || MiniByzy Build Thread || 3 x Peerless 850439 HDS 3-way || 8" 2-way - RS28A/B&C8BG51
                    95% of Climate Models Agree: The Observations Must be Wrong
                    "Gravitational systems are the ashes of prior electrical systems.". - Hannes Alfven, Nobel Laureate, Plasma physicist.

                    Comment

                    • #85
                      Re: Anyone interested in a 10 x 17 baffle with W.G.

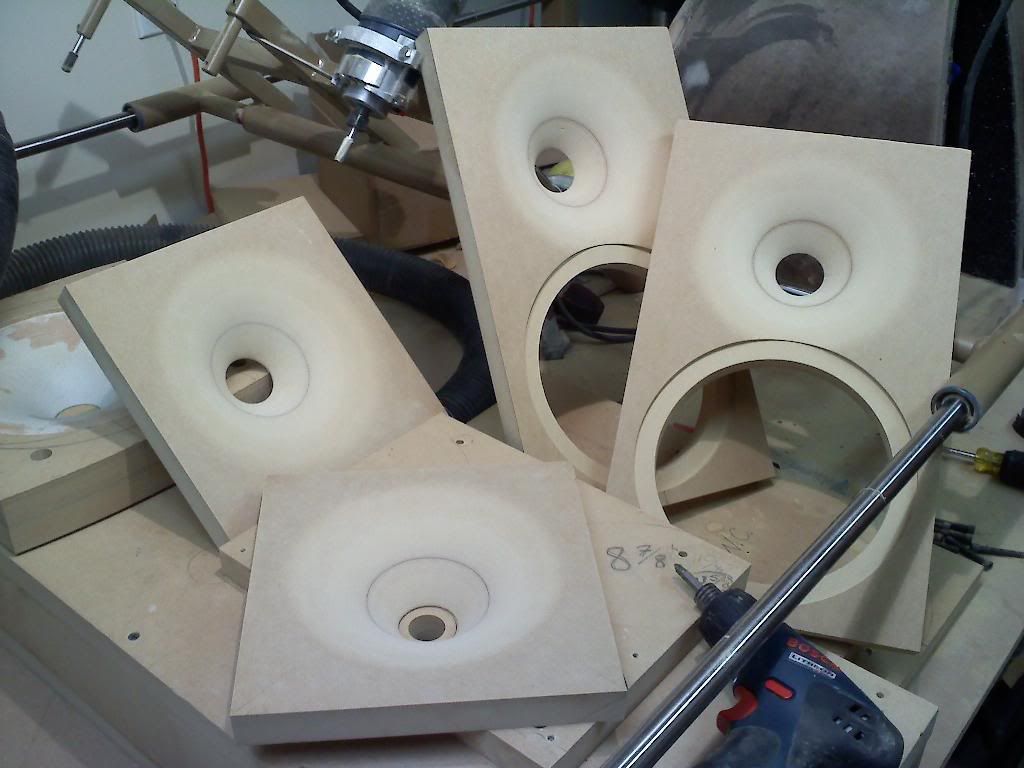

                      Another couple ready for a lucky enthusiast.
