Tang Band W6-1721 Klippel Test Results

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Tang Band W6-1721 Klippel Test Results

    Full report here:
    http://www.diymobileaudio.com/forum/...l-results.html

    Originally posted by bikinpunk View Post
    Full report attached via PDF.

    Driver:
    Tang Band W6-1721

    Tang Band W6-1721 6-1/2" Underhung Midbass Driver 264-874

    Photo:
    (stock)

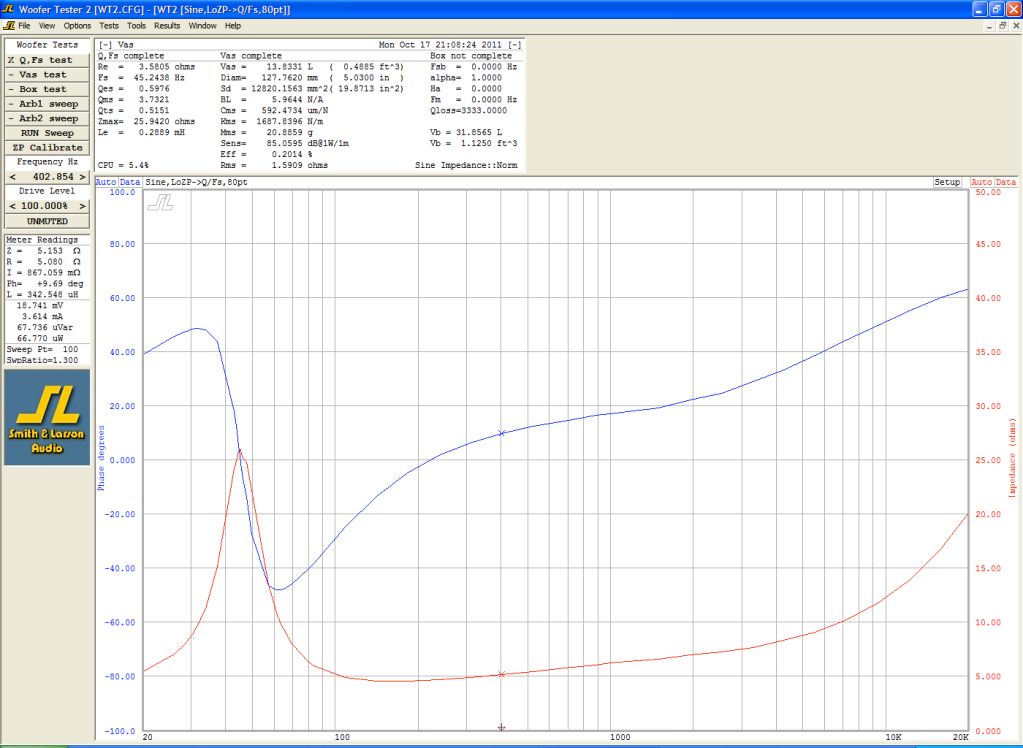

    Impedance and T/S Parameters:
    • Re = 3.5805 ohms
    • Fs = 45.2438 Hz
    • Zmax = 25.9420 ohms
    • Qes = 0.5976
    • Qms = 3.7321
    • Qts = 0.5151
    • Le = 0.2889 mH (at 1 kHz)
    • Diam = 127.7620 mm ( 5.0300 in )
    • Sd =12820.1563 mm^2( 19.8713 in^2)
    • Vas = 13.8331 L ( 0.4885 ft^3)
    • BL = 5.9644 N/A
    • Mms = 20.8859 g
    • Cms = 592.4734 uM/N
    • Kms = 1687.8396 N/M
    • Rms = 1.5909 R mechanical
    • Efficiency = 0.2014 %
    • Sensitivity= 85.0595 dB @1W/1m
    • Sensitivity= 88.5510 dB @2.83Vrms/1m



    Klippel 10% Distortion based Xmax:
    • X Bl @ Bl min=82% >7.7 mm *
    • X C @ C min=75% 4.0 mm


    * I pounded on this speaker (took the protection parameter on Cmin as low as I could @ 20%) and could not get Bl to resolve at all. Regardless, you're suspension limited but I still like to resolve all the parameters I can when possible.

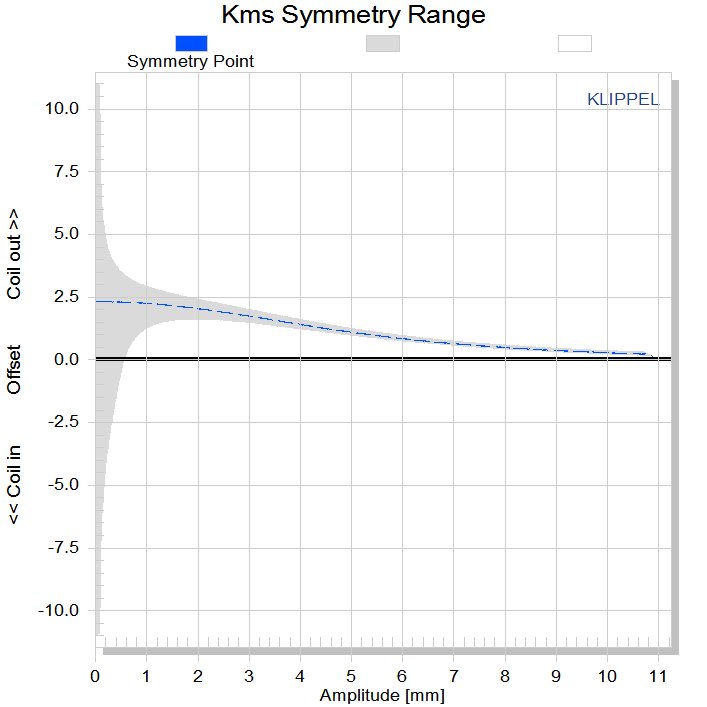

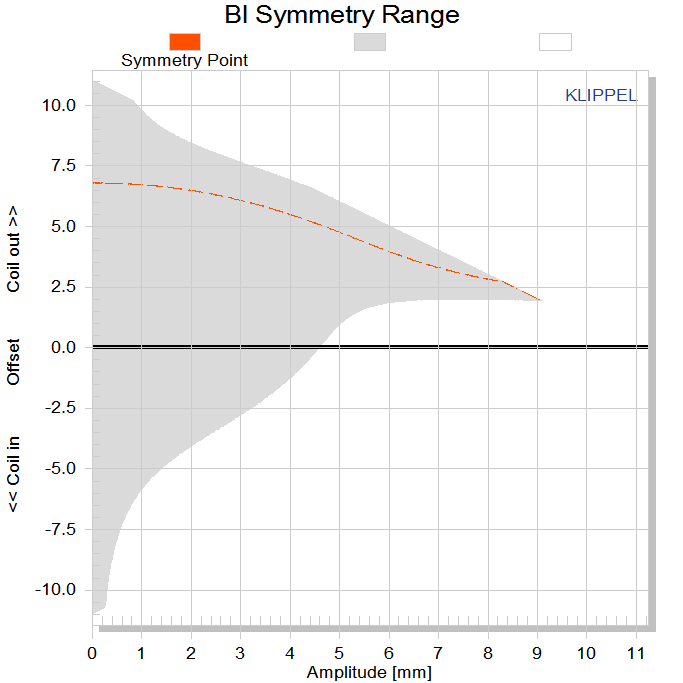

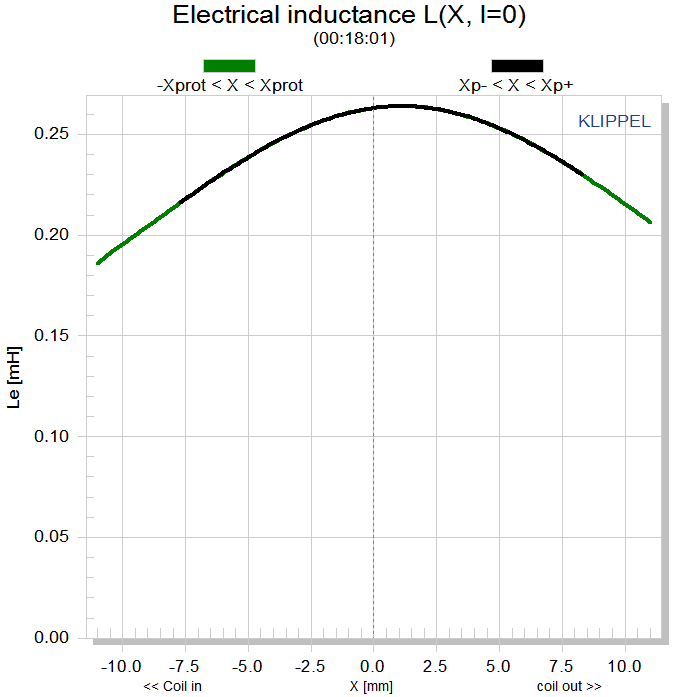

    Sample Klippel Data:










    ErinsAudioCorner.com

  • #2
    Re: Tang Band W6-1721 Klippel Test Results

    Someone tell me what this means. As in, good or bad.

    Comment


    • #3
      Re: Tang Band W6-1721 Klippel Test Results

      How about "there's room for improvement."

      Dan
      "guitar polygamy is a satisfying and socially acceptable alternative lifestyle."~Tony Woolley
      http://dtmblabber.blogspot.com/
      http://soundcloud.com/dantheman-10

      Comment


      • #4
        Re: Tang Band W6-1721 Klippel Test Results

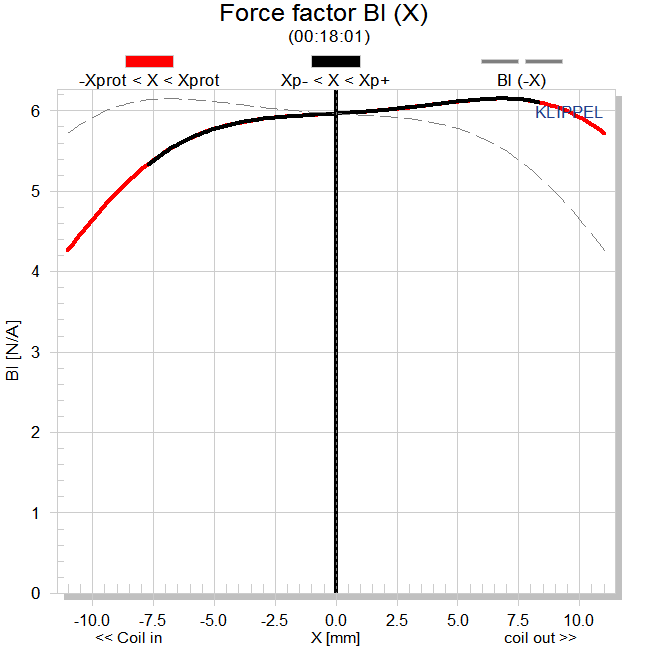

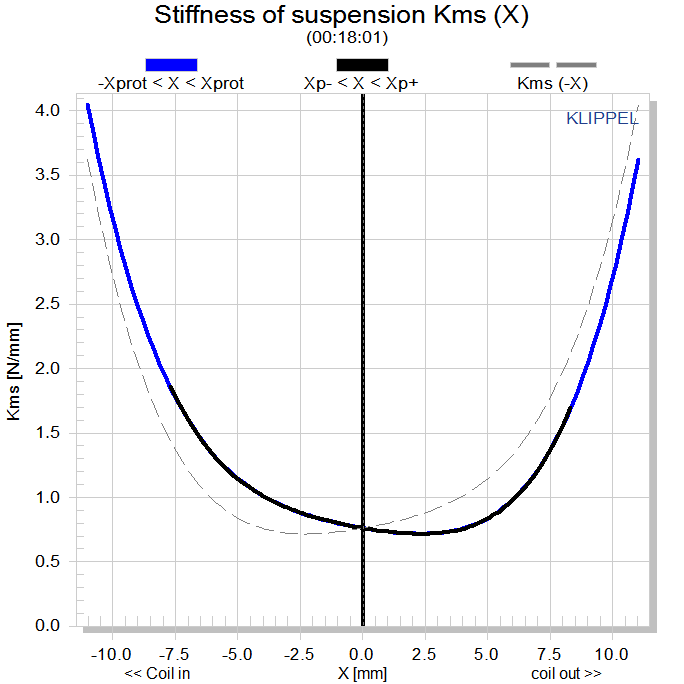

        Are the Bl and Kms graphs supposed to be on the 0 axis? Because they aren't. Also the better ScanSpeaks and other drivers that people seem to praise all seem to be closer to the 0 axis.

        Comment


        • #5
          Re: Tang Band W6-1721 Klippel Test Results

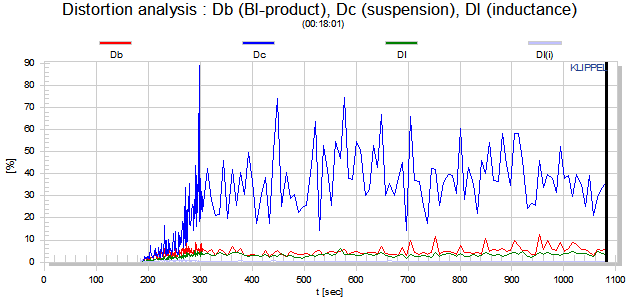

          Why is Db so insanely low compared to Dc?

          Comment


          • #6
            Re: Tang Band W6-1721 Klippel Test Results

            The suspension is not as good.

            Dan
            "guitar polygamy is a satisfying and socially acceptable alternative lifestyle."~Tony Woolley
            http://dtmblabber.blogspot.com/
            http://soundcloud.com/dantheman-10

            Comment


            • #7
              Re: Tang Band W6-1721 Klippel Test Results

              Originally posted by 454Casull View Post
              Why is Db so insanely low compared to Dc?
              look at the xmax figures. cmin is pretty low compared to Bl (which didn't even resolve fully).
              ErinsAudioCorner.com

              Comment
